Installation Instructions for Stator Cover Gasket for XV250 V Twin 250 and V Star 250

Product Overview:

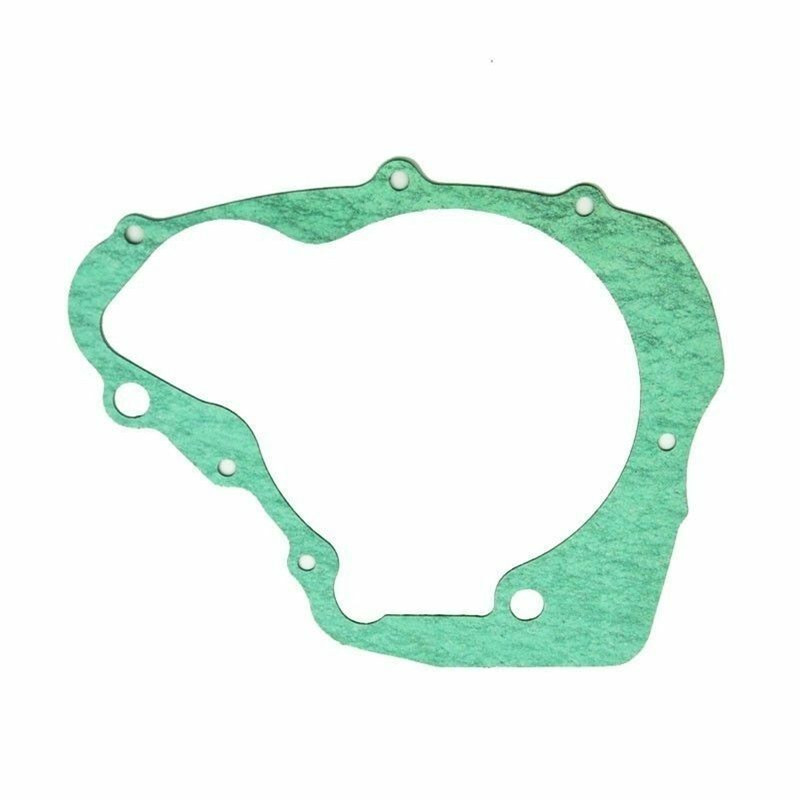

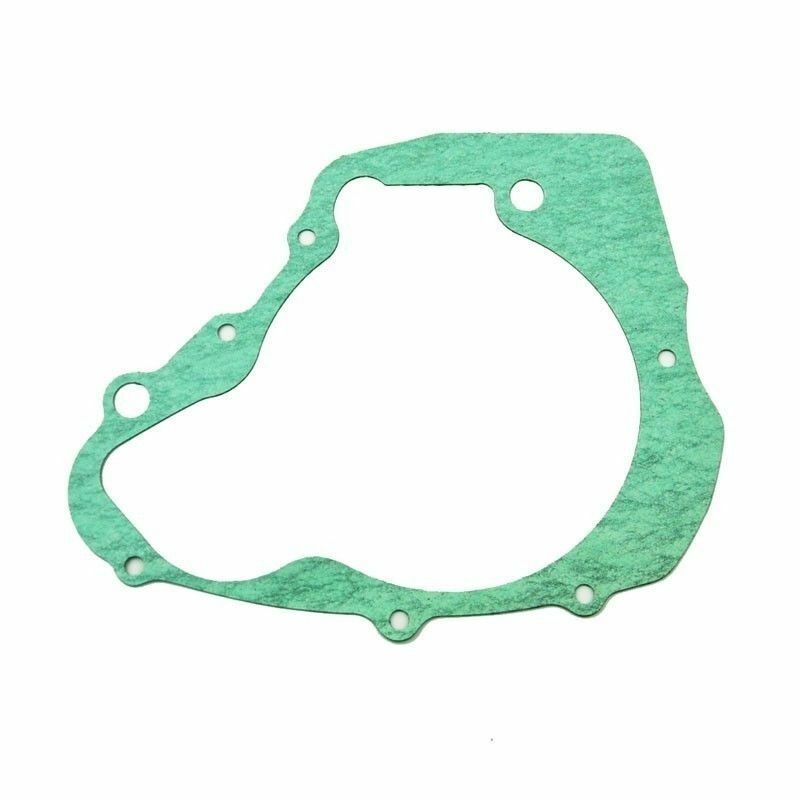

The Stator Cover Gasket is designed specifically for the XV250 V Twin 250 (1988-2020) and V Star 250 (2010-2020). Made from durable materials, this gasket effectively prevents oil leaks and contamination, ensuring efficient engine performance and longevity.

Tools Required:

1. Socket Set: Including 8mm and 10mm sockets for removing the stator cover bolts.
2. Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.
3. Screwdriver Set: A flathead and Phillips screwdriver for any necessary adjustments.
4. Pliers: For removing any stubborn clips or components.
5. Rags or Cloth: To clean the surface area before and after installation.
6. Gasket Scraper or Razor Blade: For removing the old gasket (if applicable).
7. Engine Oil (Optional): To lubricate the new gasket slightly for easier installation.

Installation Steps:

1. Prepare the Bike:

   • Ensure the motorcycle is on a stable surface and the engine is completely cool before starting.

2. Remove the Stator Cover:

   • Use the socket set to carefully remove the bolts holding the stator cover in place. Keep track of the bolts.
   • Gently pry off the stator cover, taking care not to damage the engine surface.

3. Clean the Surface:

   • Use rags or cloth to clean both the engine surface and the back of the stator cover. Remove any remnants of the old gasket using a gasket scraper or razor blade.

4. Install the New Gasket:

   • Place the new stator cover gasket onto the engine surface, ensuring it fits snugly and aligns with all bolt holes.

5. Reattach the Stator Cover:

   • Position the stator cover over the gasket and align it with the bolt holes.
   • Hand-tighten the bolts initially, then use the torque wrench to tighten them to the manufacturer's specified torque.

6. Final Checks:

   • Inspect the installation to ensure everything is aligned correctly.
   • Wipe away any excess oil or debris to maintain a clean working environment.

7. Test the Engine:

   • Start the engine and inspect for any oil leaks around the gasket area.

With these steps, you can easily replace the stator cover gasket, ensuring your XV250 V Twin 250 or V Star 250 runs efficiently and effectively. Enjoy your ride!
