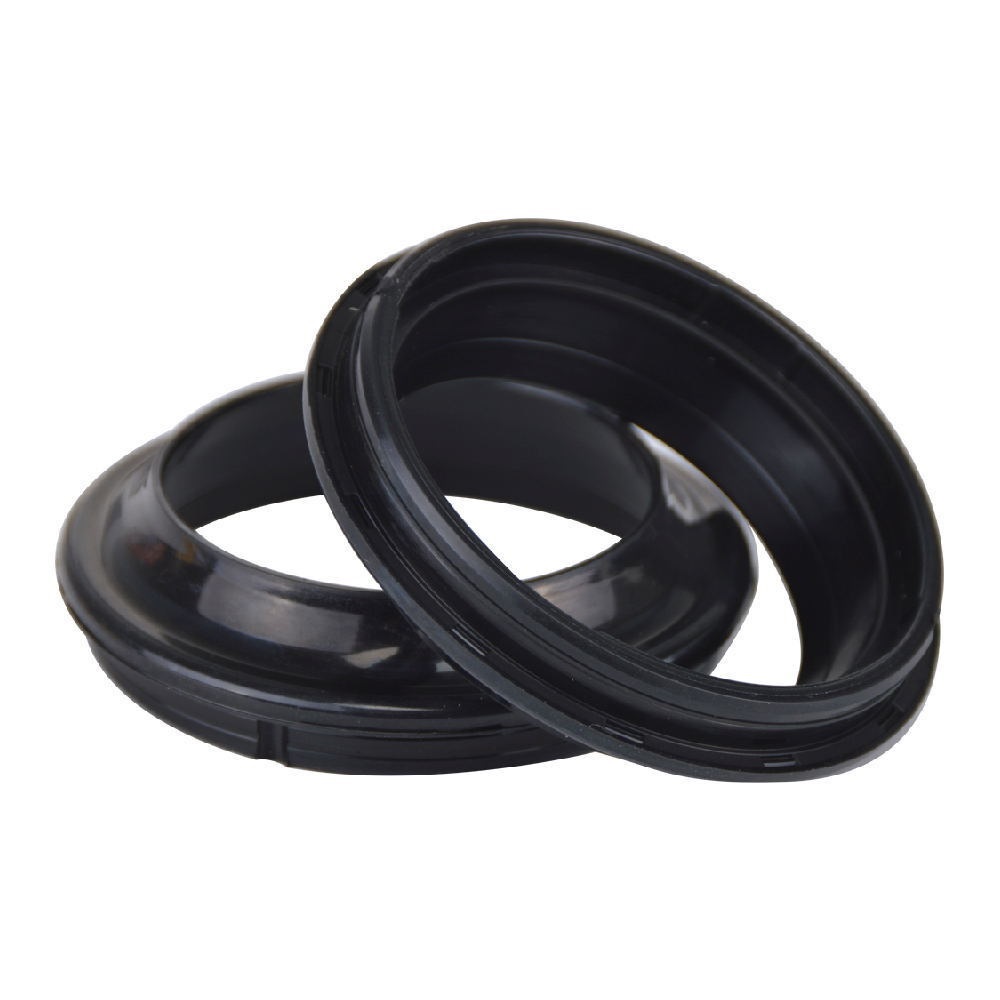

Product Installation Instructions for Front Fork Suspension Damper Oil Seal Dust Cover 45x57x11

Compatible Models: T D 955 I (1999-2006) and 955i Centenary Edition

Tools Needed:

1. 10mm Socket Wrench or Ratchet
2. Screwdriver Set (Philips and Flathead)
3. Pliers
4. Torque Wrench
   5.Clean Cloth
5. Replacement Seal (Dust Cover 45x57x11)
6. Silicone Grease (optional)
7. Adjustable Wrench

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a level surface and securely supported using a motorcycle stand.
   • Gather all necessary tools and replacement parts.

2. Remove Front Wheel:

   • Use a 10mm socket wrench to remove the front wheel axle bolts.
   • Gently slide the axle out and remove the front wheel.

3. Remove Existing Dust Cover:

   • Locate the existing dust cover on the front fork.
   • Use pliers to carefully pull it off.
   • Clean the area around the fork stanchion using a clean cloth to remove any dirt or debris.

4. Install New Dust Cover:

   • If desired, apply a thin layer of silicone grease to the inner surface of the new dust cover for added protection.
   • Align the new dust cover (45x57x11) with the fork and gently press it into place until fully seated.

5. Reassemble Front Fork:

   • Reinstall any components that were removed, ensuring they are aligned correctly.
   • Replace the front wheel, making sure it is properly seated and secured.
   • Tighten the axle bolts to the manufacturer’s specified torque using a torque wrench.

6. Final Check:

   • Inspect the installation to ensure the dust cover is seated correctly.
   • Spin the wheel to ensure it rotates freely and check for any unusual sounds.

7. Test Ride:

   • Take your motorcycle for a short test ride to ensure everything is functioning correctly.
   • After the test ride, double-check the dust cover and axle bolts to ensure they are secure.

Important Notes:

• Always refer to your motorcycle's service manual for specific instructions and torque specifications.
• If you're unsure about any step, consult a professional mechanic for assistance.
• Regularly check the dust cover and front suspension components for wear to ensure optimal performance.

By following these instructions, you can successfully replace the Front Fork Suspension Damper Oil Seal Dust Cover and enhance the performance and longevity of your motorcycle. Enjoy your ride!
