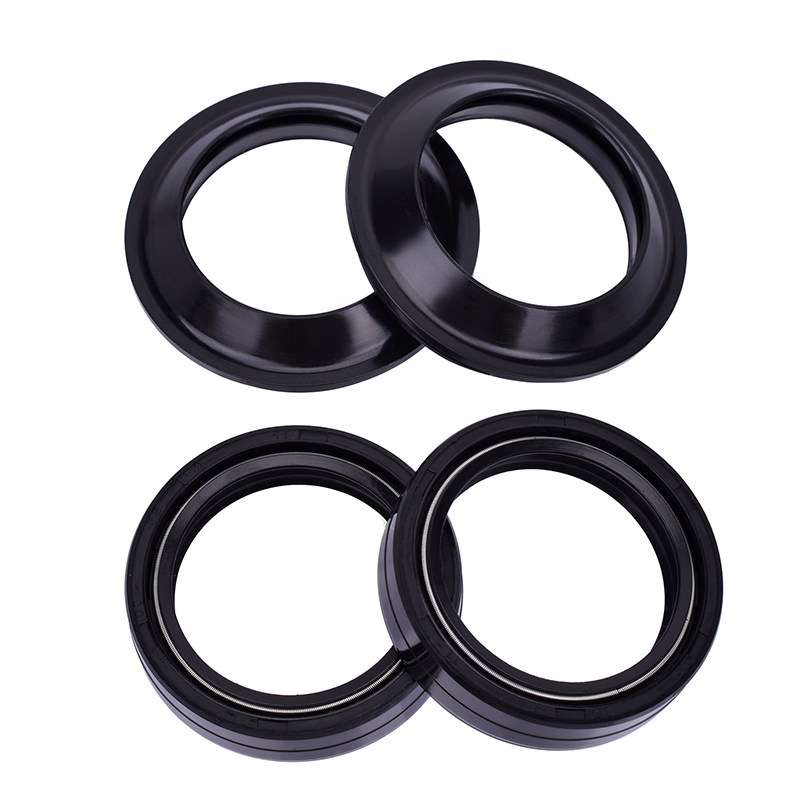

Installation Instructions for 38x50x11 Front Fork Suspension Oil Seal

Tools Required:

1. Socket wrench set
2. Screwdriver set (flathead and Phillips)
3. Pliers
4. Torque wrench
5. Soft mallet or hammer (with a soft material head)
   6.Clean cloth or rag
6. Lubricant (for assembly)
7. Measuring tool (caliper or ruler)

Installation Steps:

1. Preparation:

   • Ensure the vehicle is on a stable and level surface.
   • Use a clean cloth to wipe any dirt or debris from the front fork assembly.

2. Remove the Front Wheel:

   • Using the socket wrench, loosen and remove the axle nut.
   • Carefully slide the front wheel out of the fork.

3. Access the Forks:

   • Depending on your model, you may need to remove the fender and calipers to access the fork assembly.
   • Use the screwdriver and socket wrench as needed to remove these components.

4. Remove the Old Oil Seal:

   • Carefully pry out the old oil seal using a flathead screwdriver or pliers.
   • Be cautious not to scratch or damage the fork tube during this process.

5. Install the New Oil Seal:

   • Before installation, apply a light coating of lubricant to the new oil seal.
   • Align the new seal with the fork tube and gently tap it into place using a soft mallet. Ensure it is seated evenly and securely.

6. Reassemble the Forks:

   • Reinstall any components you removed (fender, calipers) using the appropriate tools. Ensure all bolts are tightened to the manufacturer's specifications with a torque wrench.

7. Reinstall the Front Wheel:

   • Slide the front wheel back into the fork.
   • Securely tighten the axle nut using the socket wrench.

8. Final Check:

   • Make sure everything is properly installed and all components are tight.
   • Check for any leaks around the new oil seal.

9. Test Ride:

   • Take the vehicle for a short test ride to ensure everything is functioning properly.

Note: Always consult your vehicle's service manual for specific instructions related to your model and make adjustments as necessary.
