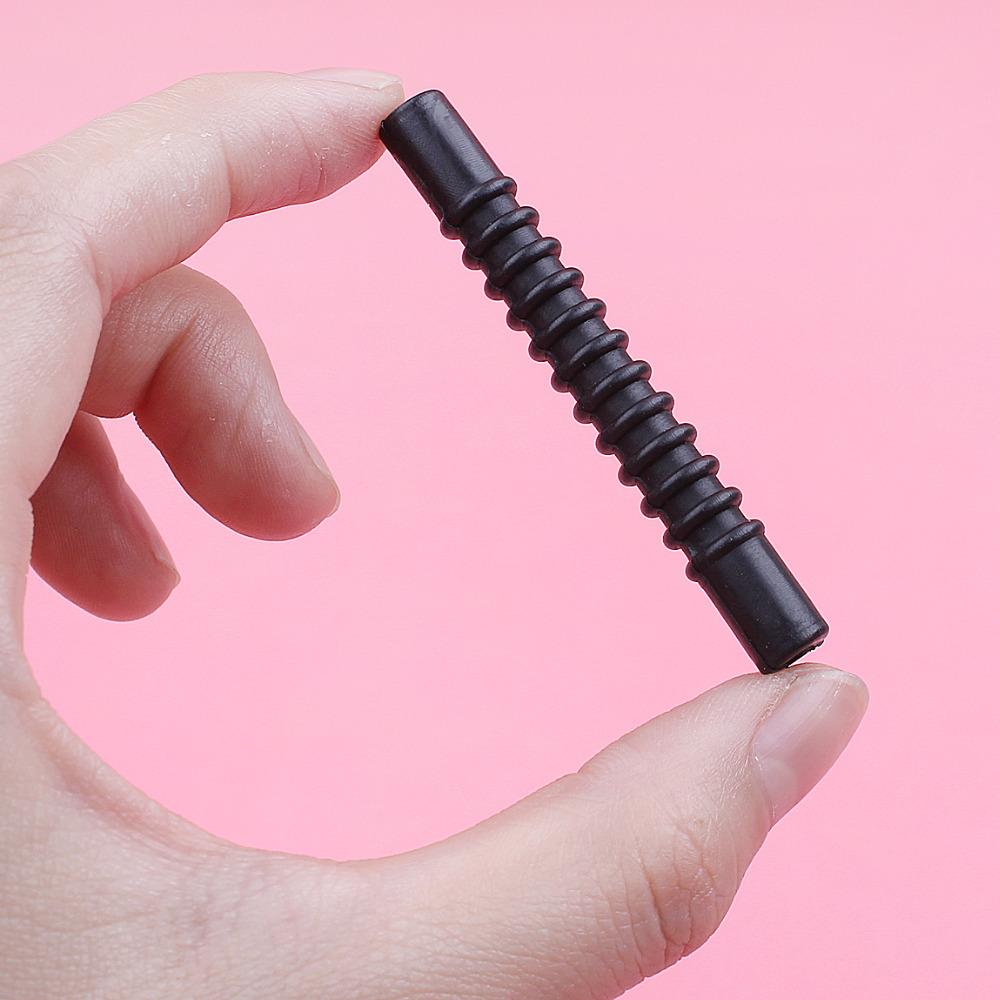

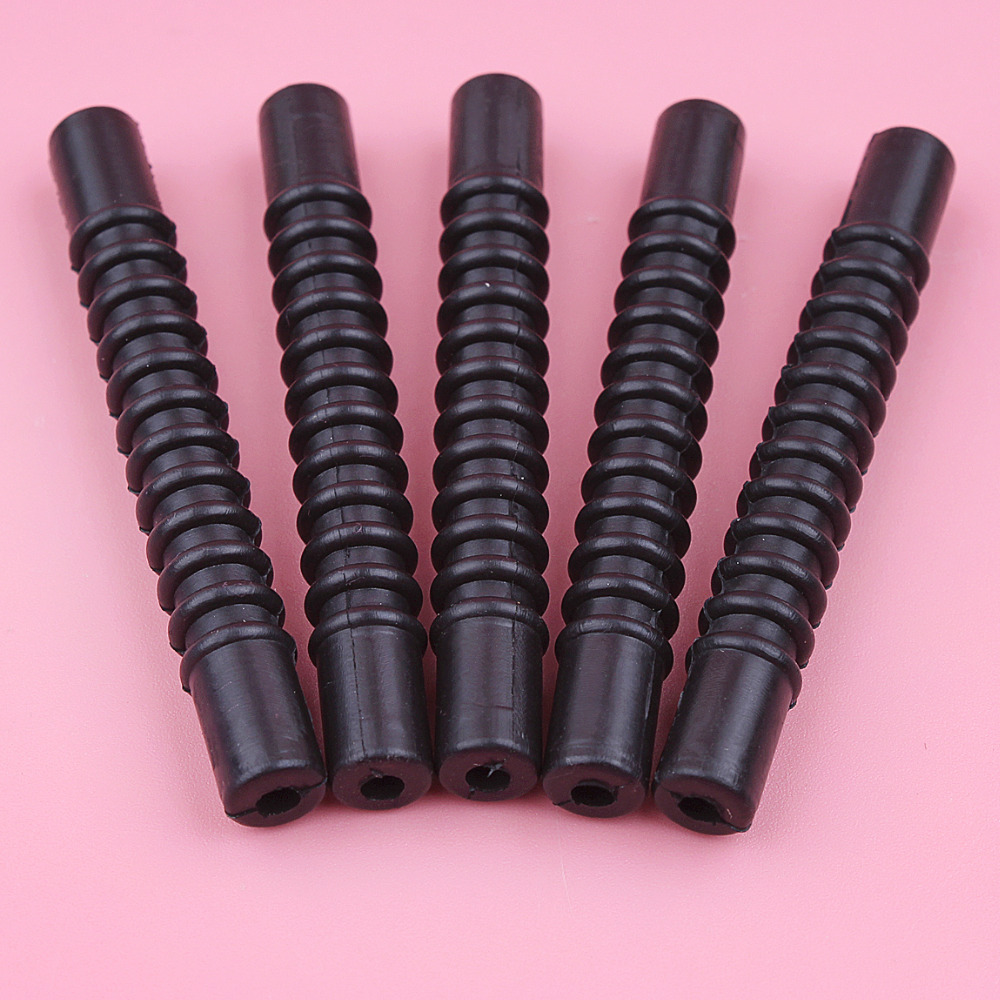

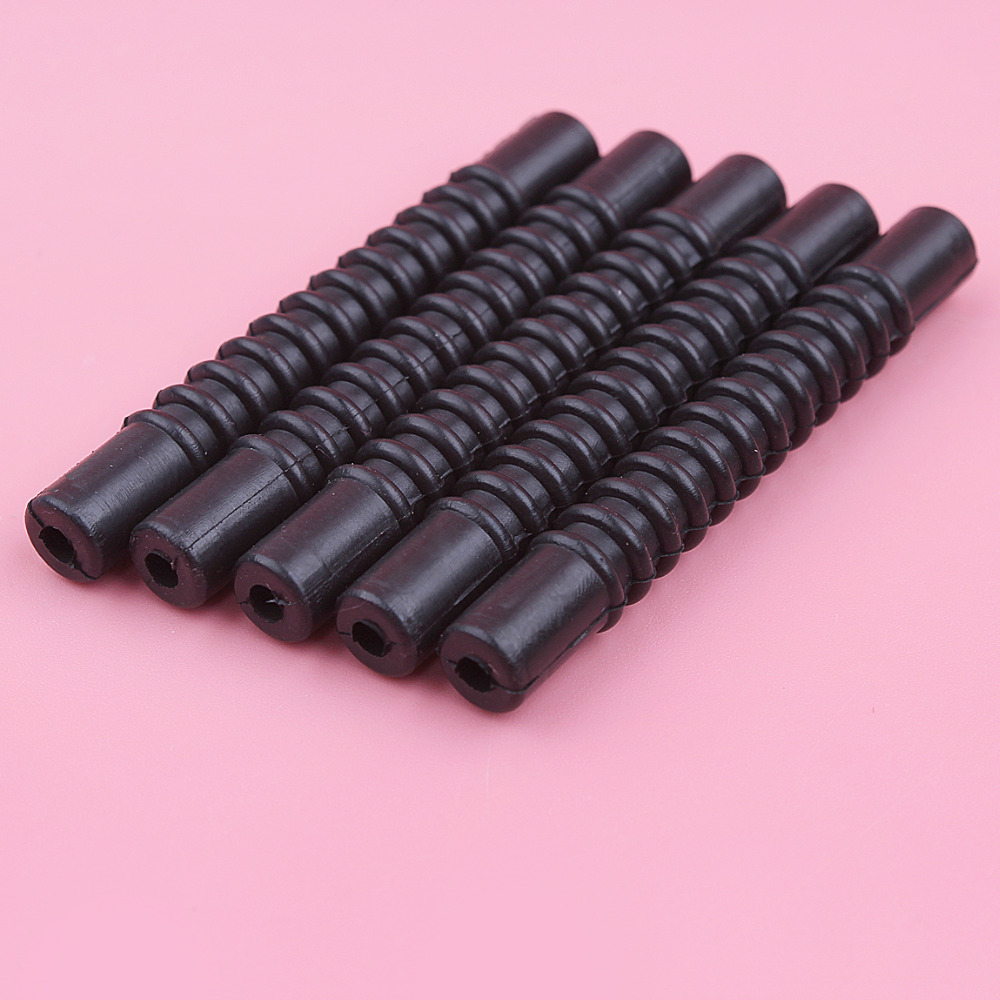

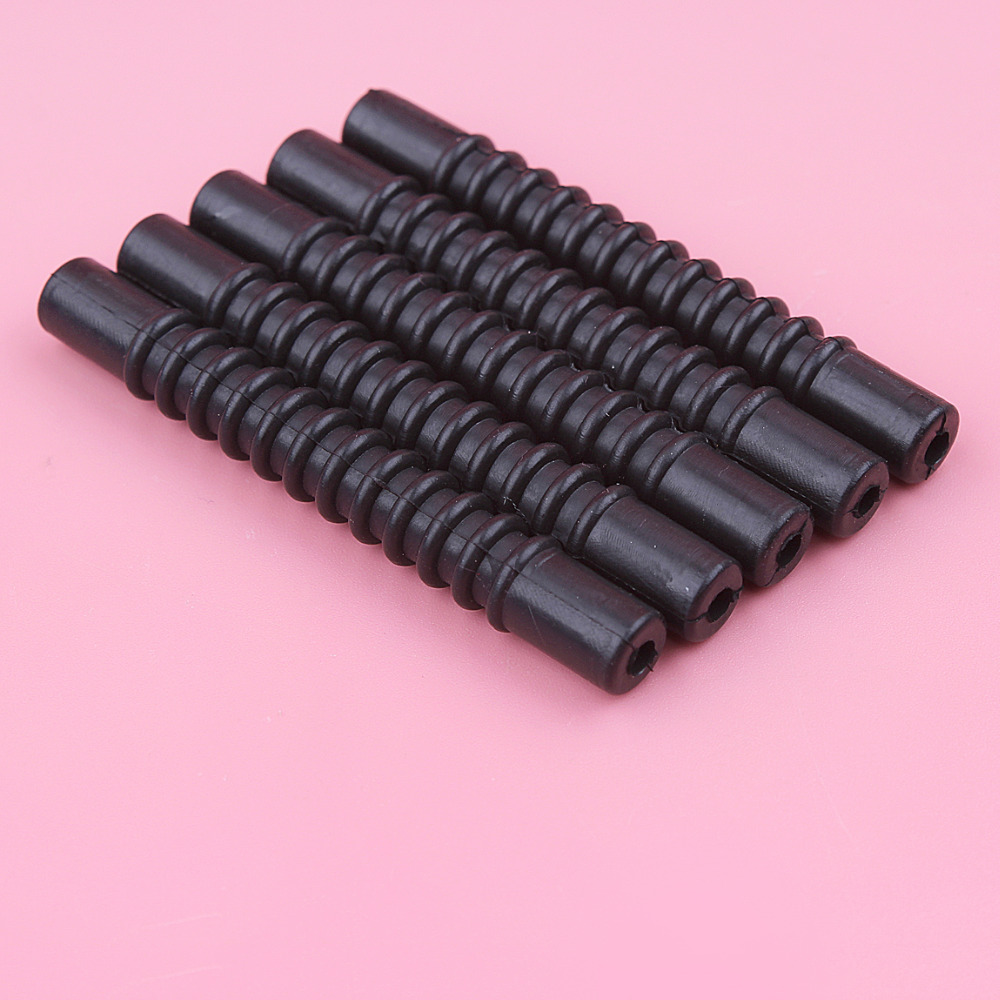

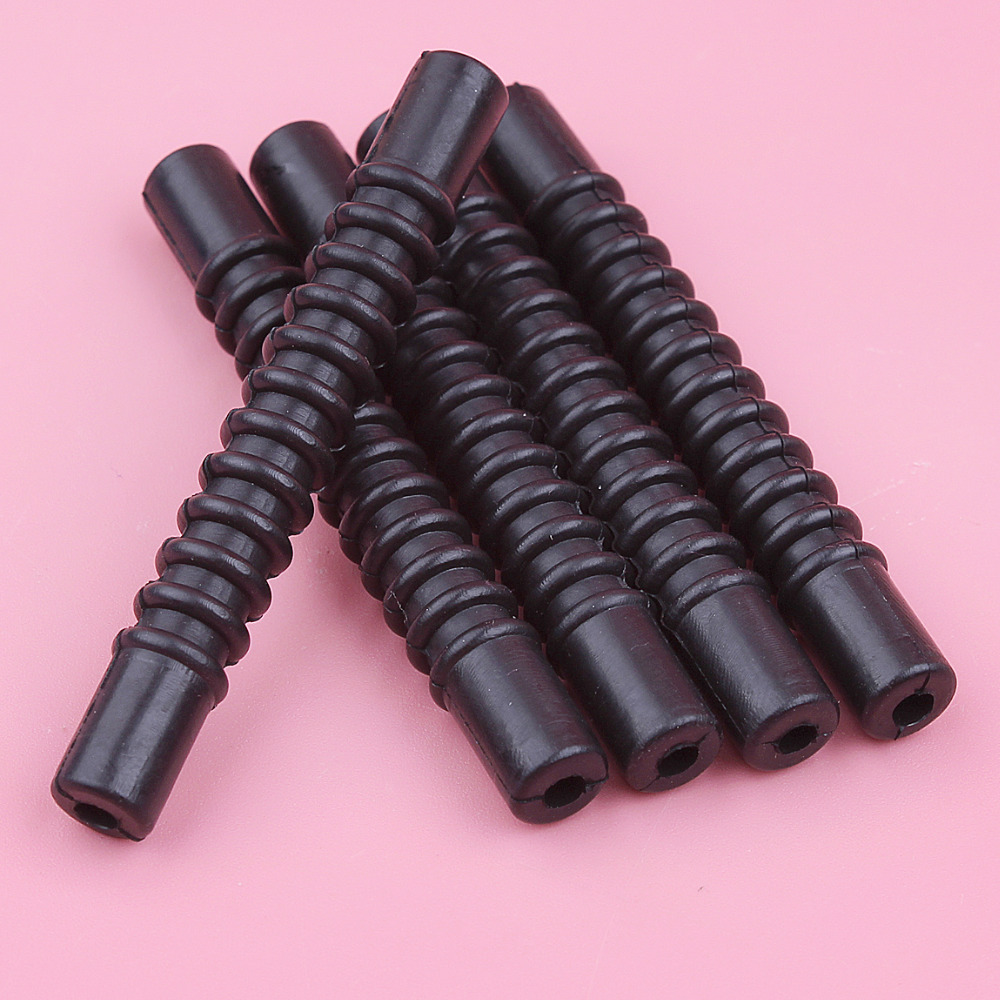

Installation Instructions for 5 Pack Replacement Impulse Line Hose Pipe

Compatible Models: MS250, MS230, MS210, 025, 023, 021

Tools Needed:

• Flathead Screwdriver: For removing clamps and accessing the hose connections.
• Phillips Screwdriver: If necessary, for any screws that may need to be removed.
• Pliers: To assist in removing and securing clamps.
• Utility Knife or Scissors: For trimming the new hoses to the necessary length if required.
• Safety Gloves: To protect your hands during the installation process.
• Safety Goggles: To protect your eyes from any debris while working.

Installation Steps:

1. Safety First: Ensure the chainsaw is turned off and disconnected from the power source. Wear safety gloves and goggles throughout the process.

2. Remove the Old Hose:

   • Use the flathead screwdriver to loosen and remove any clamps holding the old impulse line hose in place.
   • Carefully pull off the old hoses from the connections. You may need to use pliers for stubborn hoses.

3. Prepare the New Hose:

   • Take one of the new impulse line hoses from the package.
   • If necessary, use a utility knife or scissors to trim the hose to the required length.

4. Install the New Hose:

   • Position the new hose onto the connections where the old hose was attached.
   • Ensure that it fits snugly and is aligned properly to maintain fluid flow.

5. Secure the Hose:

   • Use the previously removed clamps to secure the new hoses in place. Ensure they are tightened properly to prevent any leakage.

6. Check for Proper Installation:

   • Before reassembling any other parts of the chainsaw, visually inspect the hoses to ensure there are no kinks or improper fittings.
   • Run your fingers along the connection points to ensure they are secure.

7. Reassemble and Test:

   • Reattach any covers or components that were removed during the installation process.
   • Start the chainsaw and check for proper operation. Look for any signs of leakage around the new hoses.

Final Notes:

If you experience any issues during installation or after testing, please consult the user manual or seek assistance from a professional. Having the right tools and following the steps carefully will ensure a successful installation of your new impulse line hoses.
