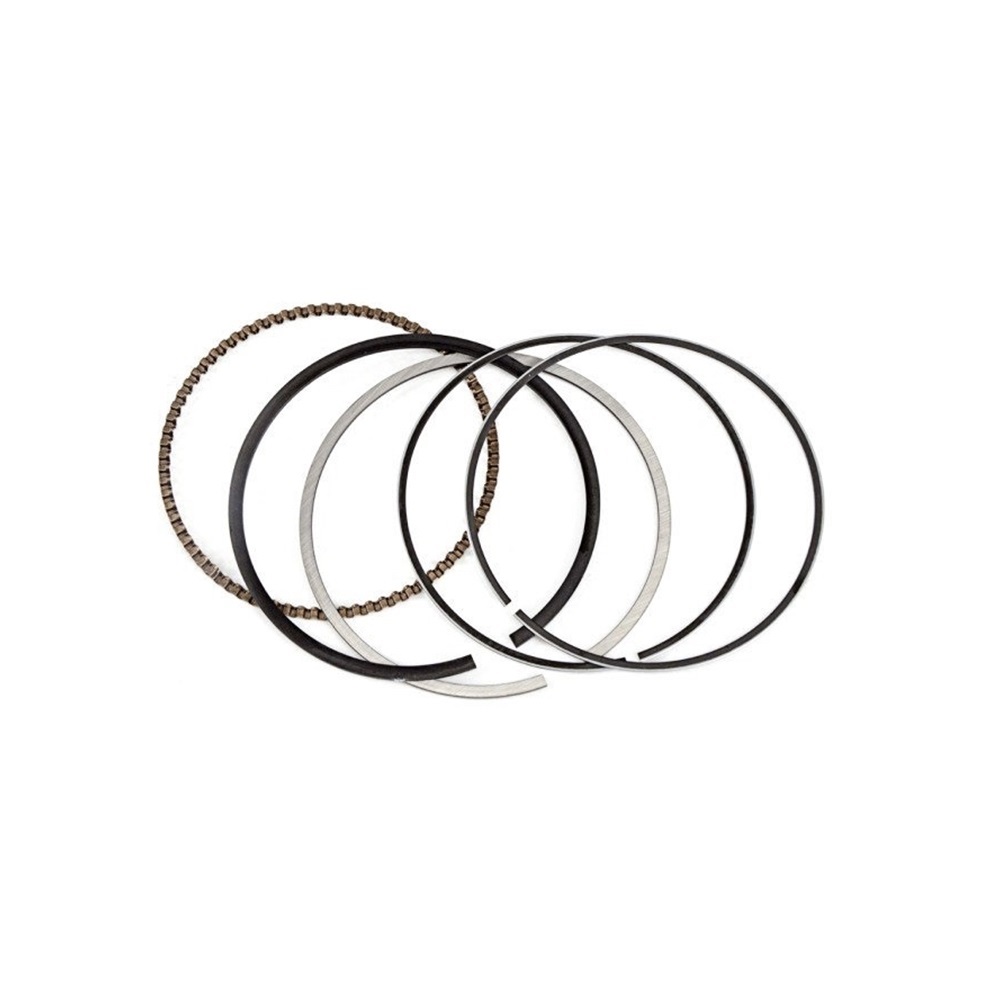

Installation Instructions for 66mm to 67mm Motorcycle Piston Ring Kit

Tools Required:

1. Socket Set (including deep sockets)
2. Torque Wrench
3. Piston Ring Compressor Tool
4. Feeler Gauge
5. One-inch Wide Soft Hammer or Rubber Mallet
6. Screwdrivers (flathead and Phillips)
7. Pliers (needle-nose and standard)
8. Shop Towels or Rags
9. Safety Glasses
10. Gloves (optional, for hand protection)
11. Engine Oil (for lubrication)
12. Gasket Scraper (if applicable)

Installation Steps:

1. Prepare the Workspace:
   Ensure you have a clean and well-lit area to work on your motorcycle. Lay out all tools and materials. Wear safety glasses and gloves for protection.

2. Remove the Motorcycle Parts:

   • Start by removing the seat and side panels of the motorcycle.
   • Disconnect the battery for safety.
   • Drain the engine oil using a suitable container.
   • Remove the components necessary to access the engine, including the cylinder head and cylinder.

3. Remove the Old Piston Rings:

   • Use a piston ring compressor tool to carefully free the old piston from the cylinder.
   • Remove the old piston rings using pliers while taking care not to damage the piston.

4. Prepare the New Piston Rings:

   • Before installing, check the piston ring end gaps using a feeler gauge to ensure they meet manufacturer specifications.
   • Apply a light coat of engine oil to the new piston rings for lubrication.

5. Install New Piston Rings:

   • Carefully install the new piston rings onto the piston, following the orientation indicated in your motorcycle’s service manual.
   • Use the piston ring compressor tool to compress the rings for installation into the cylinder.

6. Reassemble the Engine:

   • Carefully insert the piston back into the cylinder, ensuring it is aligned correctly.
   • Reattach the cylinder head and other components in reverse order of removal.
   • Replace any gaskets if necessary.

7. Final Checks:

   • Double-check all connections and ensure that everything is securely fastened.
   • Reconnect the battery and refill the engine oil.

8. Test the Motorcycle:

   • Start the motorcycle and allow it to reach operating temperature.
   • Monitor for leaks or unusual noises during the initial run.

By following these steps and using the required tools, you can successfully install the 66mm to 67mm Motorcycle Piston Ring Kit and enhance the performance of your motorcycle.
