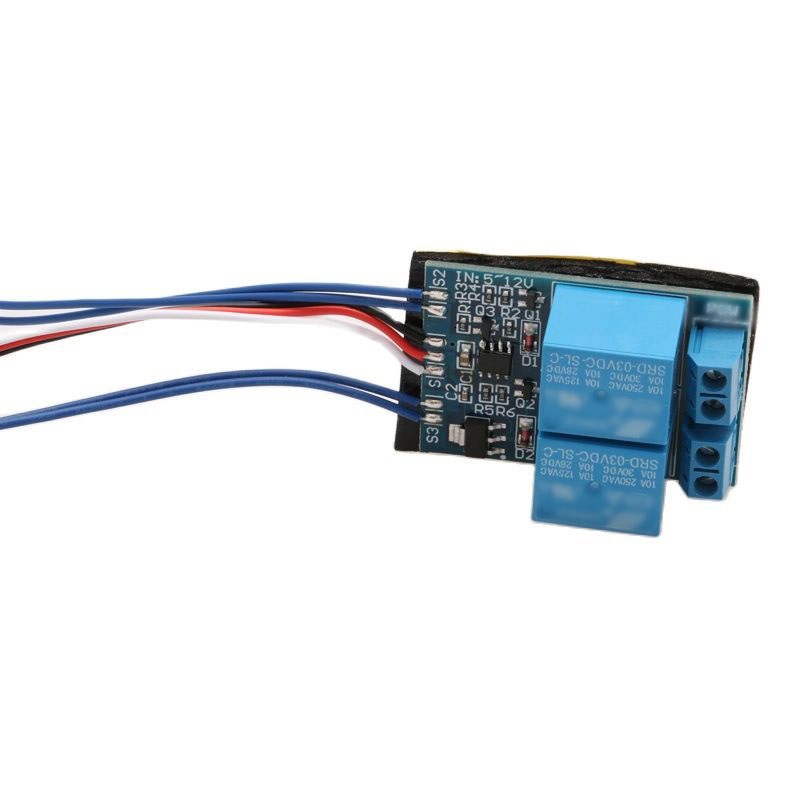

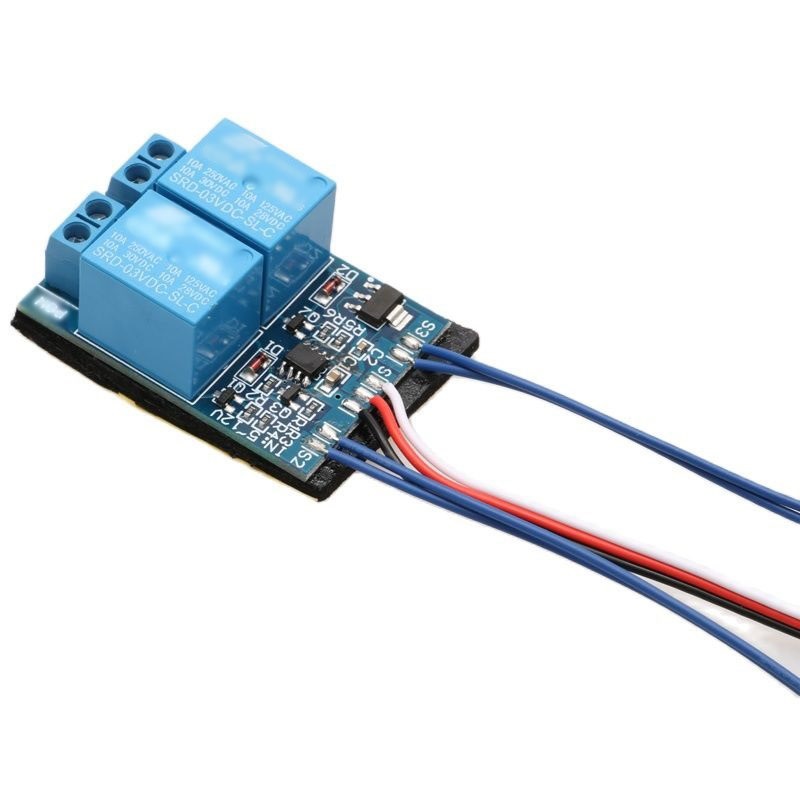

2-way brushed motor relay controller with forward reverse function and limit switch for RC boats and aircraft 5-12v receiver
159 Sold
USD 7.44USD7.66
97% Limited Time
About This Item
High Efficiency: This 2-way brushed motor relay controller is specially designed for RC boats and aircraft, supports 5-12V receiver, ensuring good power output and reverse control.
Multi-functional design: It has forward and reverse functions, which can be easily switched to meet various operating needs and is suitable for a variety of models.
Easy installation: The equipment has a compact layout and is equipped with easy-to-wire terminals, allowing users to quickly install it into various models.
Protection mechanism: built-in limit switch to prevent overload and damage and extend the service life of the equipment.
Strong compatibility: Compatible with a variety of receiver and motor types, flexible to adapt to different user needs.
Sold To
United States
USD 6.01
Delivery: 7-15 Business Days
Fast Delivery
Refund If Package Lost
Refund If Items Damaged
Refund If No Delivery in 30 Days
Quantity
1
Installation Instructions
Installation Instructions for 2-Way Brushed Motor Relay Controller
Tools Needed:
- Screwdriver Set: For securing connections and mounting the unit.
- Wire Strippers: To prepare the wires for connections.
- Soldering Iron (optional): For permanent connections if desired.
- Heat Shrink Tubing or Electrical Tape: To insulate connections and prevent short circuits.
- Multimeter: To check the voltage and ensure proper connections.
- Small Wrenches: For securing any mechanical components, if necessary.
Installation Steps:
-
Preparation:
- Begin by gathering all necessary tools and components. Ensure you have the 2-Way Brushed Motor Relay Controller, your RC boat or aircraft, receiver, and motors.
-
Wiring the Receiver:
- Connect the receiver to the controller by matching the appropriate signal wires. Refer to the controller’s markings for guidance.
-
Connecting the Motors:
- Connect your brushed motors to the designated output terminals on the controller. Ensure the wiring is secure and follows the correct polarity for forward and reverse functionality.
-
Installing the Limit Switch:
- If your model has a limit switch feature, install the limit switch in a suitable position. This will prevent the motors from operating beyond their range, ensuring safety.
-
Power Connection:
- Connect the power supply (5-12V) to the controller. Ensure that the voltage matches the specifications of the unit to avoid damage.
-
Securing Connections:
- Once all components are connected, secure all wiring using heat shrink tubing or electrical tape to prevent accidental disconnections.
-
Testing Functionality:
- Power on your device and perform a functionality test. Ensure that both forward and reverse operations work smoothly. Use a multimeter to check for any faulty connections.
-
Final Adjustments:
- Review all connections and make adjustments if necessary. Ensure that everything is securely mounted and that there are no exposed wires.
-
Calibration and Setup:
- Follow any specific calibration instructions provided with your receiver and motors to finalize the setup.
By following these steps and utilizing the tools listed, you should be able to install the 2-Way Brushed Motor Relay Controller successfully and optimize it for your RC models. Enjoy your enhanced control capabilities!
Description
Specification:
Supports 5-12V high voltage receiver
1 channel servo signal input for controlling motor forward and reverse
Input voltage corresponds to the controlled motor voltage
Limit current of 10A
Compatible with various remote control equipment without calibration
Includes forward and reverse rotate limit function
High position for forward rotation, low position for reverse rotation, middle position for stop
Scope of application:
Model airplane radar forward and reverse rotation control
Model aircraft main gun forward and reverse rotation control
Weapon system control for realistic operations
Various systems requiring motor forward and reverse rotation control
Function description:
The remote switch controls electrical equipment on the model aircraft through a specific switch channel on the remote control.
This device uses the receiver for power supply, isolated from external power, which is solely for the controlled equipment.

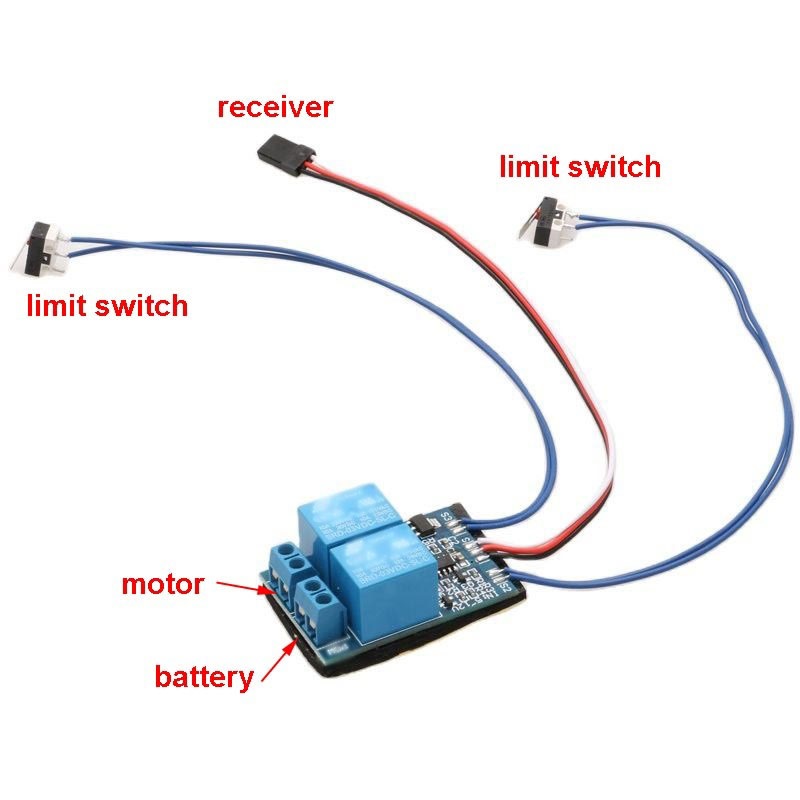

Typical application:
1. Connect
Insert the signal input cable into an idle receiver channel, aligning with a switch on the remote control.
Recommended for the three-stage switch channel.
Connect the control switch to the device.
2. Trigger
For example, using the throttle channel:
Turning the throttle lever to full throttle activates forward rotation; half throttle stops the motor; and minimum throttle activates reverse rotation.
Package included:

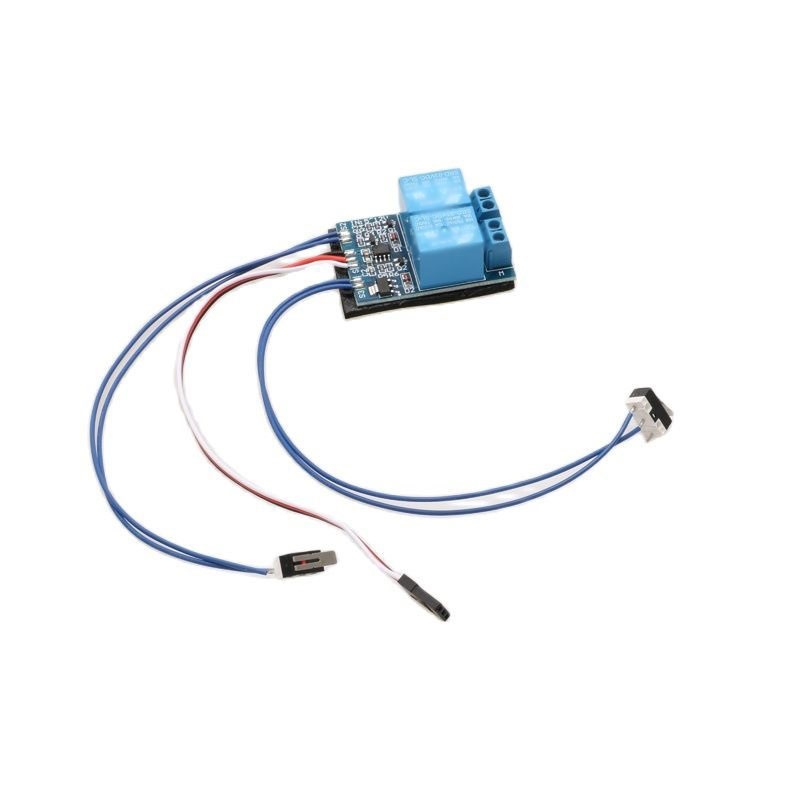

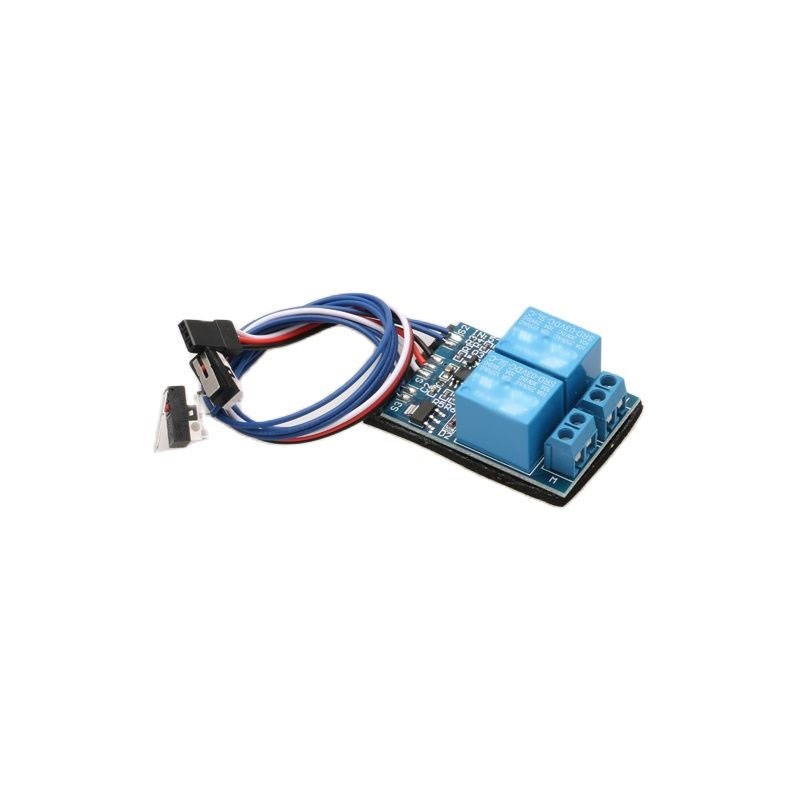

1 controller with limit switch
