Product Installation Instructions for Replacement Metering Diaphragms for Carburetors in Gasoline Equipment

Tools Required:

1. Screwdriver Set: A set of flathead and Phillips screwdrivers to remove various screws.

2. Pliers: For gripping and twisting any stubborn components or clips.

3. Socket Wrench Set: Useful for removing bolts, if applicable to your model.

4. Gasket Scraper or Razor Blade: To clean any old gasket material from the surface.

5. Cleaner/Degreaser: For cleaning the carburetor and surrounding areas before installation.

6. Torque Wrench: To ensure that bolts are tightened to the proper specifications, if necessary.

7. Rags/Paper Towels: For cleaning up any spills and keeping the workspace tidy.

8. Safety Gloves: To protect your hands from any chemicals and sharp components.

9. Safety Goggles: To protect your eyes during the disassembly and installation process.

Installation Steps:

1. Preparation: Ensure the engine is turned off and cooled down. Disconnect the battery for added safety.

2. Remove the Carburetor: Use the appropriate screwdriver and socket wrench to detach the carburetor from the engine. Take note of how components are connected for reassembly.

3. Clean the Carburetor: Use the cleaner and gasket scraper to remove old gasket material and debris from the mating surfaces.

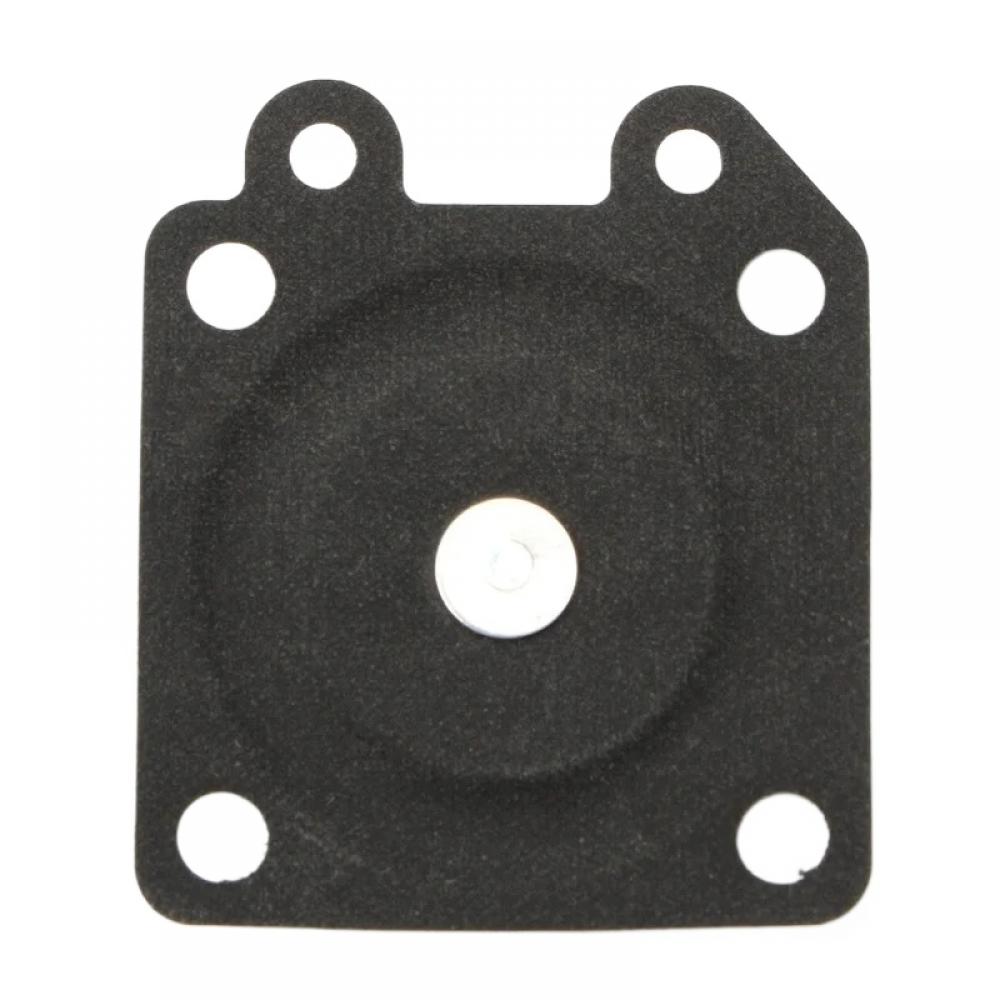

4. Replace the Diaphragm: Take the new metering diaphragm and align it properly with the carburetor. Ensure it fits snugly.

5. Reassemble the Carburetor: Carefully reattach all components, ensuring that all screws and bolts are tightened to avoid any leaks.

6. Reinstall the Carburetor: Position the carburetor back onto the engine and reattach it using the screws or bolts, following the original configuration.

7. Reconnect the Battery: Once everything is reassembled and secured, reconnect the battery.

8. Test the Equipment: Start the engine and check for any leaks or irregularities in performance. Ensure that everything operates smoothly.

By following these instructions and using the listed tools, you can successfully replace the metering diaphragms in your gasoline equipment, ensuring optimal performance and extended lifespan.
