Installation Instructions for Water Pump Impeller

Tools Required:

1. Socket Wrench Set - To remove the cover and access the water pump.
2. Screwdriver Set - A flat-head and Phillips screwdriver may be needed for various screws.
3. Pliers - To help with removing clamps or hoses.

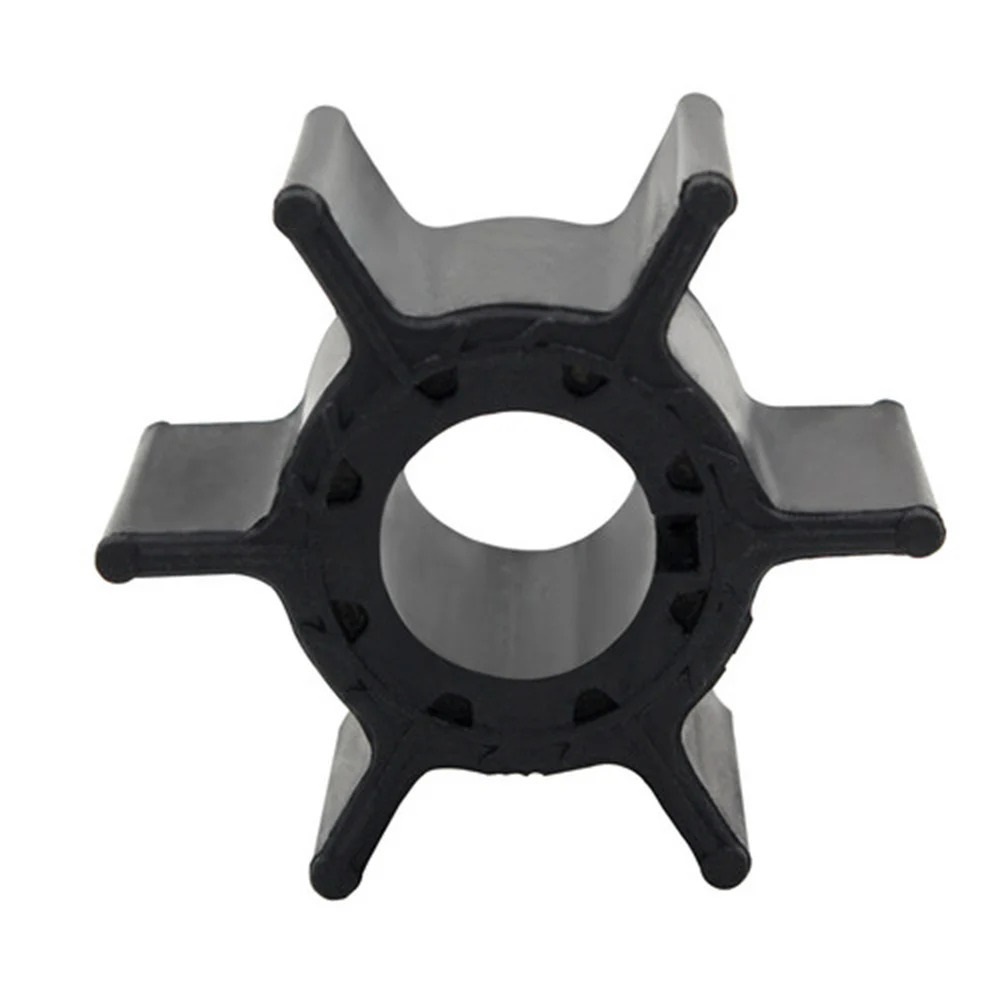

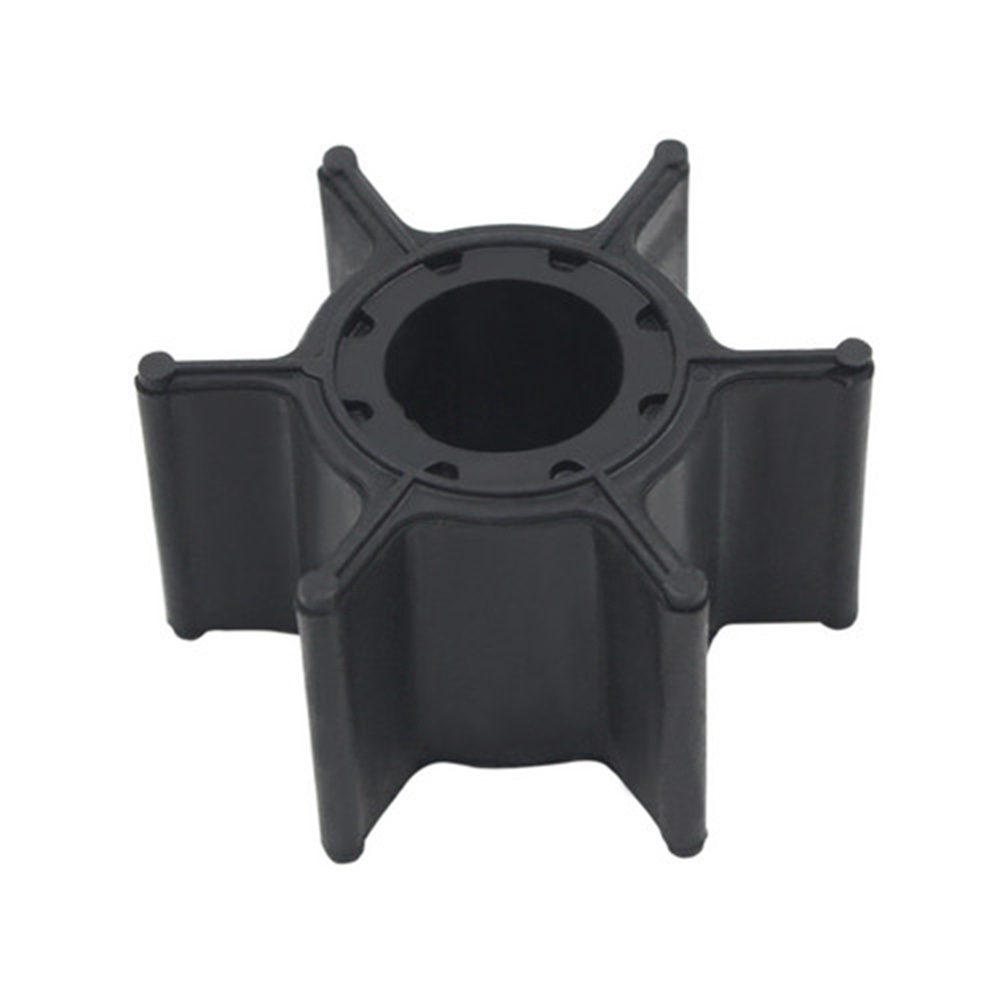

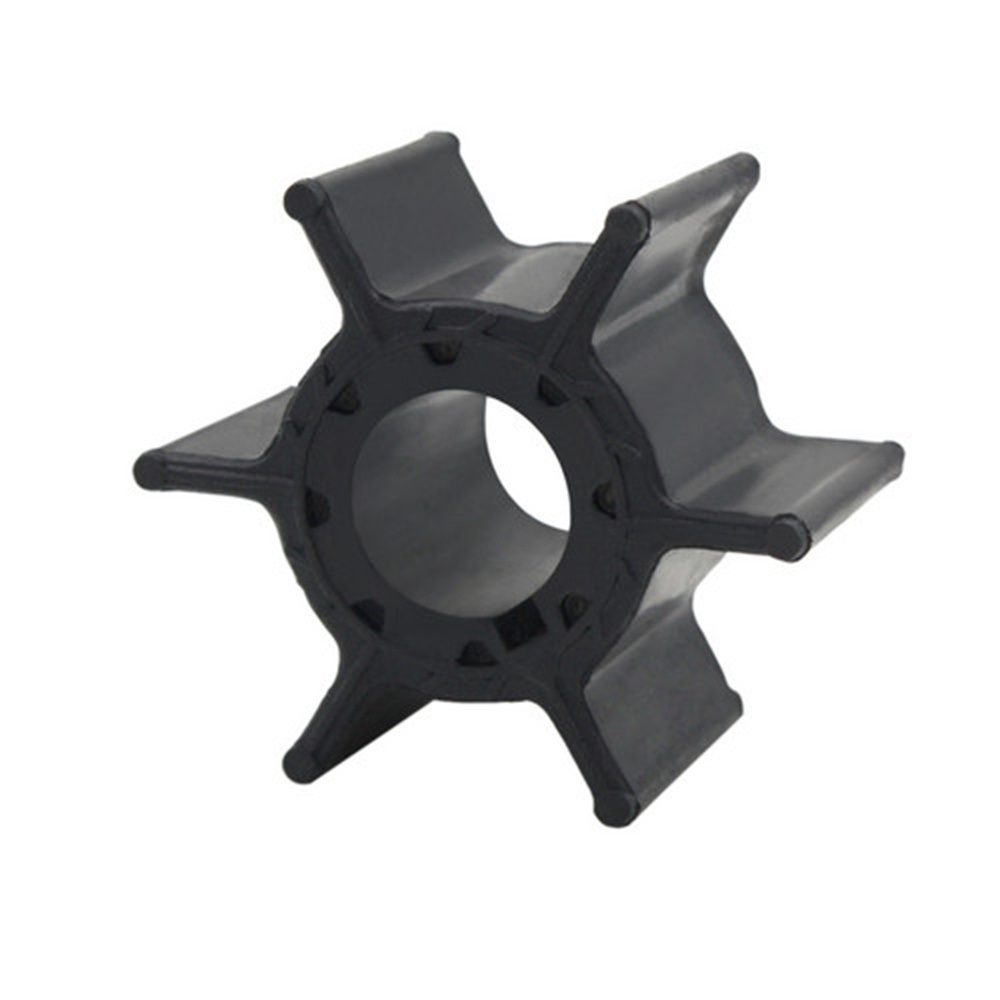

4. Replacement Water Pump Impeller - Ensure it is compatible with models 682-44352-00, 682-44352-01, and 682-44352-02.
5. Gasket Sealant (optional) - To provide a better seal if needed.
6. Clean Rag - For cleaning surfaces during installation.
7. Safety Glasses - To protect your eyes while working.

Installation Steps:

1. Preparation:

   • Ensure the boat is on a stable surface and the engine is turned off.
   • Disconnect the battery to avoid any electrical hazards.

2. Access the Water Pump:

   • Use the socket wrench to remove any screws or bolts holding the water pump cover in place.
   • Carefully lift the cover off and set it aside.

3. Remove the Old Impeller:

   • Take note of the orientation of the old impeller before removing it.
   • Gently pull the old impeller out of the pump housing.

4. Clean the Housing:

   • Use the clean rag to wipe the inside of the pump housing and remove any debris or old gasket material.

5. Install the New Impeller:

   • Position the new impeller in the same orientation as the old one.
   • Ensure it fits snugly into the pump housing.

6. Reassemble the Water Pump:

   • If applicable, apply gasket sealant to the pump cover before placing it back on.
   • Align the cover with the housing and secure it with the screws or bolts you removed earlier.

7. Final Checks:

   • Ensure all connections are tight and there are no loose components.
   • Reconnect the battery.

8. Test the Engine:

   • Start the engine and check for proper water flow to ensure the new impeller is functioning correctly.

Notes:

• Always refer to your specific outboard motor manual for any model-specific instructions.
• Regular maintenance of your water pump impeller can help extend the life of your engine and ensure optimal performance.

Follow these instructions carefully for a successful installation of your new water pump impeller!
