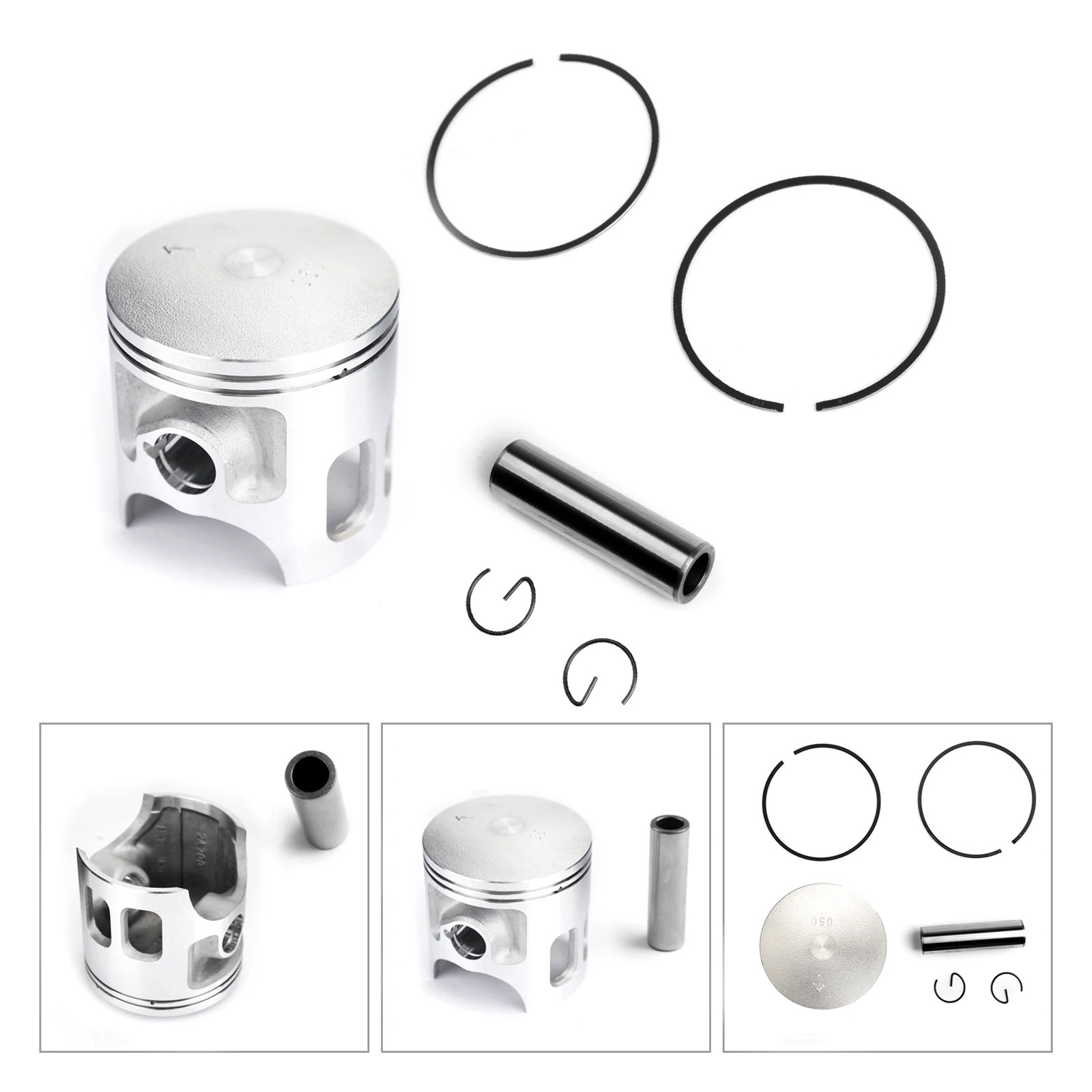

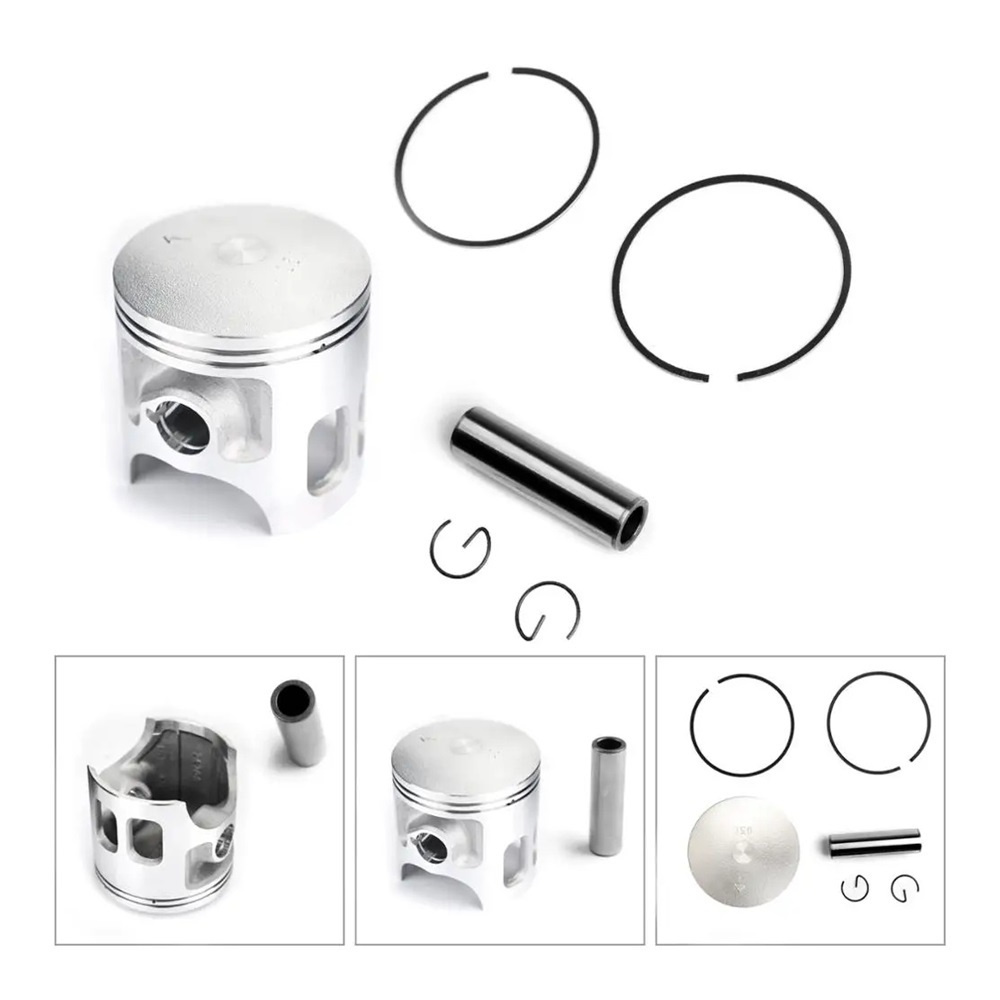

Installation Instructions for 66mm Piston Kit for 1995-1996 DT200R Motorcycles

Tools Required:

1. Socket set (including 8mm, 10mm, and 12mm sockets)
2. Torque wrong
3. Screwdrivers (flathead and Phillips)
4. Piston ring compressor
5. Engine oil
6. Clean rag or paper towel
7. Allen wrench set
8. Plastic mallet (optional)
9. Parts cleaner (optional)
10. Gasket scraper (if needed)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface and the engine is cool.
   • Gather all tools and parts needed for the installation.

2. Drain Engine Oil:

   • Place a drain pan under the engine and remove the oil drain plug to allow the engine oil to drain completely.

3. Remove Cylinder Head:

   • Disconnect the spark plug wire.
   • Use the appropriate socket to remove bolts securing the cylinder head.
   • Carefully lift the cylinder head off the cylinder, ensuring not to damage any gaskets.

4. Remove Old Piston:

   • Remove the circuits holding the pinton pin in place with a flathead screwdriver.
   • Slide the piston pin out gently and remove the old piston along with the piston rings.

5. Prepare New Piston:

   • Before installing the new 66mm piston, lubricate the piston rings and the sides of the piston with engine oil.

6. Install New Piston:

   • Use the pinton ring compressor to compress the pinton rings.
   • Insert the new piston into the cylinder from the bottom, ensuring it is oriented correctly (check for markings on the piston).
   • Slide the piston pin through the piston, securing it with the circuits.

7. Reinstall Cylinder Head:

   • Place the cylinder head back on the cylinder.
   • Tighten the cylinder head bolts to the manufacturer’s specified torque using a torque wrong.

8. Reattach Spark Plug Wire:

   • Ensure the spark plug wire is securely reattached.

9. Refill Engine Oil:

   • Replace the oil drain plug and refill the engine with the recommended oil type and quantity.

10. Test Your Motorcycle:

    • Start the engine and allow it to idle for a few minutes.
    • Check for any oil leaks around the cylinder head.
    • Take your motorcycle for a test ride to ensure everything is functioning properly.

Conclusion:
Congratulations on successfully installing the 66mm piston kit! Enjoy enhanced performance and power output from your 1995-1996 DT200R motorcycle. If you encounter er any issues during installation, consult a professional mechanic for assistance.
