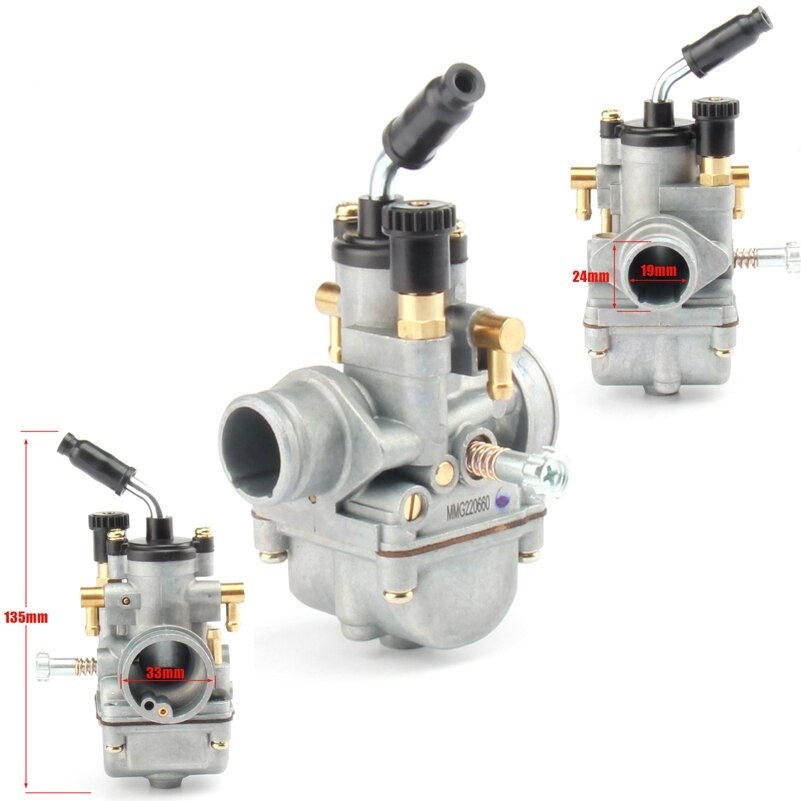

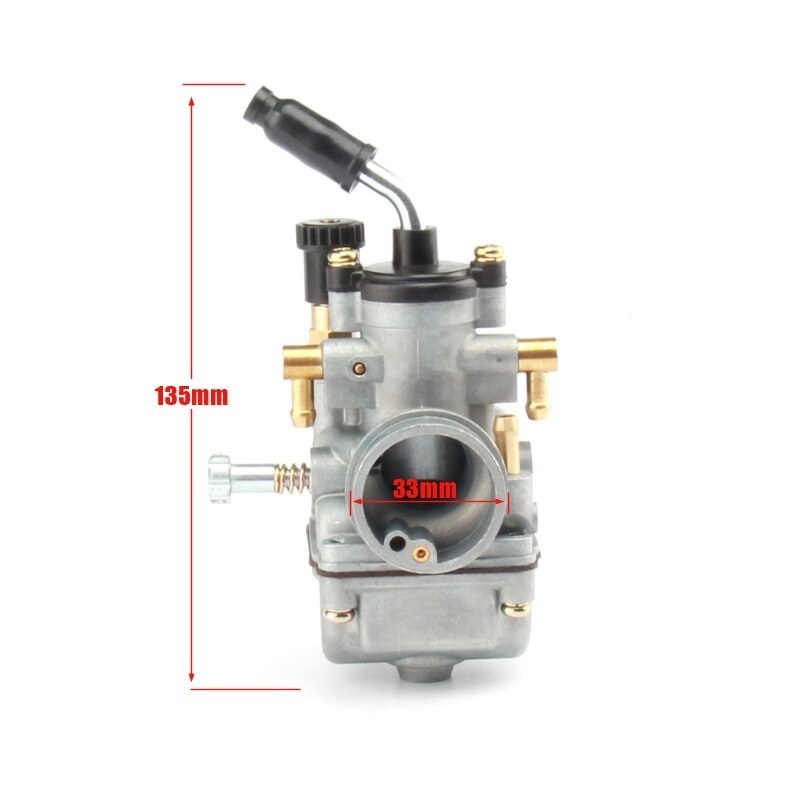

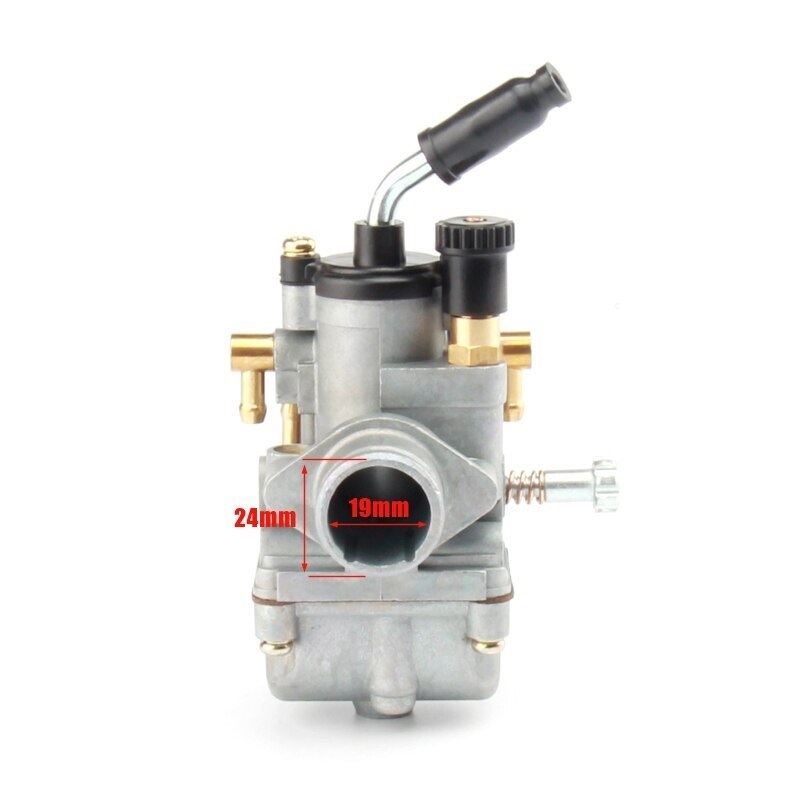

Installation Instructions for 19mm Carburetor for 50CC Dirt Bike Models SX50 SX 50 SX PRO (Year 2001-2008)

Tools and Materials Needed:

• Tools:

  • Screwdriver (flathead and Phillips)
  • Wrench set (10mm and 12mm)
    -Pliers
  • Fuel line clamp
    -Clean cloth or rag
  • Safety goggles
  • Gloves

• Materials:

  • New 19mm carburetor
  • Fresh fuel (if needed)
  • Carburetor cleaner (optional)
  • Gaskets (if replacing old ones)

Installation Steps:

1. Safety First:

   • Ensure the dirt bike is turned off and parked on a stable surface.
   • Wear safety goggles and gloves to protect yourself during the installation process.

2. Remove the Old Carburetor:

   • Disconnect the fuel line by loosening the clamp with pliers.
   • Remove any screws or bolts securing the old carburetor to the intake manifold using the appropriate screwdriver or wrench.
   • Carefully detach the carburetor from the manifold and remove it from the bike.

3. Prepare the New Carburetor:

   • If necessary, clean the new carburetor's intake ports with carburetor cleaner to ensure optimal performance.
   • Check that the gaskets are in good condition or replace them if needed.

4. Install the New Carburetor:

   • Position the new 19mm carburetor onto the intake manifold, aligning it properly.
   • Secure the carburetor using the screws or bolts you removed earlier. Make sure they are tightened adequately but do not overtighten.

5. Reconnect the Fuel Line:

   • Attach the fuel line to the carburetor and secure it with the clamp. Ensure there are no leaks.

6. Adjust the Mixture:

   • Locate the adjustment screws on the carburetor and make necessary adjustments to the air-fuel mixture, following the manufacturer's recommendations. This will optimize engine efficiency and responsiveness.

7. Final Checks:

   • Double-check that all connections are secure and that there are no loose parts or tools left on the bike.
   • Clean up any spilled fuel and discard cloths or rags used during the process.

8. Test the Bike:

   • Start the engine and let it idle for a few minutes, observing for any irregularities or leaks.
   • Take a test ride to ensure proper performance and adjust as necessary.

Important Note:

Always refer to your specific dirt bike's service manual for additional details and torque specifications. If you encounter any issues during installation, consider seeking assistance from a professional mechanic.

By following these steps, you can successfully install the new 19mm carburetor and enhance the performance of your 50CC dirt bike. Enjoy your ride!
