Installation Instructions for Motorcycle Engine Component Set for 250cc Models

Introduction

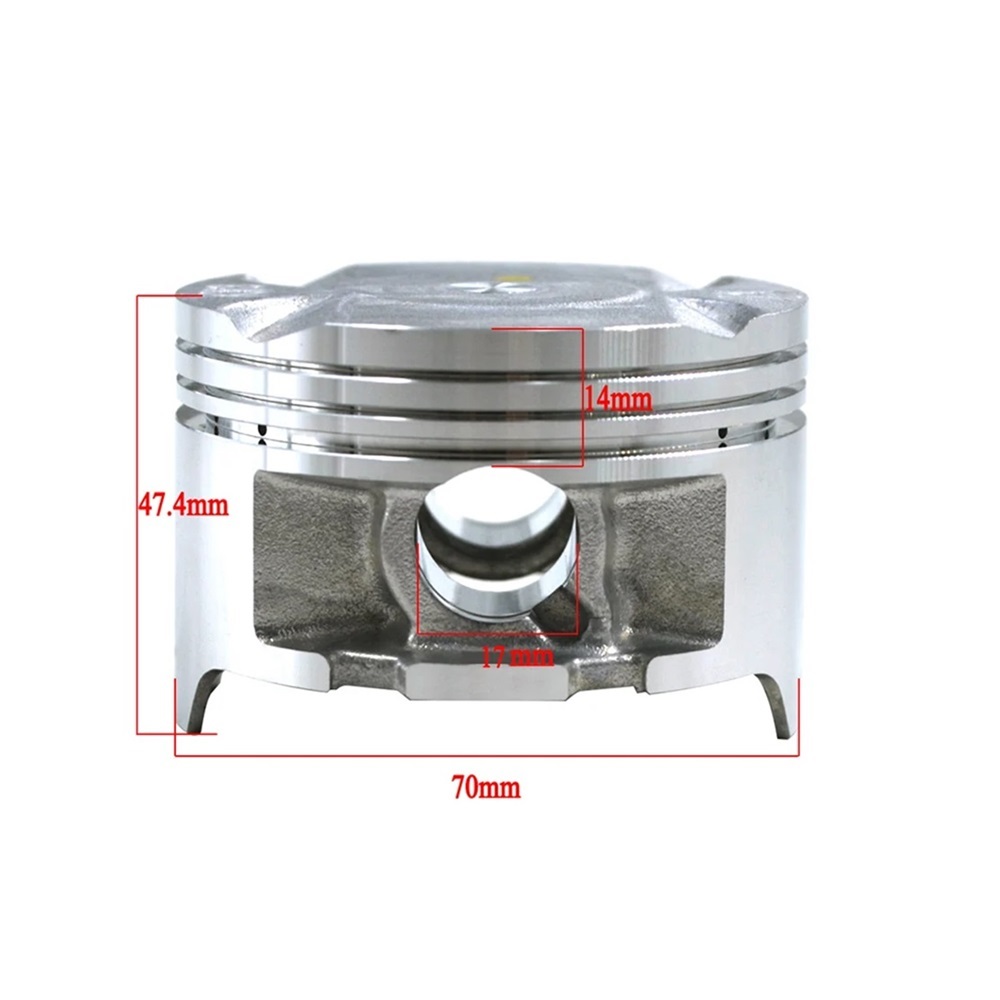

This component set is designed to fit various 250cc motorcycle models with 70, 70.25, and 70.5mm bore pistons. This guide will provide you with the necessary steps and tools required for a successful installation.

Tools Required
Before beginning the installation, gather the following tools:
-Socket wrench set
-Torque wrench

• Screwdriver set (Phillips and flathead)
• Piston ring compressor tool
• Adjustable wrench
  -Clean cloths or rags
• Engine oil
• Plastic gloves (optional)
• Safety goggles

Installation Steps

1. Preparation

   • Ensure that you are working in a clean and dry environment.
   • Gather all the necessary tools mentioned above.
   • Wear safety goggles and gloves to protect yourself during the installation.

2. Remove the Old Components

   • Disconnect the battery and remove any electrical connections as needed.
   • Drain the engine oil from the motorcycle.
   • Remove the cylinder head and cylinder to access the piston.
   • Carefully take out the old piston and piston rings.

3. Clean the Engine Components

   • Use a clean cloth to wipe down the cylinder and other engine components, removing any debris or old oil.
   • Ensure the surface is smooth and clean for optimal performance.

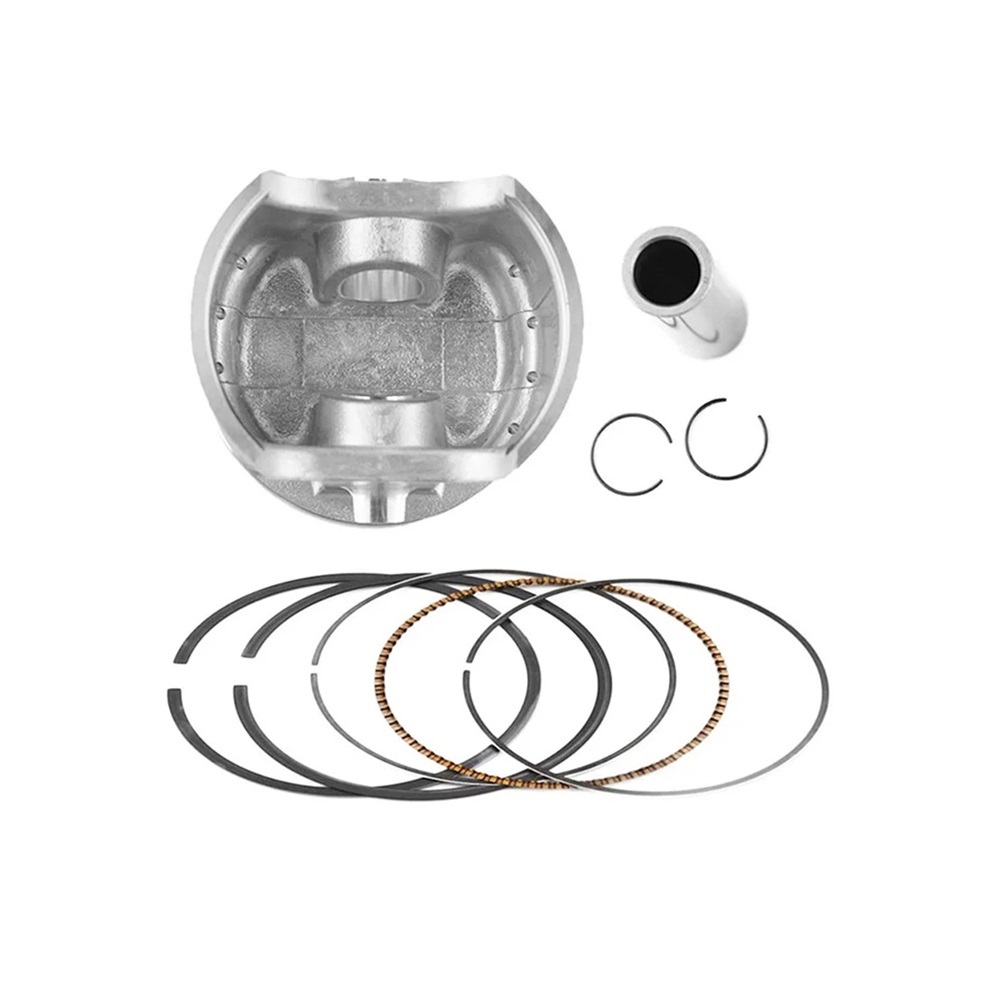

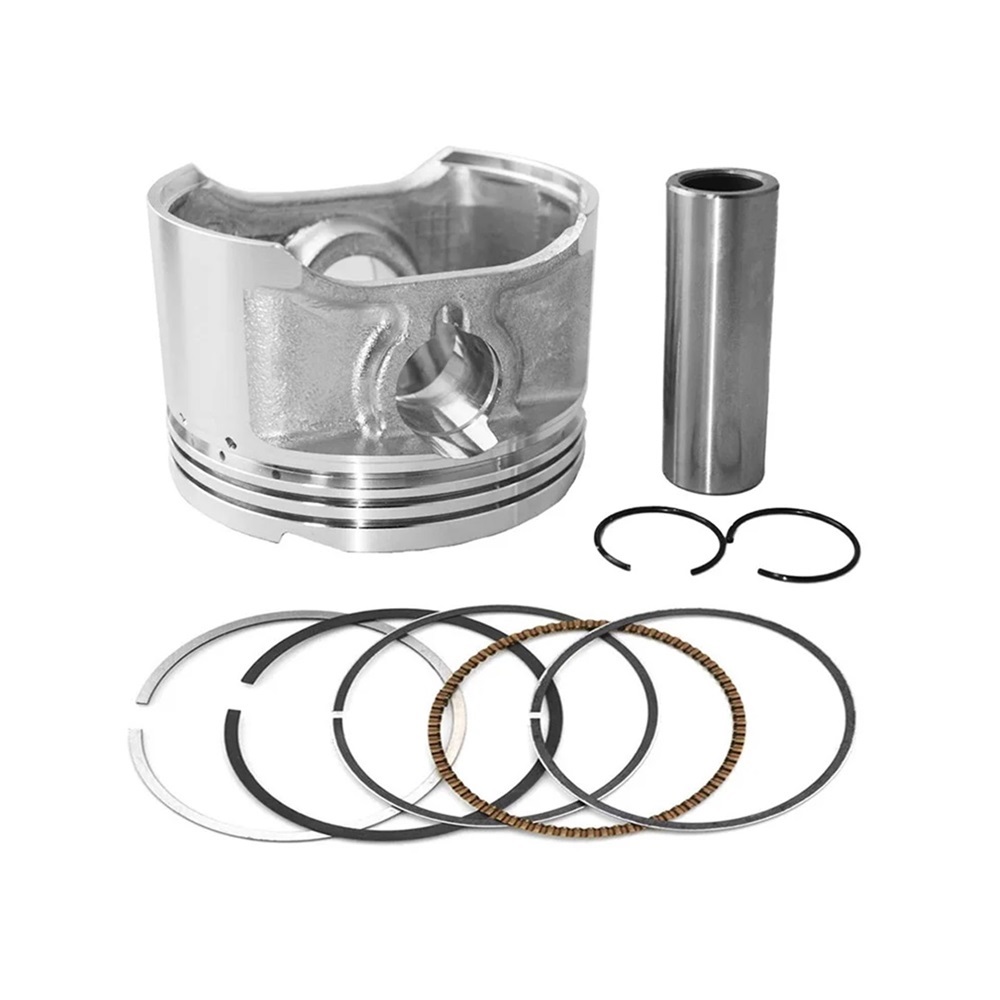

4. Install the New Piston and Rings

   • Apply a thin layer of engine oil to the new piston and the piston rings.

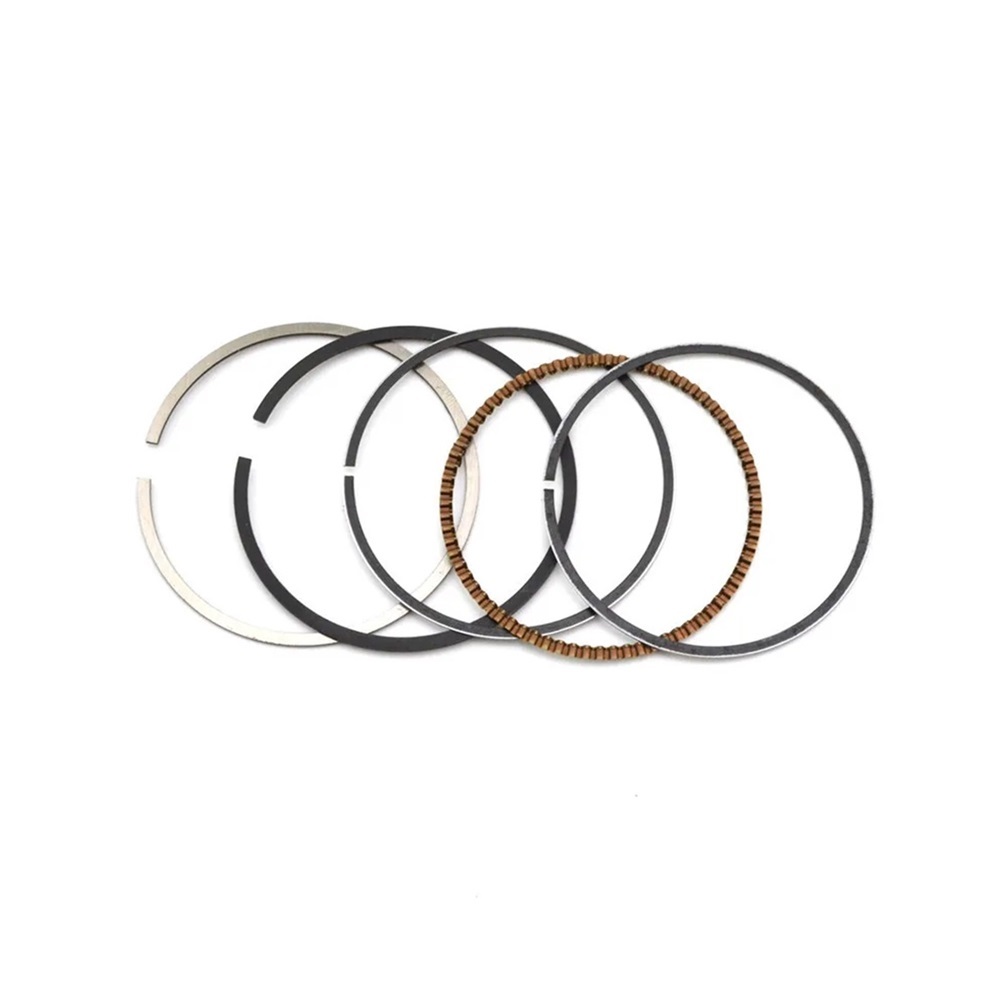

   • Use the piston ring compressor tool to install the new piston rings onto the piston.
   • Carefully insert the piston into the cylinder.

5. Reassemble the Engine
   -Align the cylinder over the piston and securely attach it.

   • Reinstall the cylinder head, making sure to torque the bolts to the manufacturer’s specifications.
   • Reconnect any electrical connections and ensure everything is properly sealed.

6. Final Checks

   • Refill the engine with the appropriate oil.
   • Reconnect the battery.
   • Check all connections and ensure there are no leaks.

7. Testing

   • Start the motorcycle and let it idle for a few minutes to ensure everything is functioning properly.
   • Take the motorcycle for a short test ride and monitor its performance.

Conclusion
You’ve successfully installed the Motorcycle Engine Component Set for your 250cc model. Enjoy a smoother and more powerful riding experience! If you have any questions or encounter issues during installation, consult your motorcycle’s service manual or seek professional assistance.
