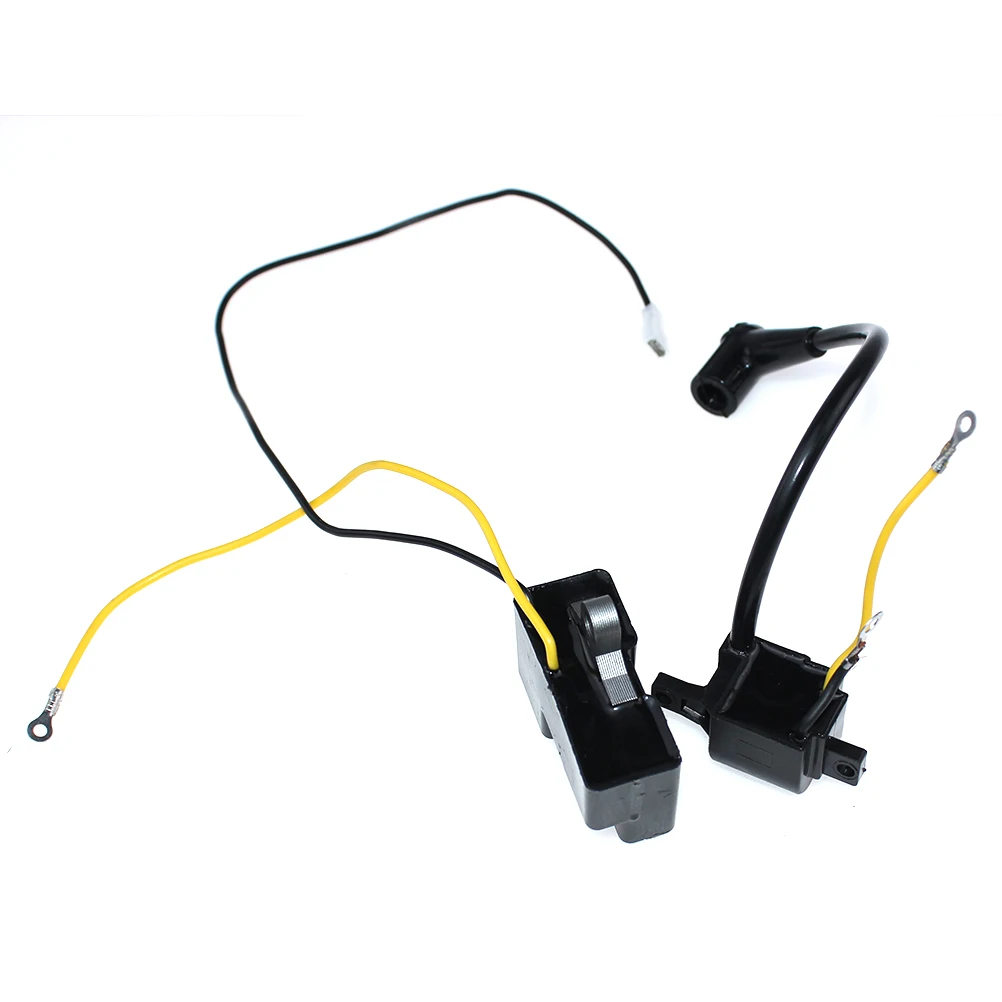

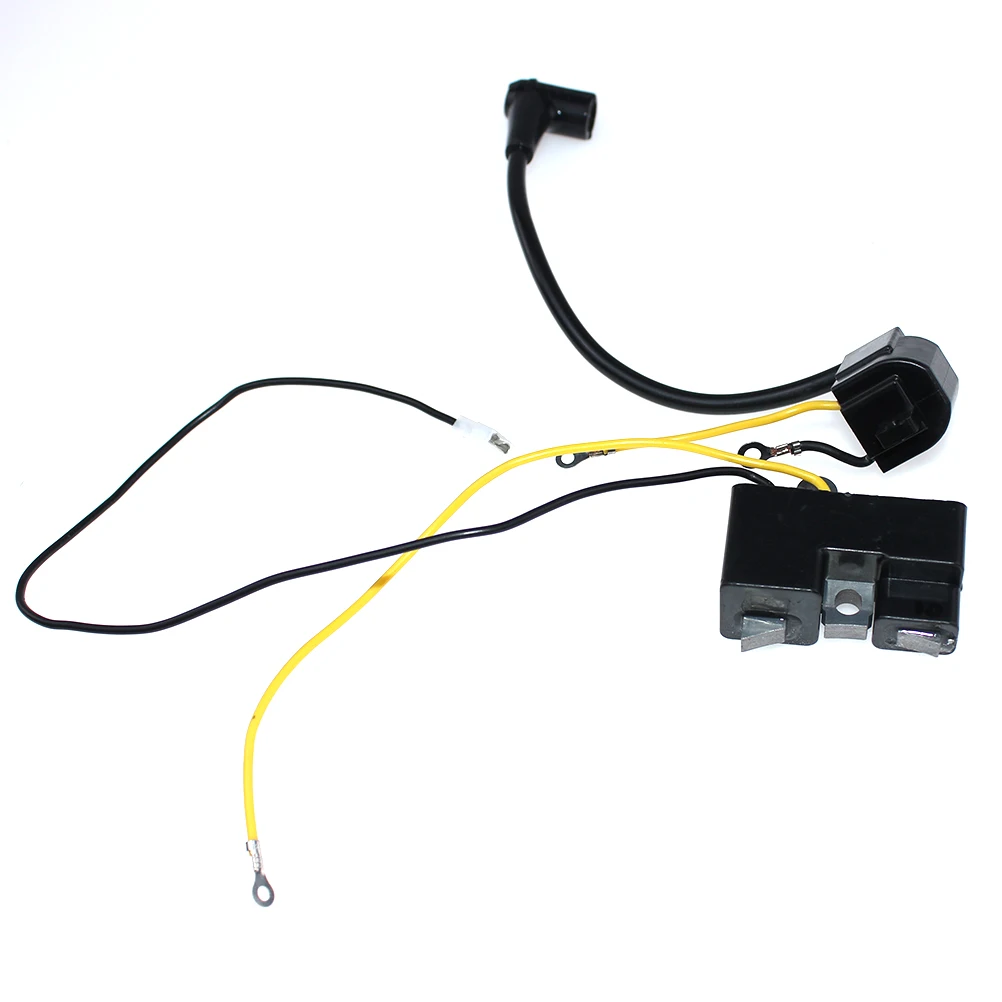

Installation Instructions for Ignition Coil Module
Compatibility:
This Ignition Coil Module is compatible with various chainsaw models, including:
- Husqvarna: 61, 66, 162, 162SE, 162SG, 266
- Jonsered: 625 II, 630, 630 Super II, 670 Champ
Tools Required:
To install the Ignition Coil Module, you will need the following tools:
- Screwdriver Set: A flathead and a Phillips screwdriver will be required to remove and install screws.
- Wrench Set: A socket or wrench may be necessary to detach any bolts holding the ignition coil in place.
- Pliers: Use pliers to assist in pulling wires and securing connections.
- Safety Gloves: To protect your hands during installation.
- Safety Glasses: To protect your eyes from debris while working.
- Torque Wrench (optional): To ensure that bolts are tightened to the manufacturer's specifications.
Installation Steps:
-
Preparation: Before starting, ensure that the chainsaw is turned off and disconnected from the power source. Remove the spark plug for safety.
-
Remove the Cover: Using a screwdriver, remove the screws holding the engine cover in place. Carefully lift off the cover to access the ignition coil.
-
Detach the Old Coil: Locate the ignition coil and use the wrench to unscrew any bolts securing it. Carefully disconnect any wires connected to the coil. Keep track of how the old coil is attached for reference.
-
Install the New Coil: Position the new ignition coil in place and connect the wires according to the original setup. Use the wrench to secure it with bolts.
-
Reassemble the Chainsaw: Replace the engine cover and screw it back into place. Ensure everything is securely fastened.
-
Reconnect the Spark Plug: Reattach the spark plug to the ignition system.
-
Test the Chainsaw: Start your chainsaw to ensure it runs smoothly and efficiently.
Maintenance Tips:
- Regularly inspect the ignition coil and wiring for signs of wear or damage.
- Keep the area around the coil clean to avoid dirt and debris buildup.
- Schedule periodic checks to ensure your chainsaw remains in optimal condition for both home and professional use.
By following these instructions and using the appropriate tools, you can efficiently install your new Ignition Coil Module and enhance the performance of your chainsaw.
