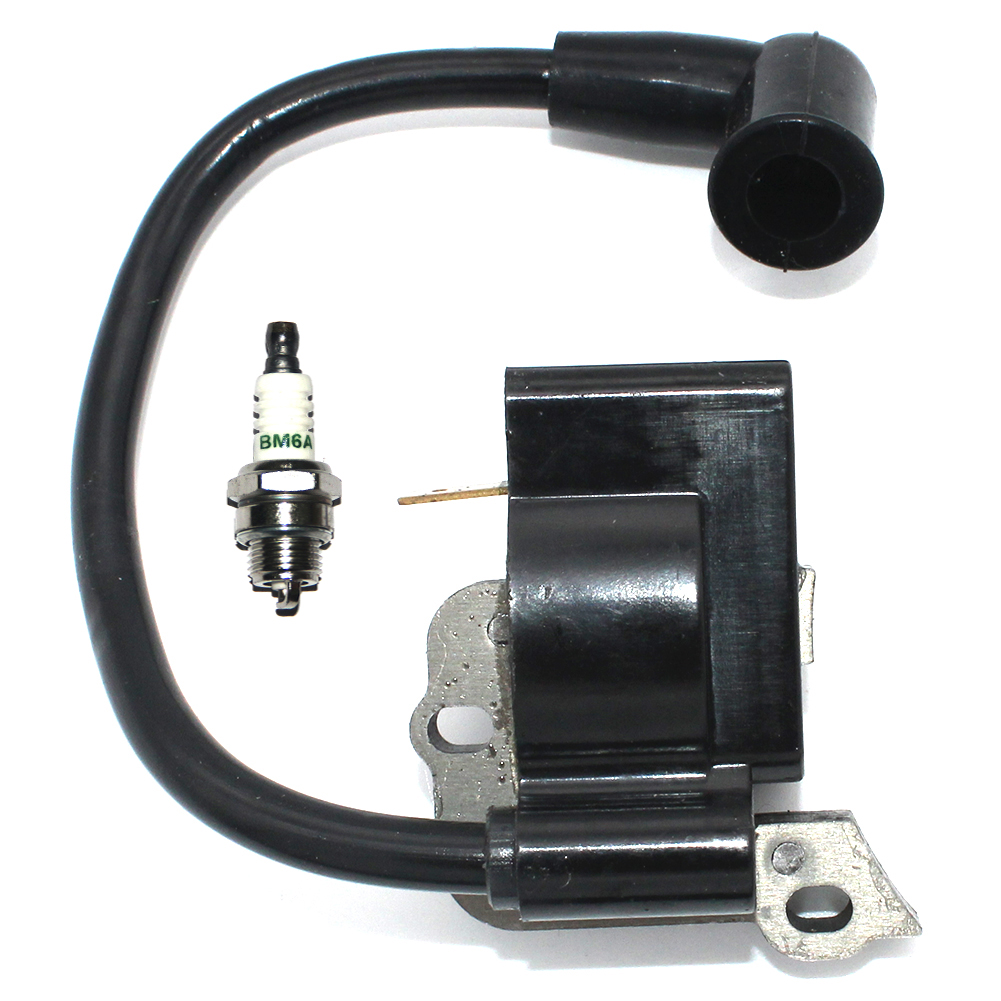

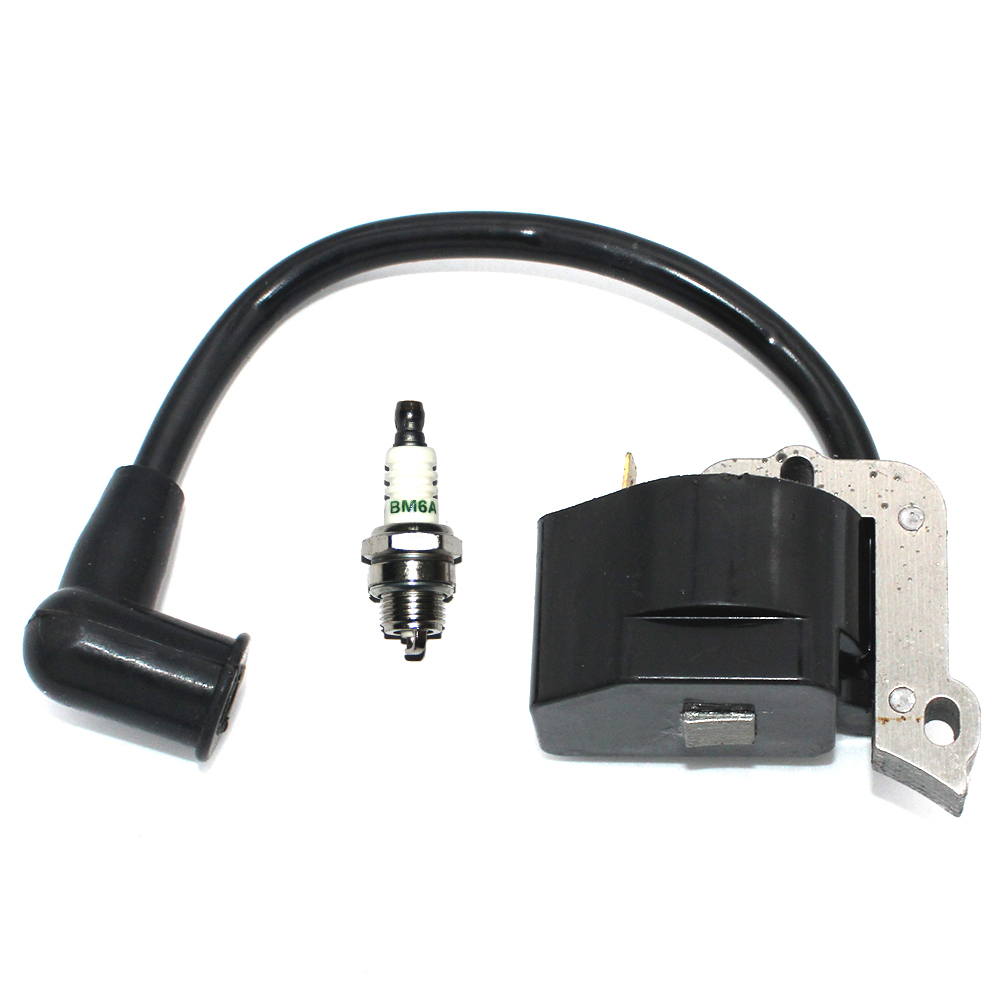

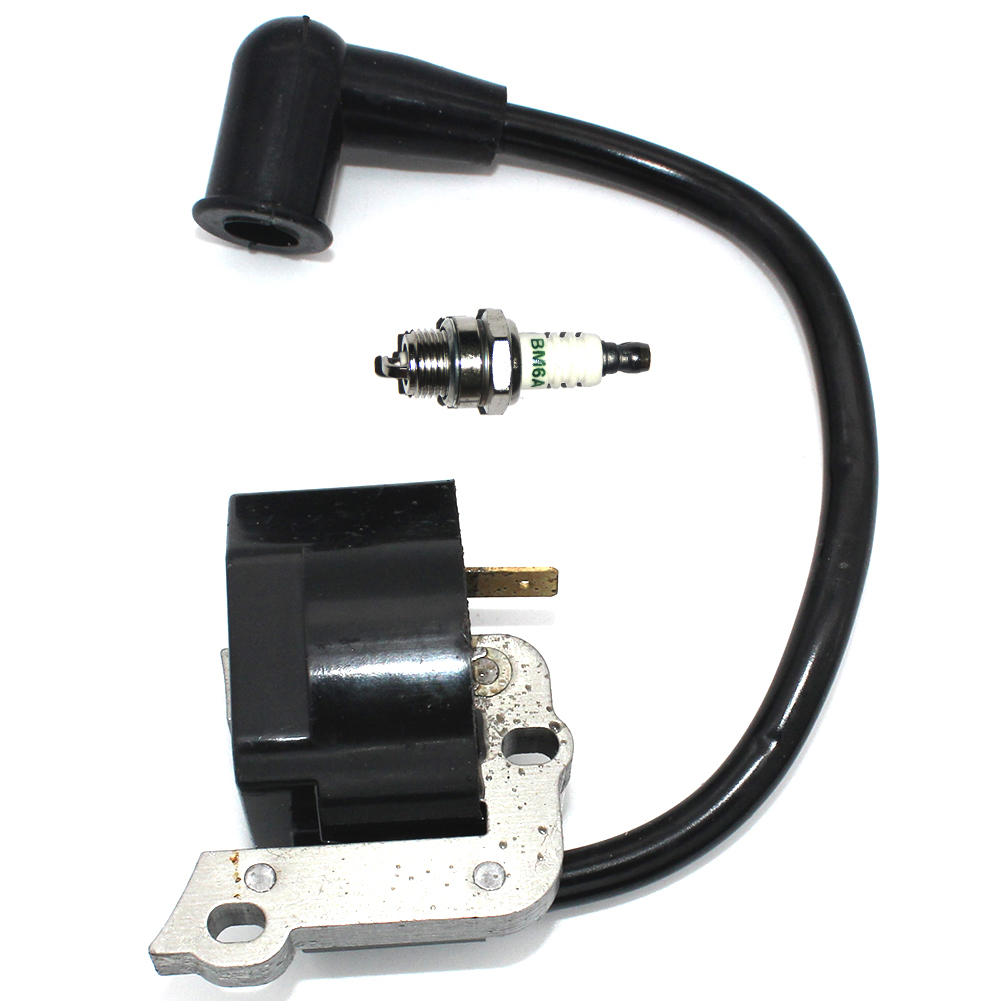

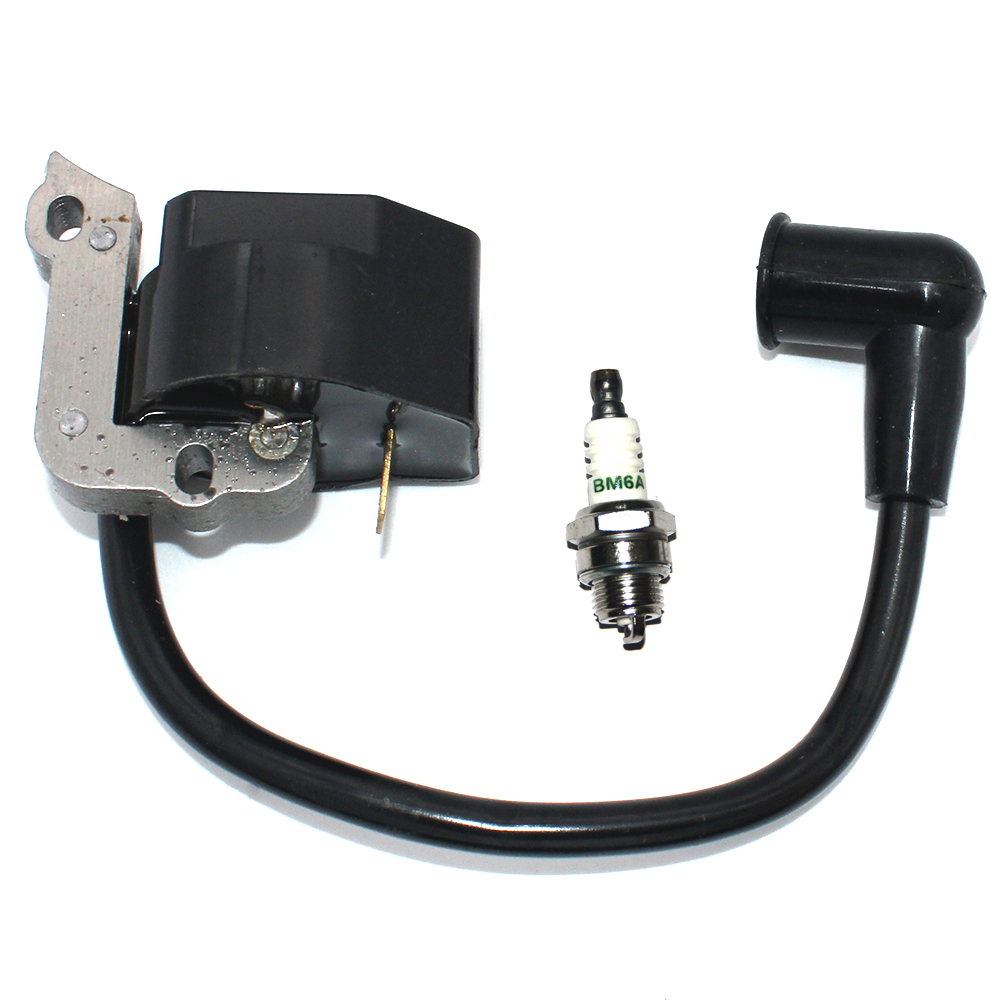

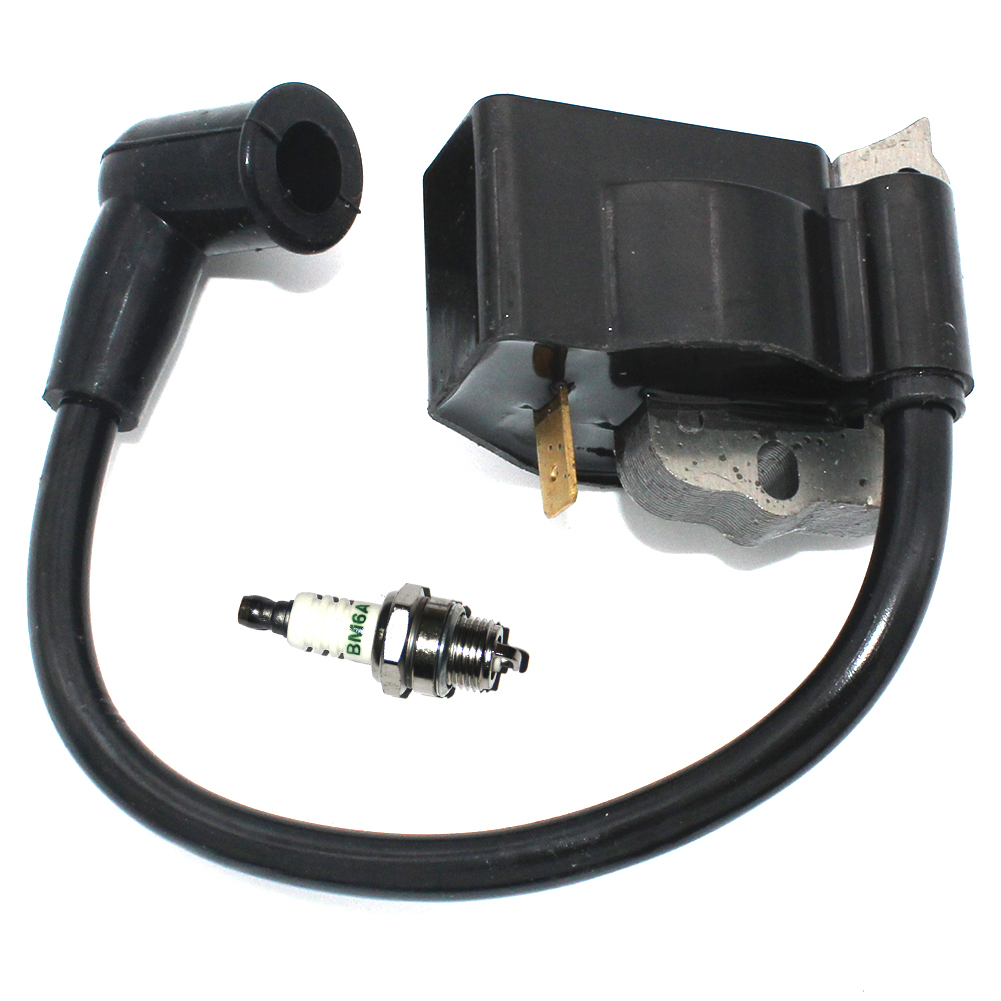

Ignition Coil Module BM6A Installation Instructions

Tools Required:

1. Screwdrivers:

   • Flathead screwdriver
   • Phillips screwdriver

2. Wrench Set:

   • A set of metric wrenches or socket set

3. Pliers:

   • Needle-nose pliers or regular pliers

4. Clean Cloth:

   • For cleaning any debris or dirt

5. Safety Gear:

   • Gloves
   • Safety goggles

Installation Steps:

1. Safety First:

   • Ensure the equipment is turned off and disconnected from the power source. Wear safety gloves and goggles before starting the installation.

2. Remove the Old Ignition Coil:

   • Use the screwdriver to remove screws securing the old ignition coil.
   • Disconnect the wiring harness from the old ignition coil gently using pliers if necessary.

3. Clean the Area:

   • Use a clean cloth to wipe any dirt or debris around the ignition coil area to ensure a clean installation.

4. Install the New Ignition Coil Module:

   • Connect the wiring harness to the new ignition coil. Make sure it clicks into place securely.
   • Position the new ignition coil in the designated area and secure it with the screws removed earlier.

5. Double-check Connections:

   • Ensure all connections are tight and the ignition coil is securely mounted.

6. Reassemble and Test:

   • Reassemble any parts that were removed during the installation.
   • Reconnect the equipment to the power source and start it to test the ignition for smooth performance.

Conclusion:
Following these instructions will help you install the Ignition Coil Module BM6A successfully. Enjoy a smooth-running engine and improved fuel efficiency for your outdoor equipment!
