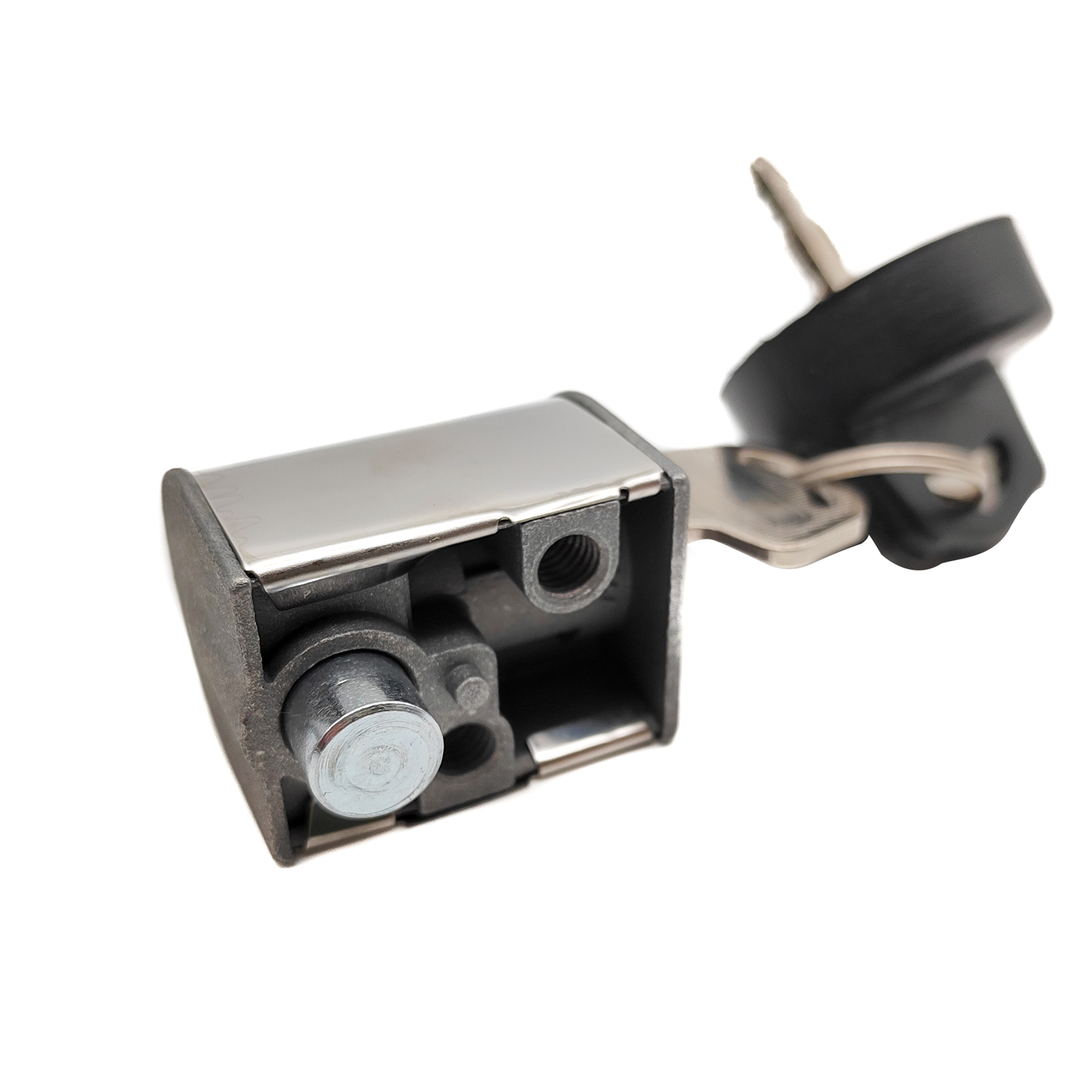

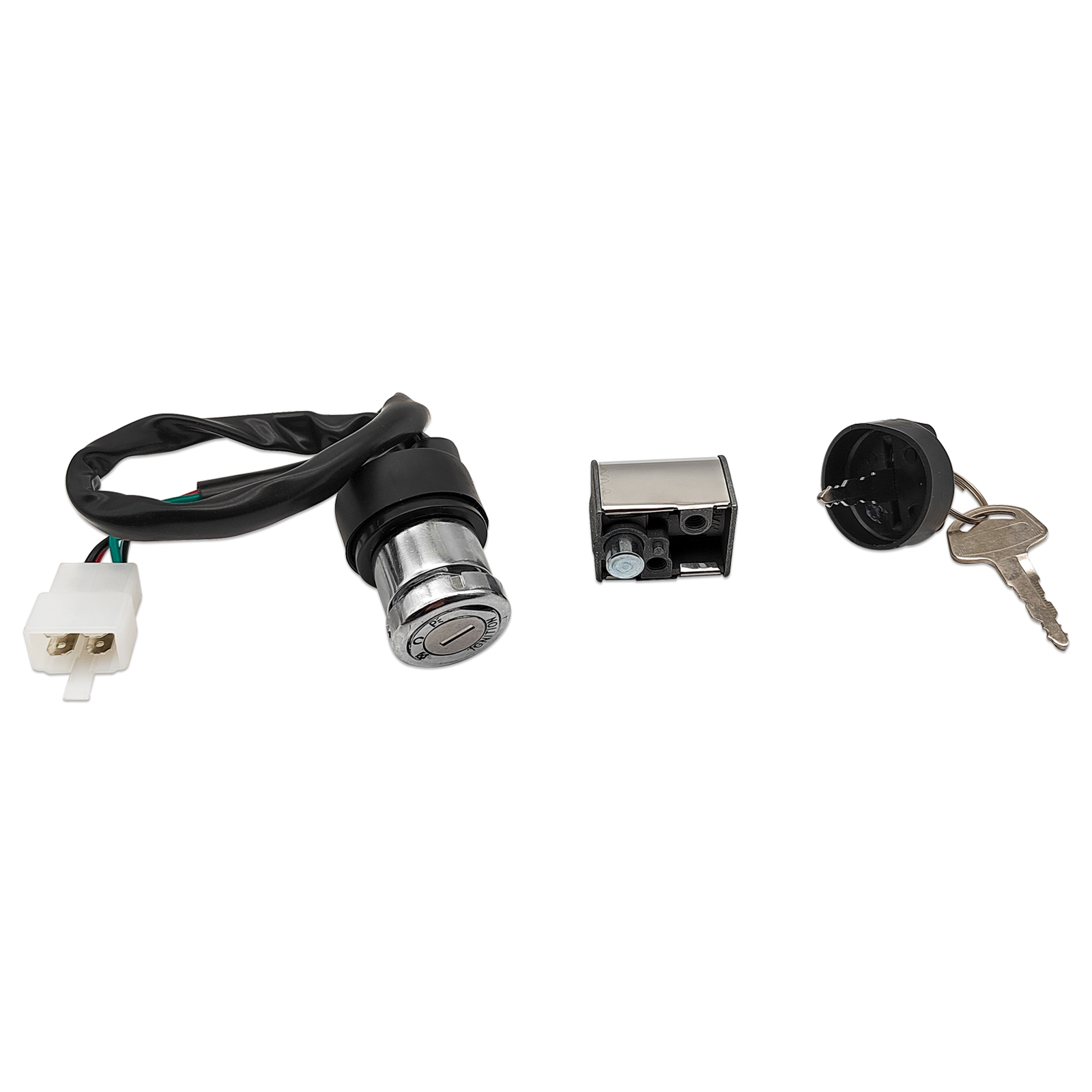

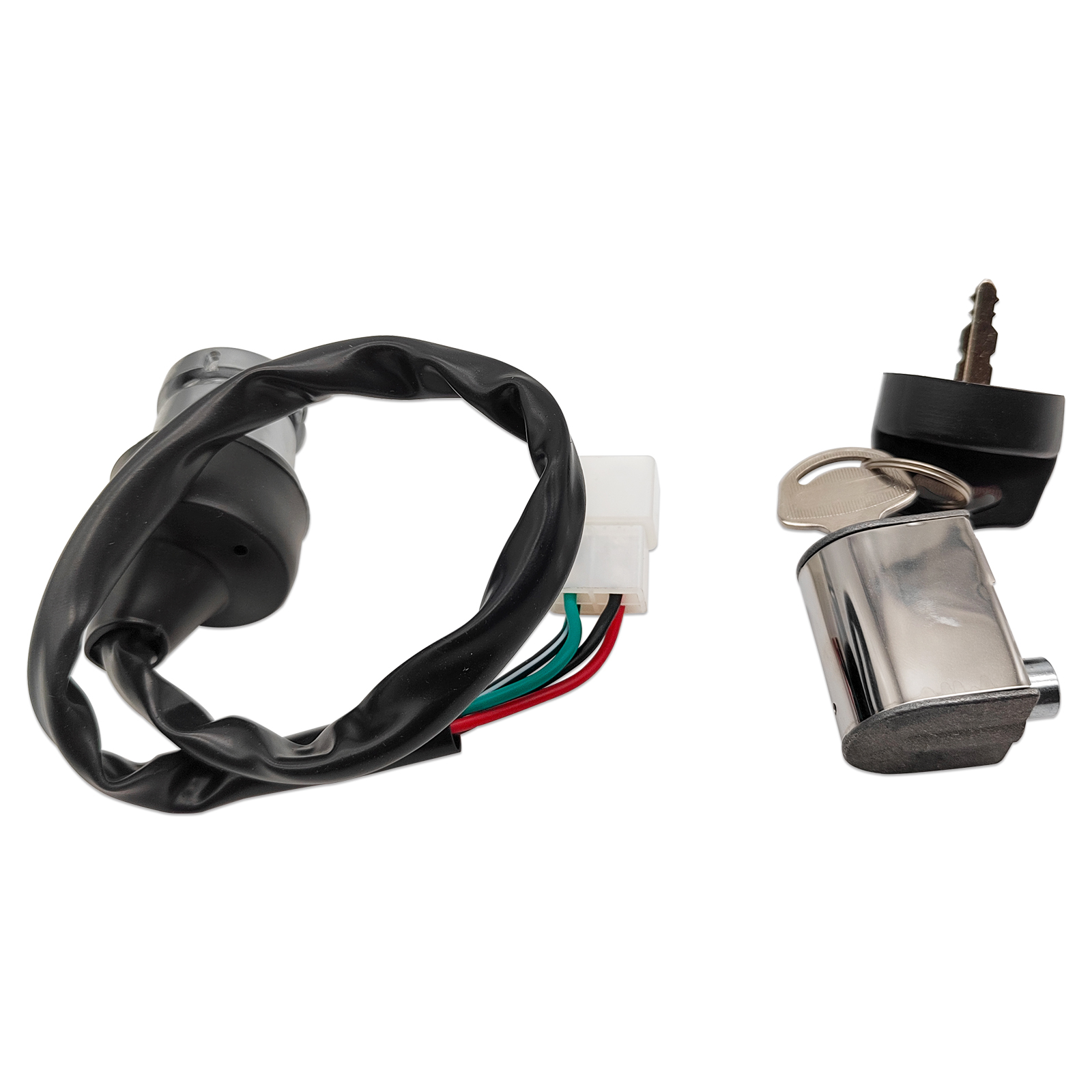

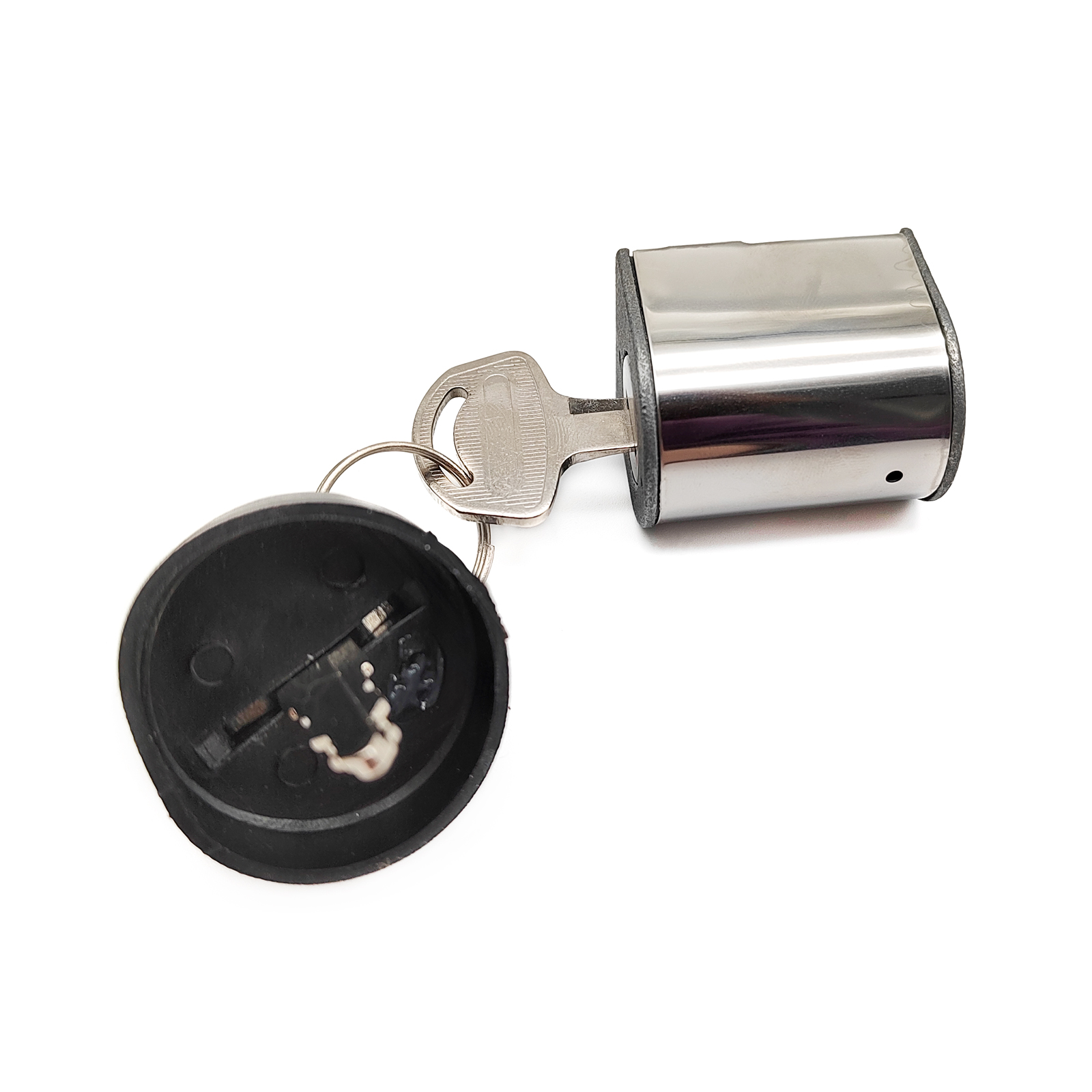

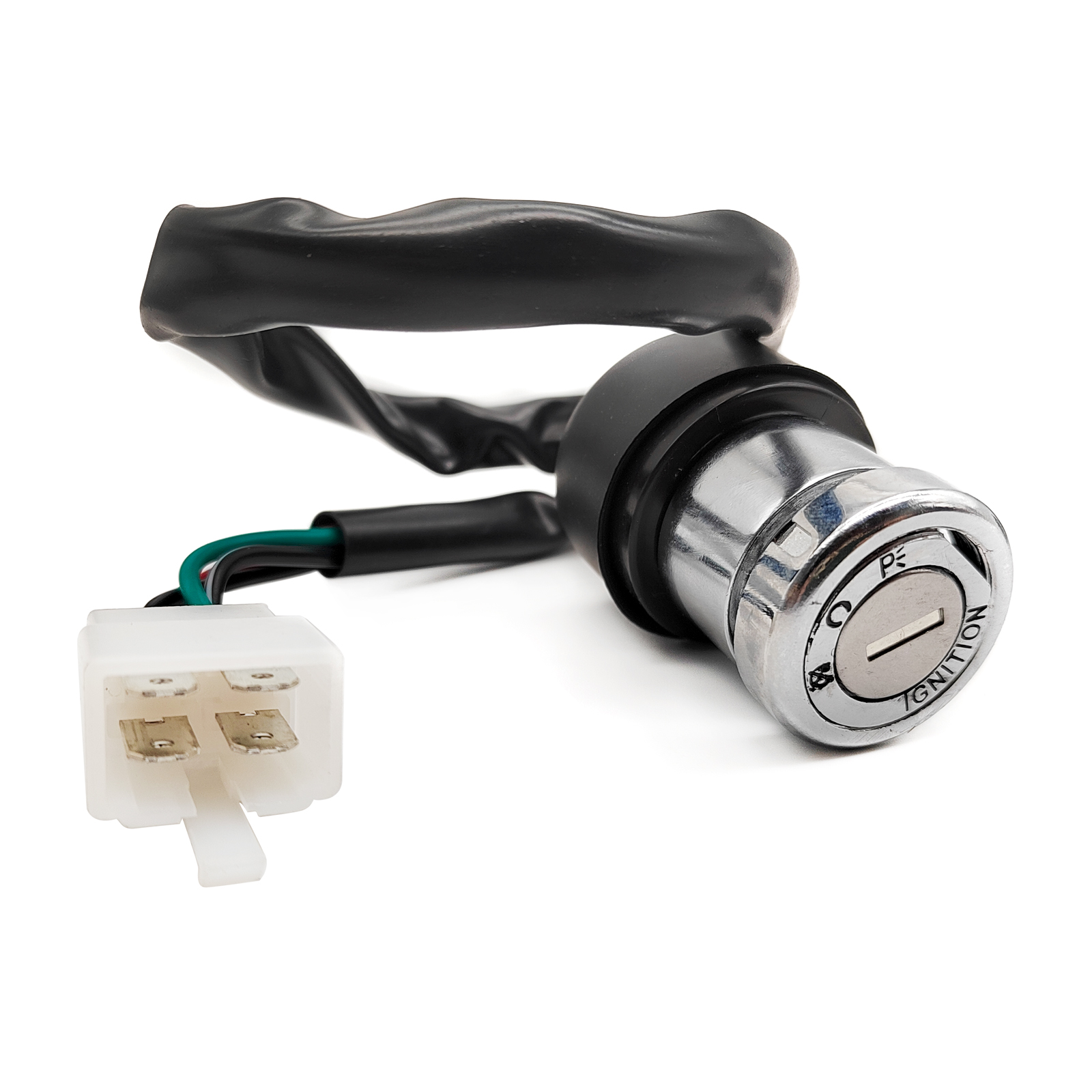

Ignition Key Switch Lock Installation Guide for 500CC and 600CC ATVs Compatible with Models X5 and X6
Introduction:
This ignition key switch lock is designed specifically for 500CC and 600CC ATVs, ensuring durability and compatibility with various models including X5 and X6. This guide will help you with the installation process.
Tools Required:
Before beginning the installation, gather the following tools:
- Flathead screwdriver
- Phillips screwdriver
- Wire cutters/strippers
- Electrical tape
- Socket wrench set
- Safety goggles
- Gloves (optional)
Installation Steps:
-
Safety First:
- Ensure the ATV is turned off and in a stable position before starting the installation.
- Wear safety goggles and gloves for added protection during the process.
-
Remove the Old Ignition Switch:
- Use the Phillips screwdriver to remove any screws securing the old ignition switch in place.
- Disconnect the wiring harness connected to the old switch.
-
Prepare for Installation:
- If necessary, use wire cutters/strippers to prepare the wiring. Make sure to remove any old electrical tape or insulation.
-
Connect the New Ignition Switch:
- Connect the wiring harness from the new ignition key switch lock to the corresponding wires on the ATV.
- Ensure that the connections are secure and properly insulated using electrical tape.
-
Install the New Ignition Switch:
- Position the new ignition switch in the same location as the old one.
- Use the screws removed earlier to secure the new switch in place.
-
Test the Ignition:
- Turn the ignition key to test whether the switch functions correctly, ensuring that it can start the ATV and power other electrical components.
-
Final Touches:
- If everything is functioning properly, tidy up any loose wiring and securely fasten any covers or panels you may have removed during installation.
- Dispose of any old parts and packaging properly.
Conclusion:
With the right tools and careful installation, your new ignition key switch lock will enhance the security, functionality, and convenience of your 500CC or 600CC ATV. Enjoy your ride with peace of mind!
