Installation Instructions for 77mm STD Piston Rings for 250cc Off-road Motorcycles

Product Overview:

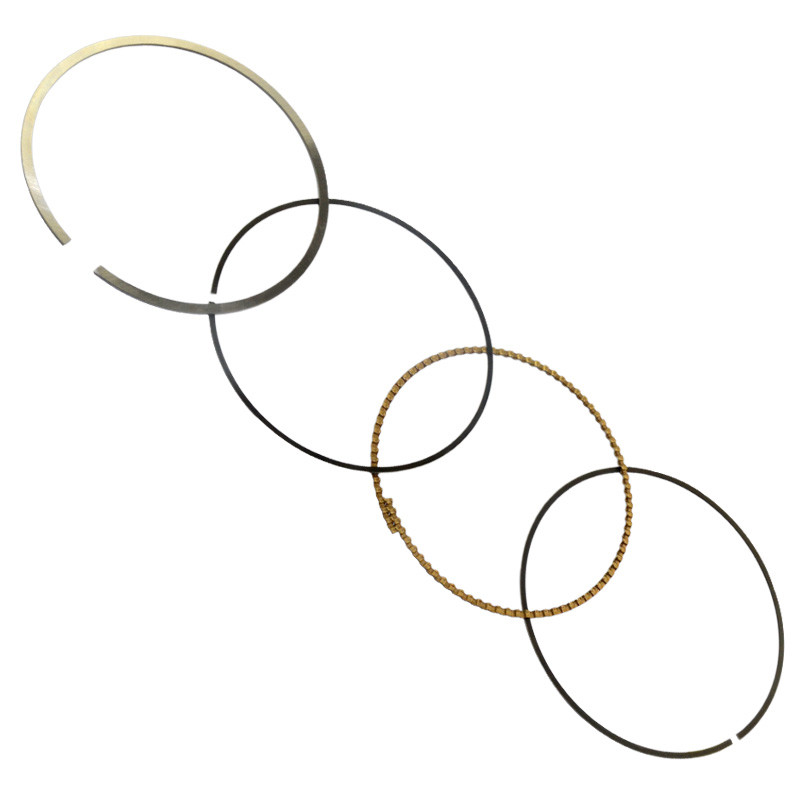

The 77mm standard piston rings are specifically designed for 250cc off-road motorcycles, compatible with models from 2004 to 2014. These piston rings are engineered to enhance engine compression, improve power output, and boost fuel efficiency, ensuring an exceptional riding experience.

What You'll Need:

Before you begin the installation process, make sure you have the following tools and materials ready:

1. Basic Tools:

   • Socket set (with ratchet)
     -Torque wrench
     -Wrench set
   • Screwdrivers (flathead and Phillips)
     -Pliers
   • Ring compressor tool (recommended)

2. Cleaning Materials:

   • Engine degreaser or cleaner
   • Towels or rags
   • Brake cleaner (optional)

3. Gaskets and Sealants:

   • New cylinder head gasket (recommended)
   • High-temperature silicone sealant (if needed)

4. Lubrication:

   • Engine oil for coating piston rings

5. Safety Equipment:

   • Gloves
   • Safety goggles

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and secure it with a stand.
   • Disconnect the battery for safety.

2. Removal of Old Piston Rings:

   • Remove the cylinder head and cylinder from the engine.
   • Carefully remove the old piston and rings from the connecting rod.
   • Clean the piston and cylinder walls thoroughly.

3. Installing New Piston Rings:

   • Apply a light coat of engine oil to the new piston rings to ensure proper seating.
   • Use the ring compressor tool to install the new piston rings onto the piston. Ensure the rings are positioned correctly according to the markings.
   • Carefully insert the piston into the cylinder, making sure that the rings compress evenly.

4. Reassemble:

   • Reinstall the cylinder and torque the bolts to the manufacturer’s specifications.
   • Install the cylinder head with a new gasket and torque it securely.
   • Reconnect any components that were removed during disassembly.

5. Finishing Up:

   • Reconnect the battery.
   • Start the motorcycle and monitor for any unusual noises or leaks.

Safety Note:
Always wear safety equipment during installation to protect yourself. If you are unsure about any step, consult a professional mechanic.

With the right tools and careful attention, you can successfully replace the piston rings and enhance the performance of your motorcycle for an improved riding experience!
