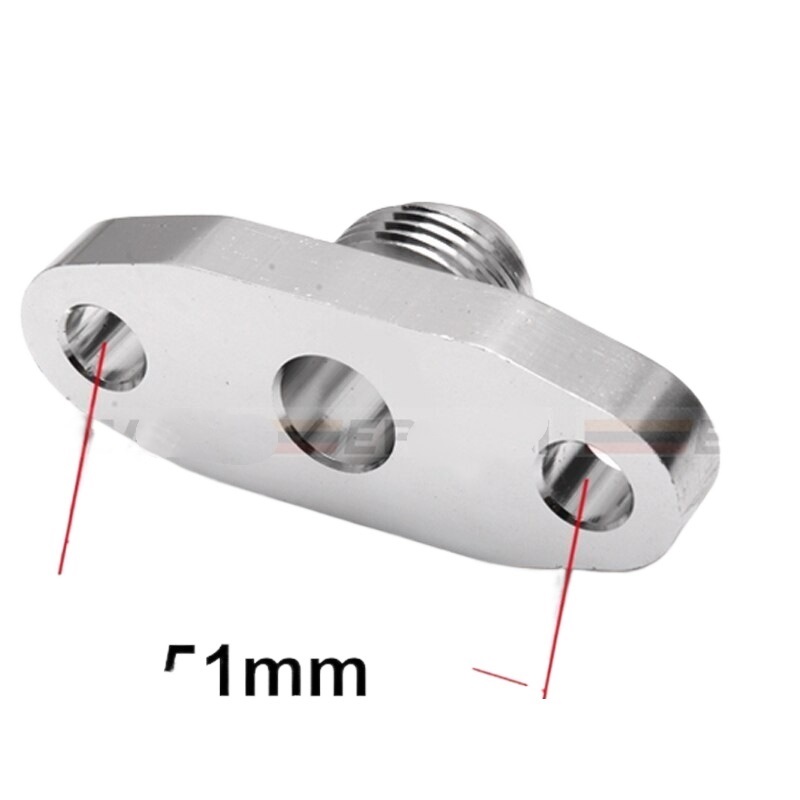

Installation Instructions for Turbo Oil Drain Return Flange 10AN for GT28 GT30 GT35 Turbochargers

Compatibility:
This Turbo Oil Drain Return Flange is compatible with GT28, GT30, and GT35 turbochargers. It is suitable for a wide range of modified vehicles and applications.

Installation Tools Required:

1. Wrenches: A set of metric wrenches will be necessary for securing the bolts.
2. Socket Set: A 10mm socket or the appropriate size for M8 bolts.
3. Torque Wrench: For ensuring that the bolts are tightened to the manufacturer's recommended specifications.
4. Pliers: To assist with tightening any clamps if needed.
5. Sealant or Gasket Maker: To ensure a leak-free installation (if required).
6. Rags: For any spills during installation.

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and show adequate safety measures, such as disconnecting the battery.
   • Clear the installation area for easy access.

2. Remove Existing Oil Drain:

   • If replacing an existing oil drain, remove it by loosening the bolts using the wrench or socket.
   • Clean the mating surfaces thoroughly to avoid leaks.

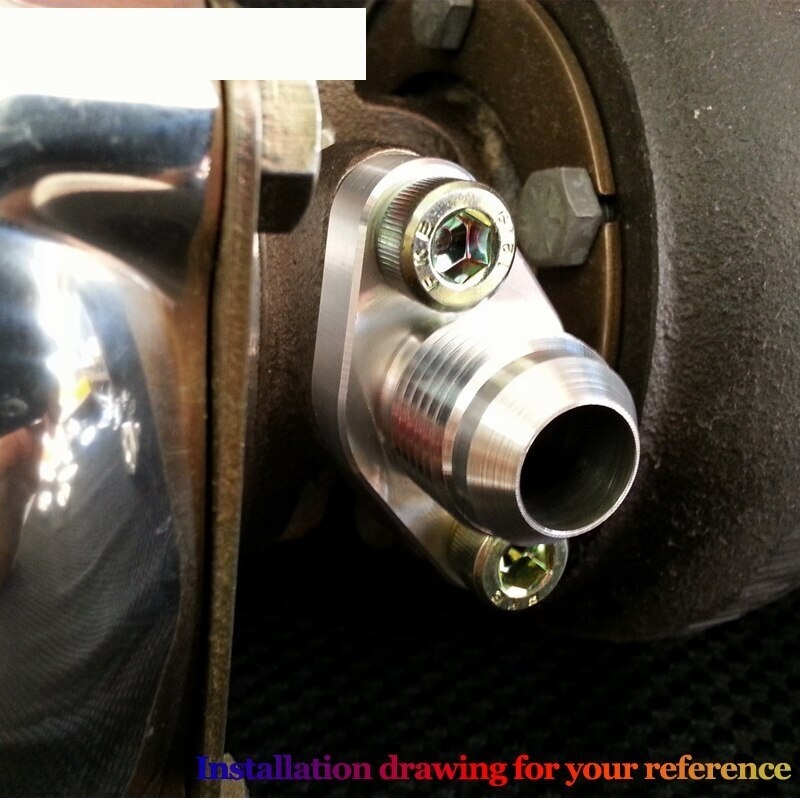

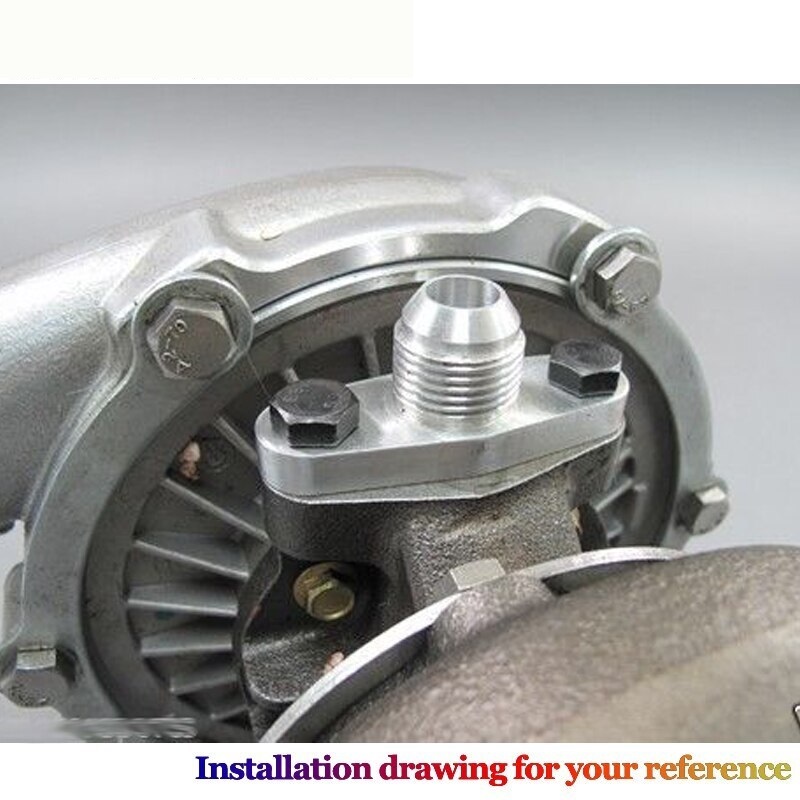

3. Position the Turbo Oil Drain Return Flange:

   • Place the Turbo Oil Drain Return Flange in position, aligning the M8 holes with the mounting surface on the turbocharger.

4. Secure the Flange:

   • Insert the M8 bolts into the holes and hand-tighten them to secure the flange.
   • Use a torque wrench to tighten the bolts to the recommended specifications (typically around 20-25 Nm, but refer to your turbo's manual).

5. Attach Oil Line (if applicable):

   • Connect the oil line to the flange, ensuring a secure fit (consult the specific line required for your turbo setup).

6. Check for Leaks:

   • After installation, double-check all connections and fittings.
   • Start the engine and observe for any oil leaks during operation.

7. Final touches:

   • Reconnect the battery and secure any loose wiring or hoses that may have been moved during installation.

Note:
Always refer to the manufacturer’s manual for any specific instructions or torque specifications related to your specific turbocharger model or application.

With this product, you'll enjoy a compact design that saves space without compromising nearby components and ensures efficient oil drainage for optimal turbo performance.
