Installation Instructions for the 26mm Carburetor Compatible with 125cc and 150cc 4-Stroke Scooters

Overview:

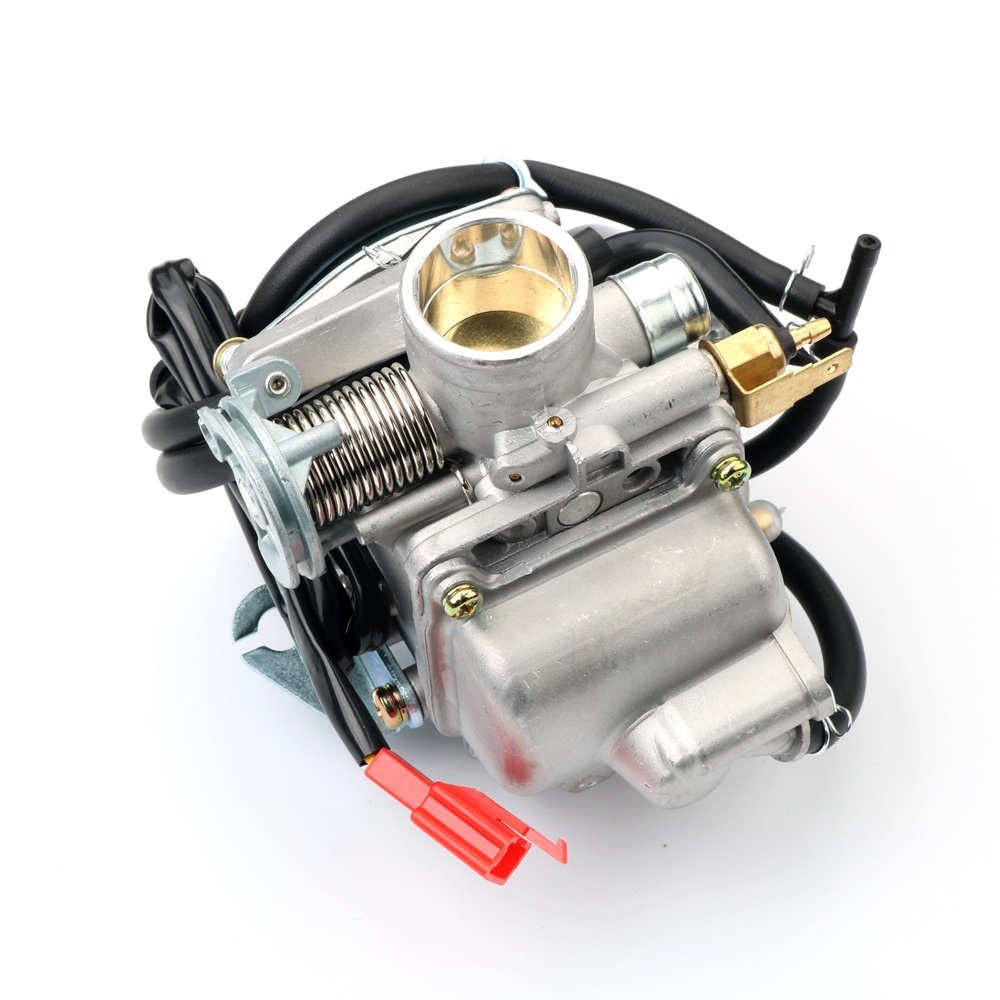

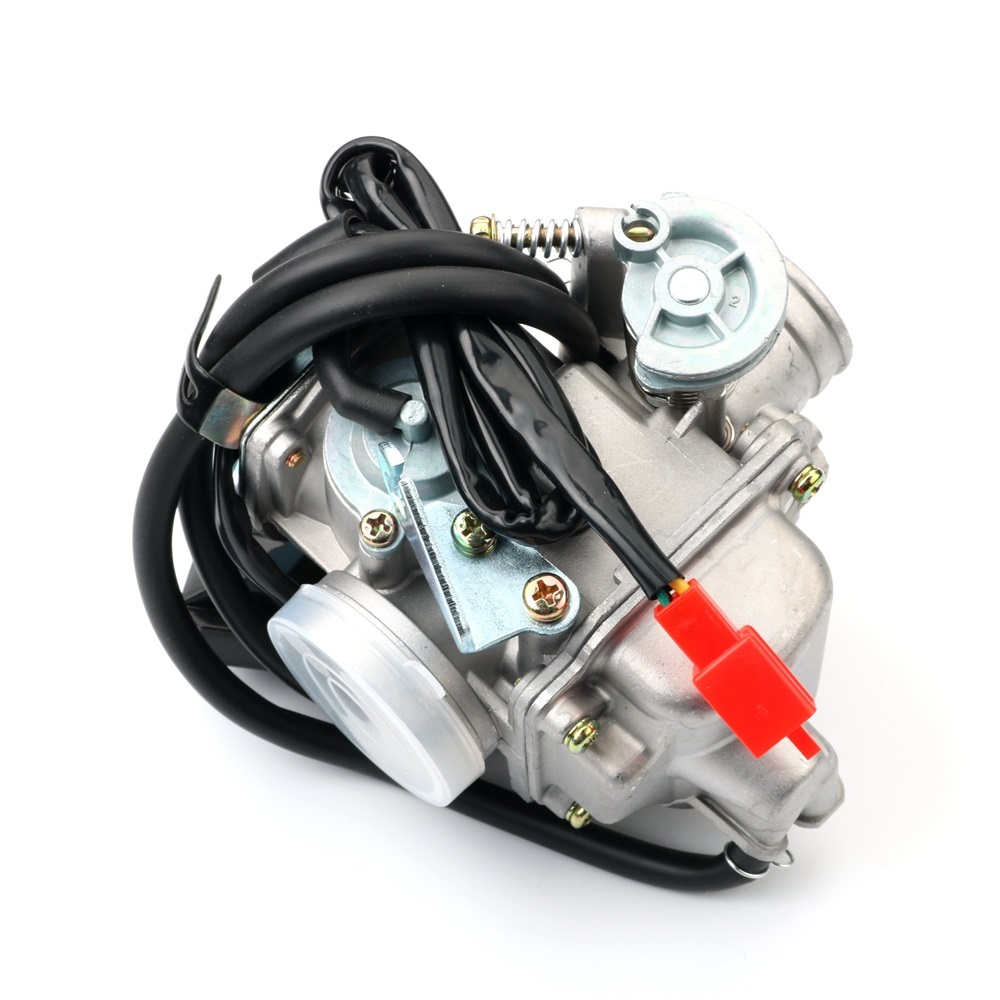

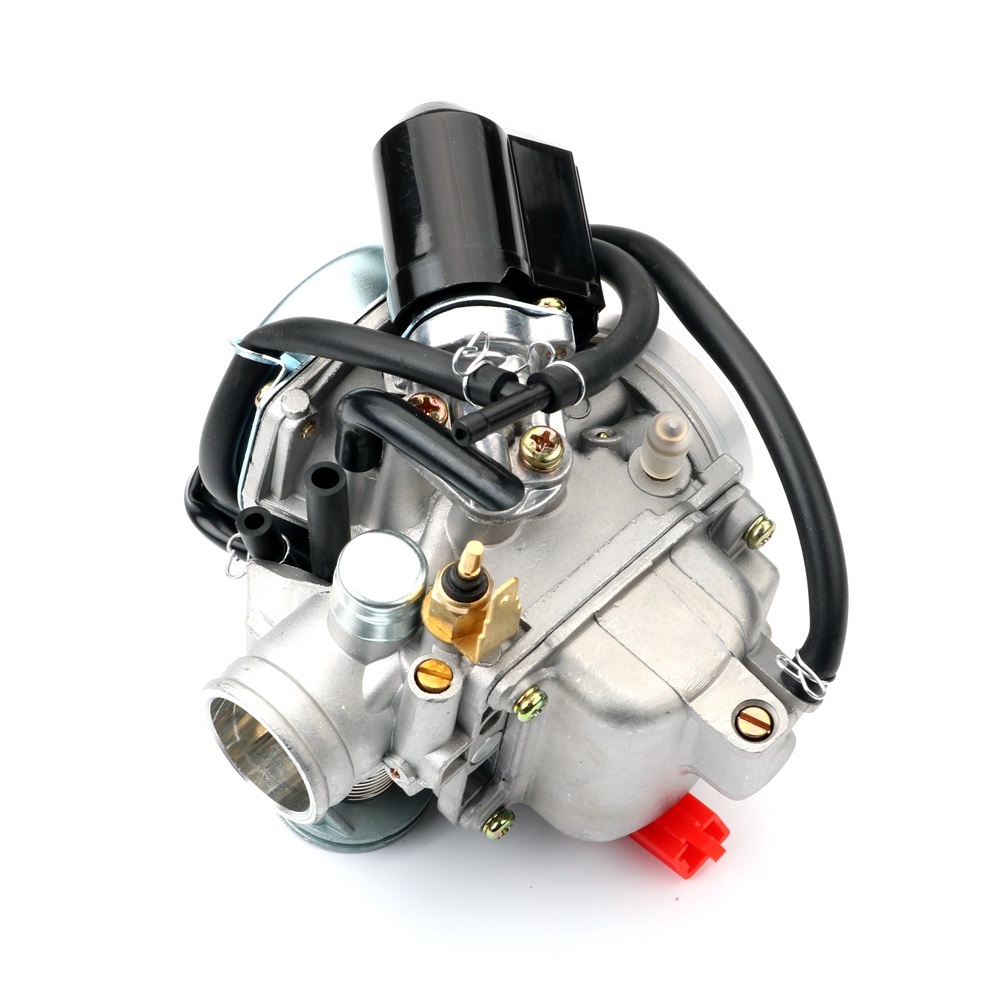

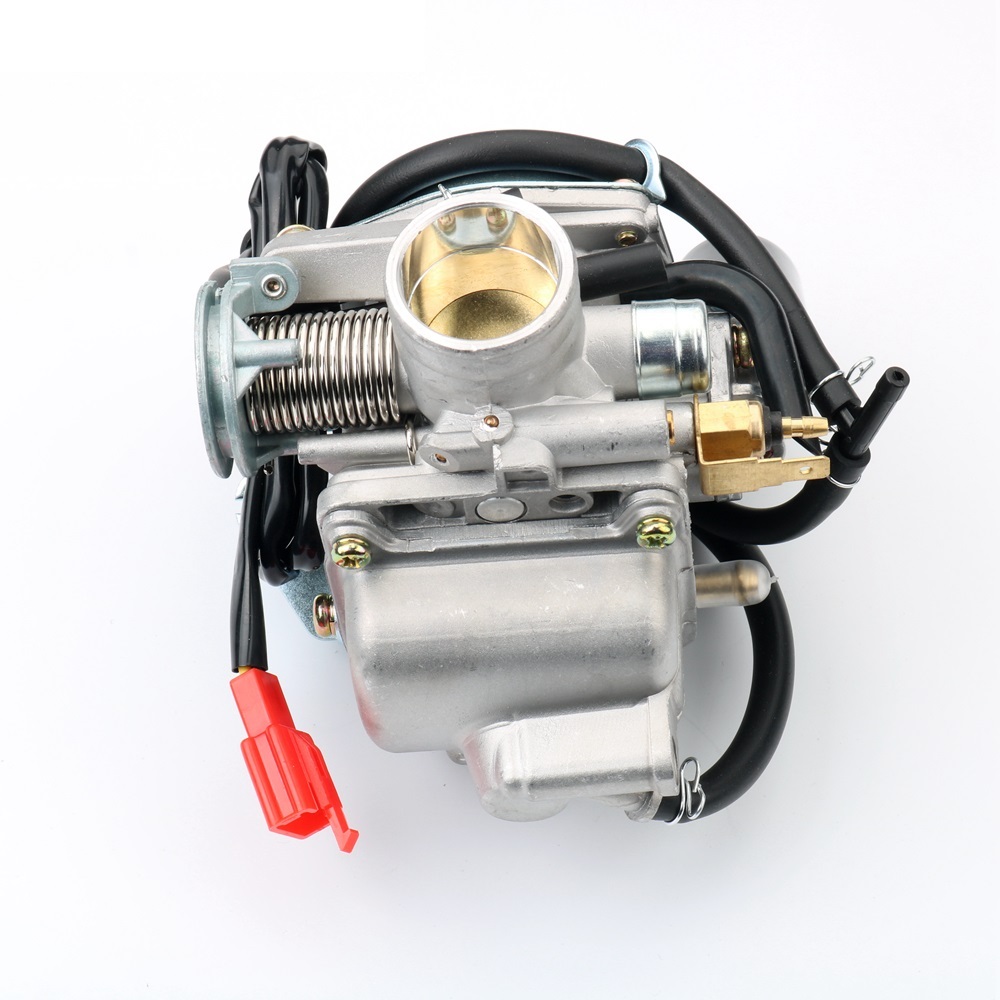

This 26mm carburetor is designed specifically for 125cc and 150cc 4-stroke scooters, providing excellent power output and fuel efficiency. It is compatible with GR125 and Symphony models, ensuring a seamless replacement. This product is a suitable replacement for original models 16100-Z7A- 000 and PD24J.

Tools Needed:

1. Basic Hand Tools:

   • Adjustable wrench or socket set
   • Screwdriver set (both flathead and Phillips)

2. Specialized Tools (if necessary):

   • Torque wrench (for precise installation)
     -Pliers

3. Cleaning Supplies:
   -Carburetor cleaner

   • Cloth or rags

4. Safety Equipment:

   • Gloves
   • Safety goggles

Installation Steps:

1. Preparation:

   • Ensure the scooter engine is off and cool.
   • Disconnect the negative terminal of the battery for safety.

2. Remove the Old Carburetor:

   • Locate the existing carburetor on your scooter.
   • Use the appropriate screwdriver to loosen and remove any clamps or screws securing the carburetor.
   • Carefully detach fuel lines and throttle cables from the old carburetor.
   • Remove the old carburetor from the engine.

3. Clean the Area:

   • Use carburetor cleaner and cloth to clean the mounting area and ensure no debris falls into the engine.

4. Install the New Carburetor:

   • Position the new 26mm carburetor in place.
   • Reconnect the fuel lines and throttle cables securely.
   • Tighten all clamps and screws to secure the carburetor to the engine.

5. Final Checks:

   • Reconnect the negative battery terminal.
   • Double-check all connections to ensure there are no loose components.

6. Start the Engine:

   • Start your scooter and allow it to warm up.
   • Check for any leaks and ensure the engine runs smoothly.

Important Notes:

• If you experience any issues during installation, consult a professional mechanic.
• Always follow safety precautions when working on your scooter.

Thank you for choosing our 26mm carburetor. Enjoy enhanced performance and reliability in your scooter!
