Installation Instructions for 78mm Motorcycle Engine Parts for KLX300, LX300, and 300DS

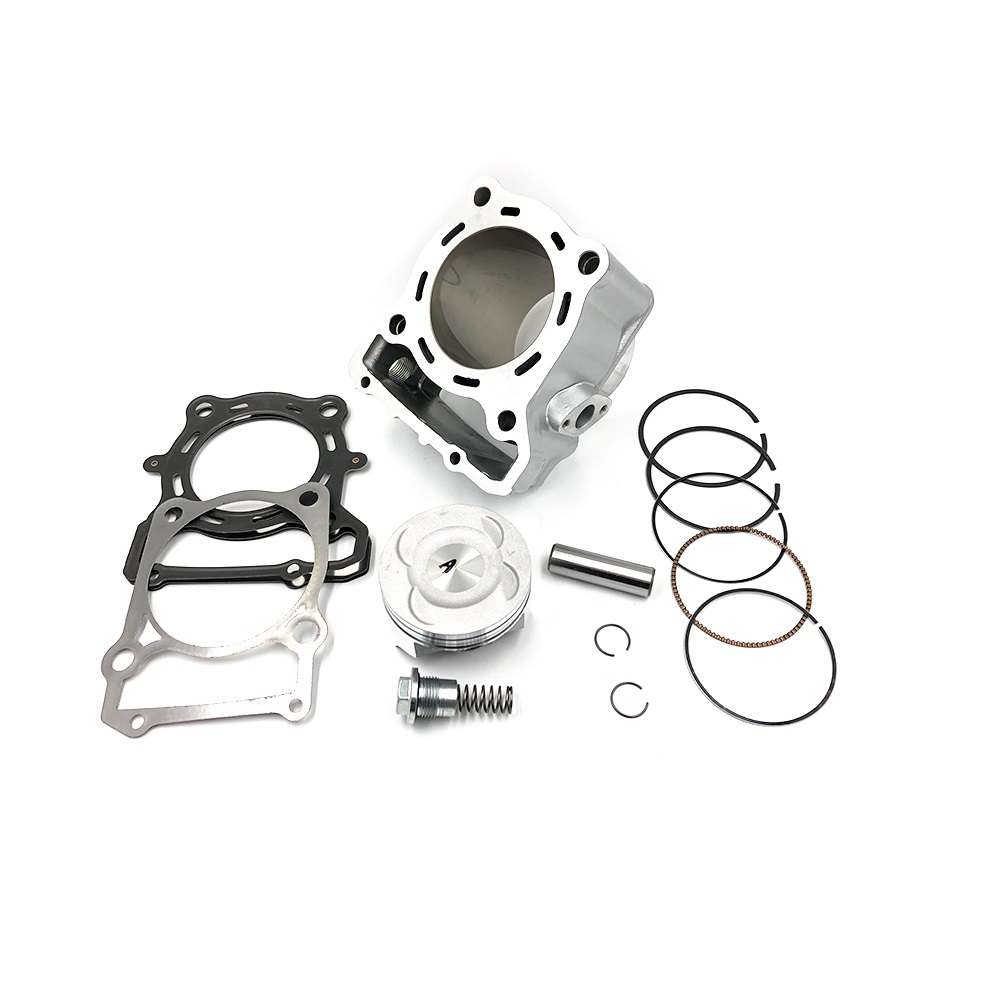

Included Components:

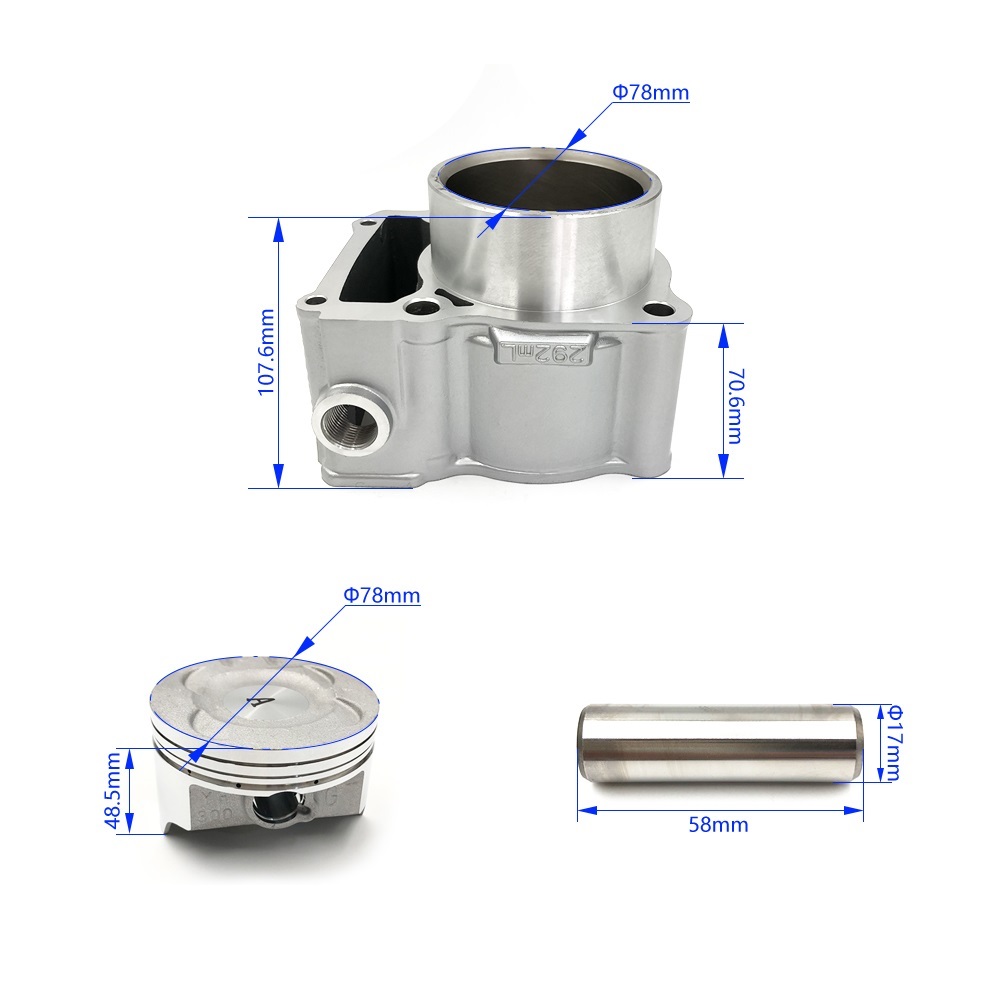

• Cylinder Block

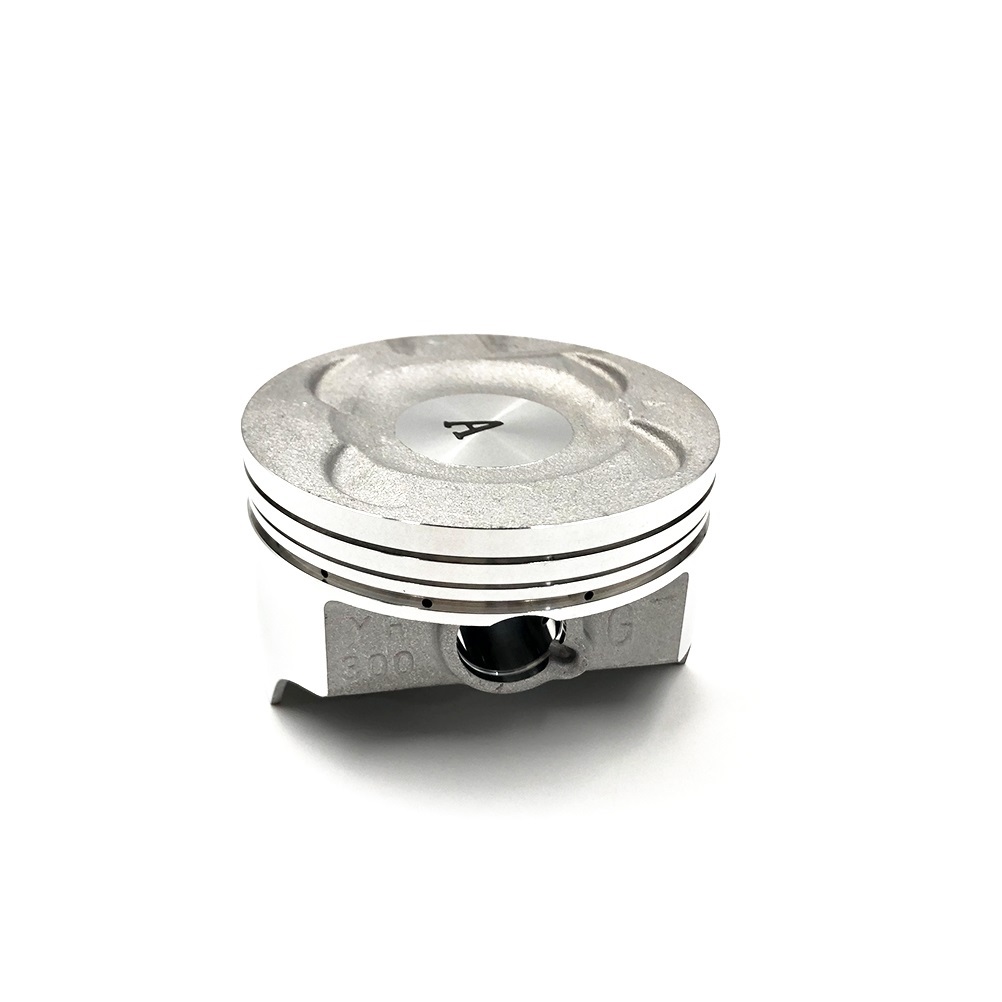

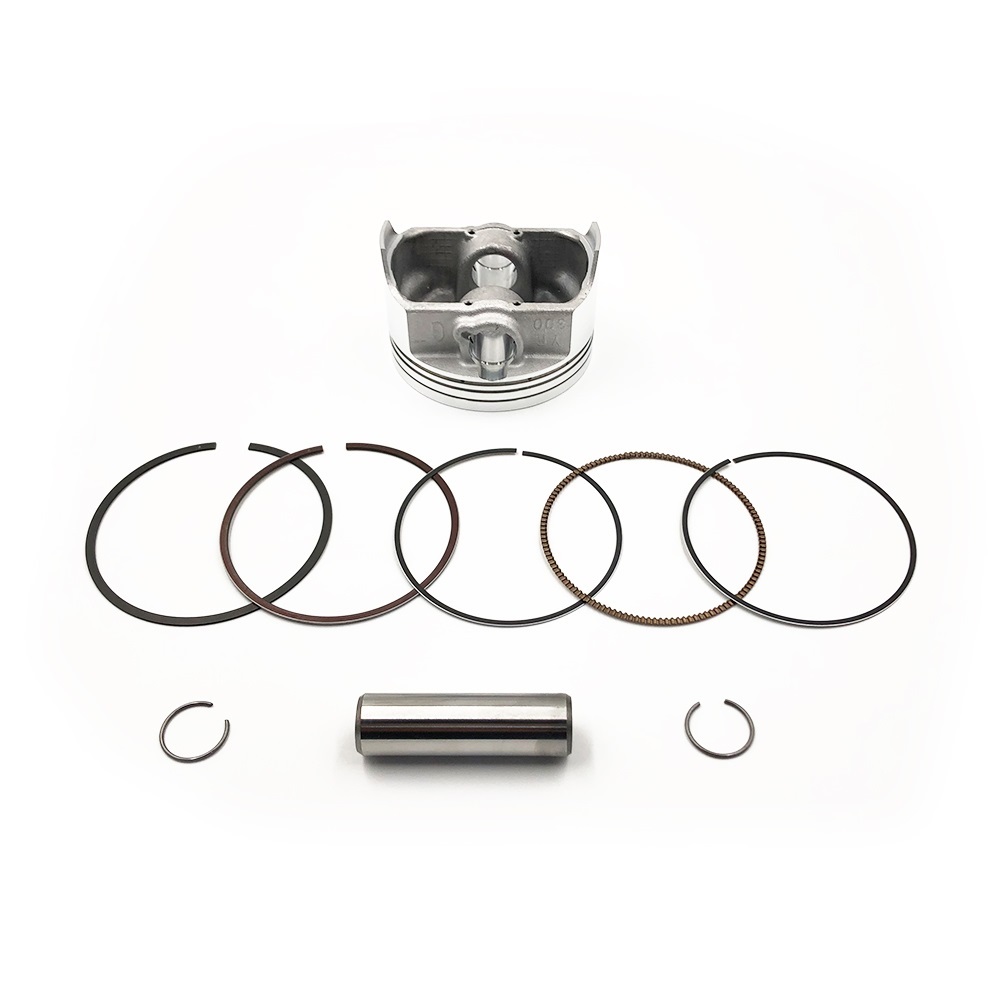

• Piston Head

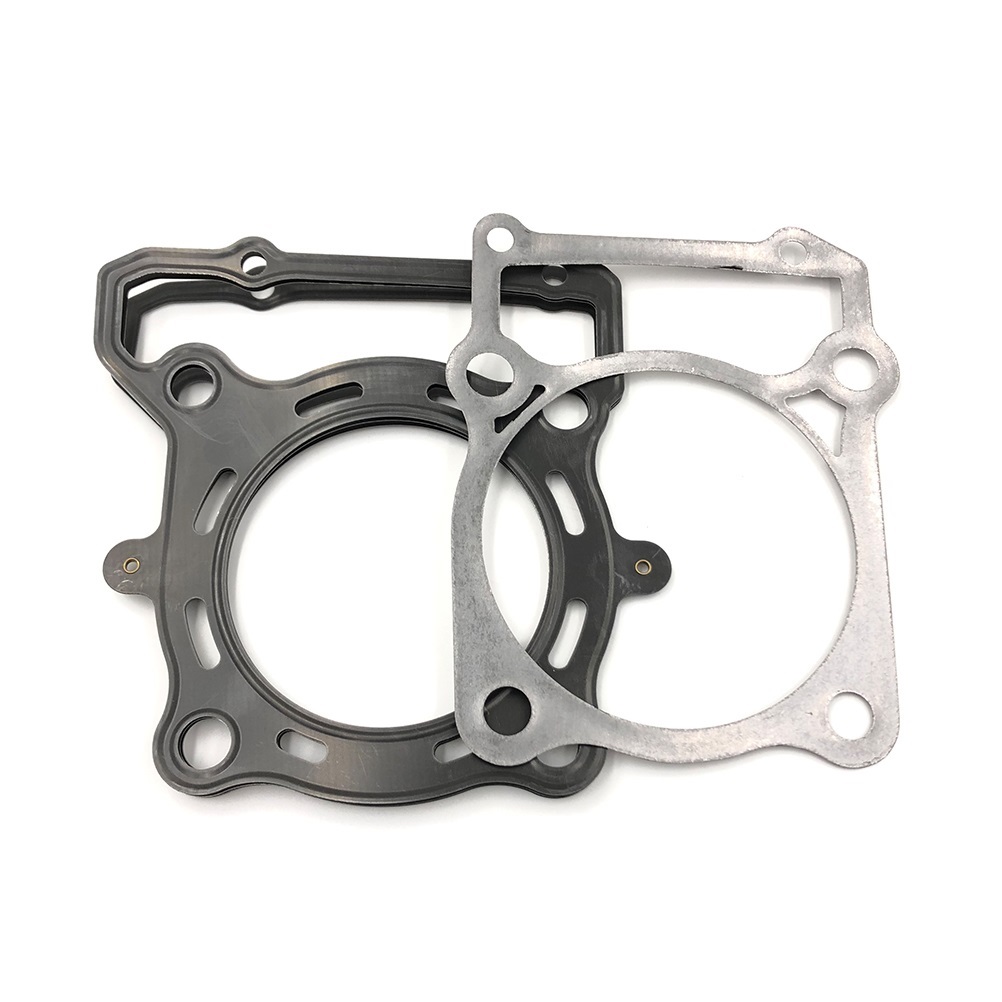

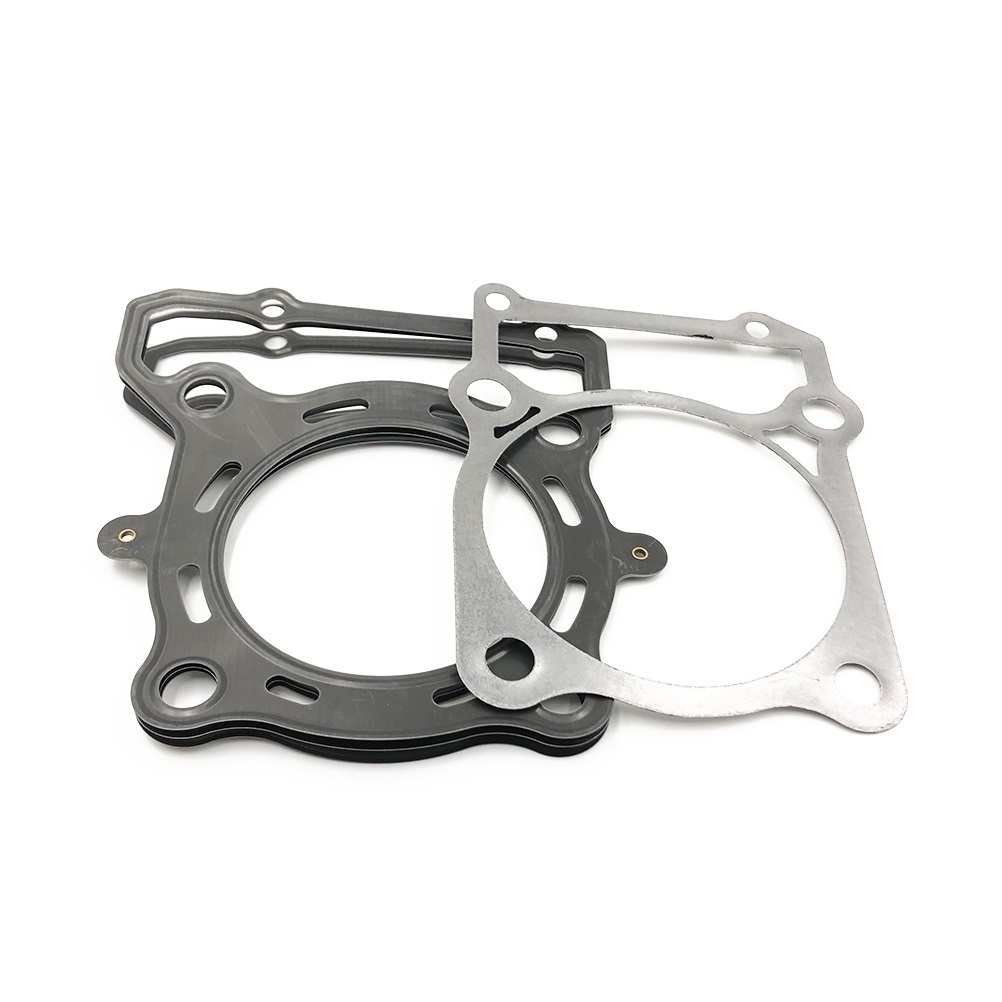

• Gasket Kit

Compatibility:
This kit is designed to be compatible with KLX300, LX300, and 300DS models, ensuring a perfect fit and enhanced performance.

Materials:
The parts are made from wear-resistant materials, strengthening engine performance and extending service life for reliable support during your rides.

Tools Required:
Before you begin the installation process, please gather the following tools:

1. Socket Set - Various sizes (including 8mm, 10mm, and 12mm)
2. Torque Wrench - For proper tightening of bolts
3. Screwdrivers - Flathead and Phillips
4. Pliers - For gripping and holding parts
5. Ratcheting Wrench - If available, for easier access to tight spaces
6. Piston Ring Compressor - To fit piston rings into the cylinder block
7. Rags or Shop Towels - For cleaning and wiping surfaces
8. Engine Assembly Lubricant - To lubricate moving parts during installation
9. Digital Caliper or Measuring Tool - For measuring clearances if necessary
10. ** gasket Scraper** - To clean off old gasket material from surfaces
11. Safety Gear - Gloves and safety goggles

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface.
   • Disconnect the battery and drain the coolant or oil if necessary.

2. Removing Old Parts:

   • Carefully remove the existing cylinder head and cylinder block.
   • Clean the mounting surfaces to remove any dirt or old gasket material.

3. Installing the New Components:

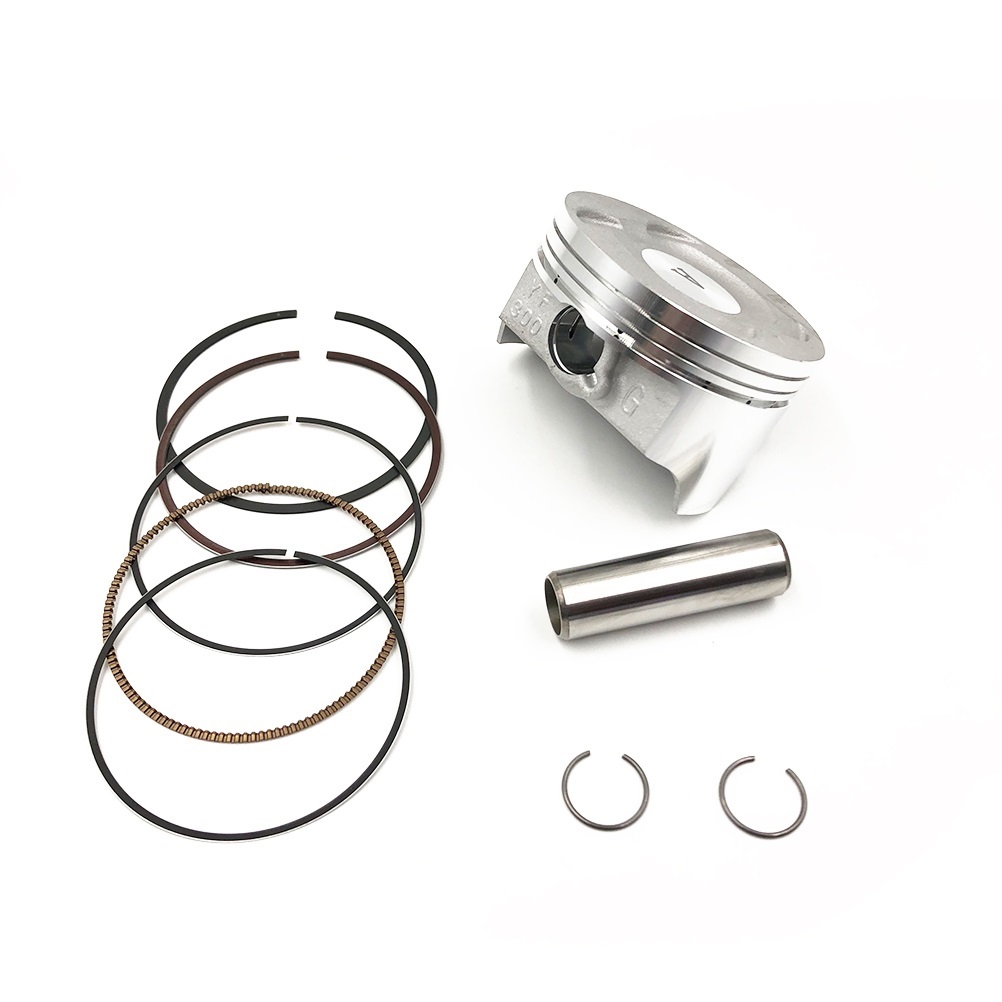

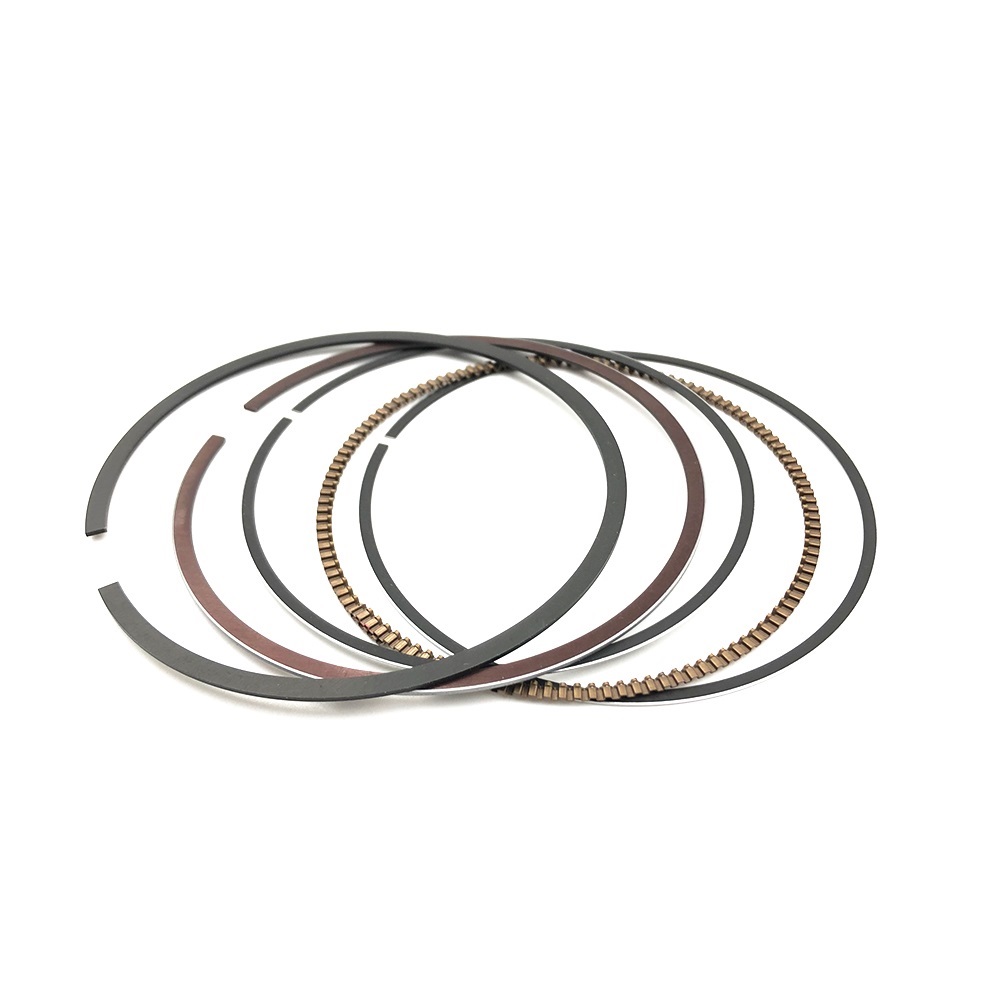

   • Apply assembly lubricant on the piston and piston rings.
   • Use the piston ring compressor to insert the piston into the cylinder block.
   • Place the newly designed cylinder block onto the engine case, ensuring the gasket is properly aligned.

4. Securing the Cylinder Block:

   • Tighten the bolts in a crisscross pattern to ensure even pressure.
   • Use the torque wrench to tighten bolts to the manufacturer's specified torque settings.

5. Installing the Piston Head:

   • Attach the piston head securely according to the guidelines provided.

6. Final Checks:

   • Reinstall any other components removed during installation.
   • Double-check all bolts and connections to ensure everything is secure.

7. Testing:

   • Reconnect the battery, fill with oil/coolant, and start the engine to check for proper operation.

Remember to follow safety precautions throughout the installation process and consult the vehicle’s service manual for specific details related to your model. Enjoy enhanced performance with your new engine parts!
