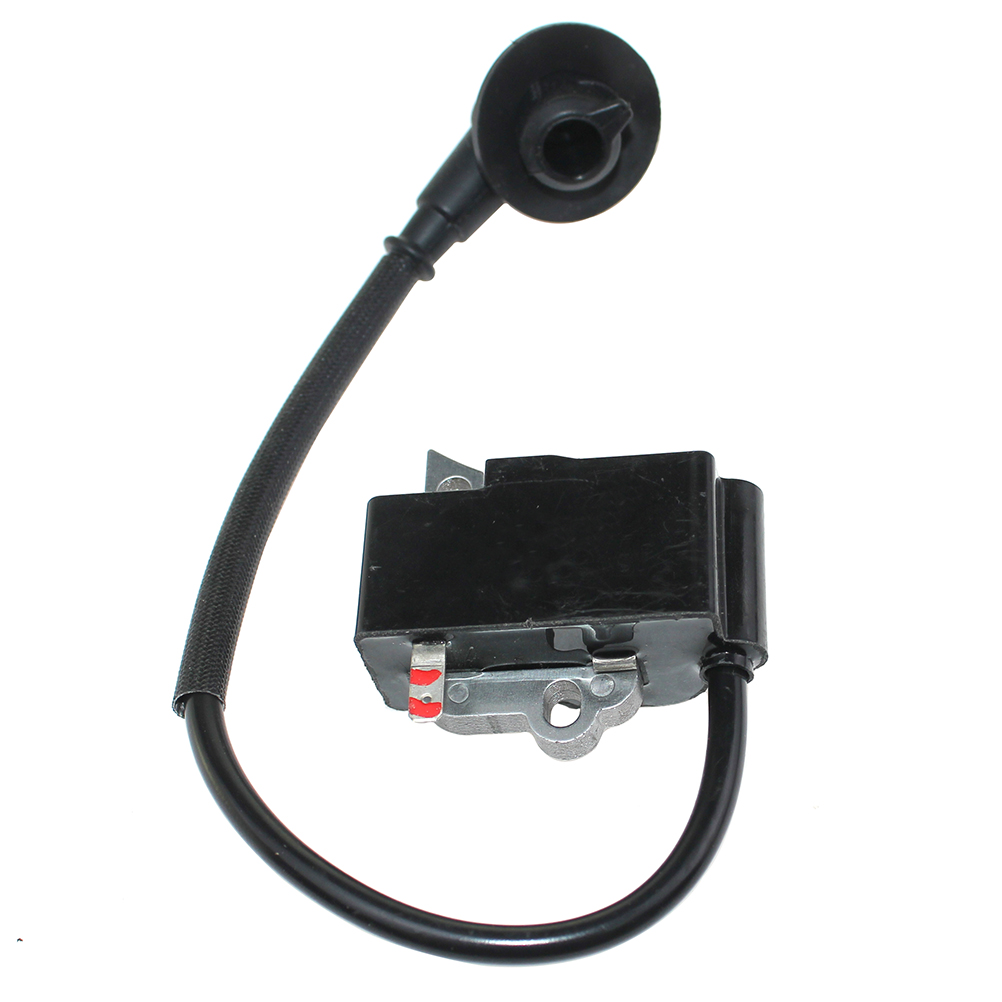

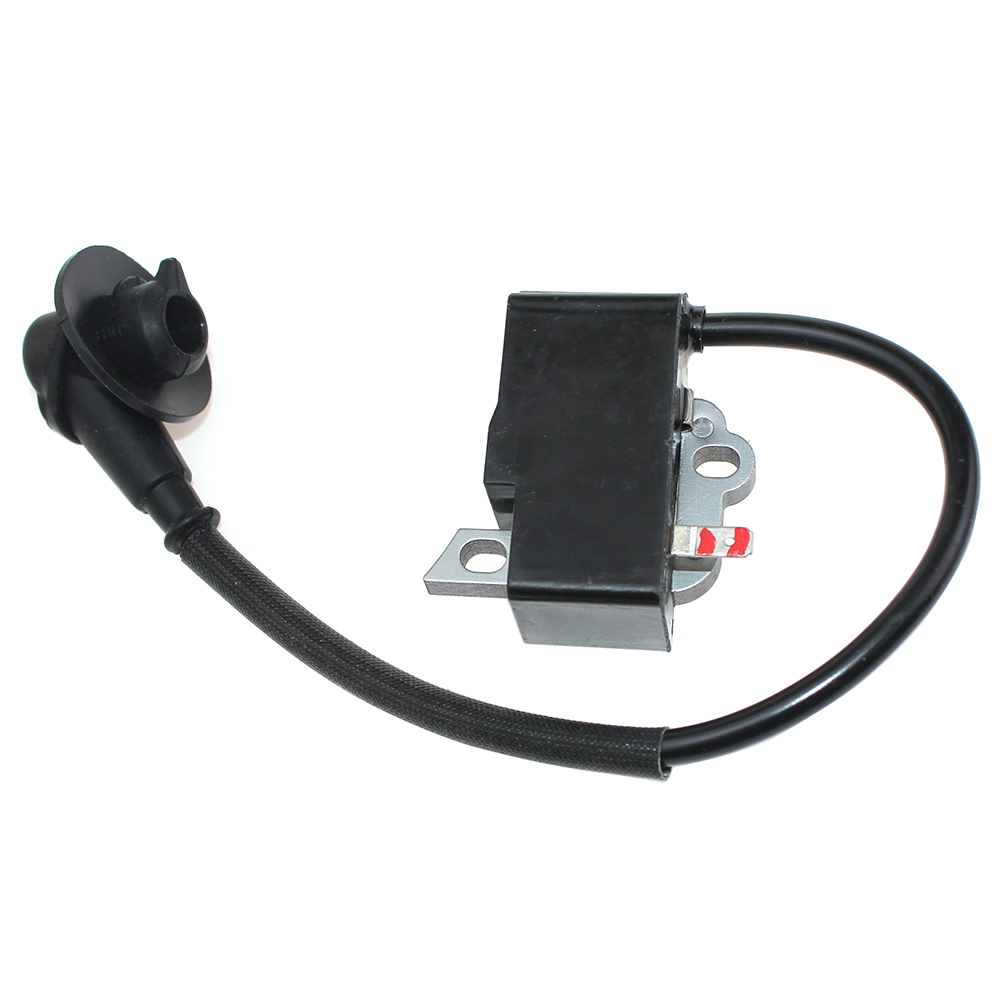

Ignition Coil Replacement Instructions for Models MS780, MS780R, MS880, MS880RZ, MS880Z, 1124 400 1302

Tools Required:

• Socket set (including 8mm and 10mm sockets)
• Ratchet wrench
• Screwdriver set (flat-head and Phillips)
  -Pliers
  -Torque wrench
  -Clean cloth
• Safety gloves and goggles

Installation Steps:

1. Preparation:

   • Make sure the engine is turned off and cool to prevent any injuries.
   • Disconnect the spark plug wires from the ignition coil.
   • Disconnect the battery to avoid any electrical hazards.

2. Accessing the Ignition Coil:

   • Remove any covers that may be obstructing access to the ignition coil using the appropriate screwdriver or socket.
   • Keep the screws and components in a safe place for reassembly.

3. Removing the Old Ignition Coil:

   • Using the ratchet and socket, remove the bolts securing the old ignition coil.
   • Carefully lift the old ignition coil out of its housing.
   • If necessary, use pliers to gently disconnect any clips or connectors.

4. Installing the New Ignition Coil:

   • Position the new ignition coil in the same location as the old one.
   • Secure it in place with the bolts, tightening them to the manufacturer’s specifications using a torque wrench.

5. Reconnecting Components:

   • Reattach any clips or connectors that were removed previously.
   • Connect the spark plug wires back to the ignition coil.

6. Reassembly:

   • Replace any covers that were removed, securing them with screws.
   • Reconnect the battery.

7. Testing:

   • Start the engine to ensure the new ignition coil is functioning correctly.
   • Monitor the engine performance; you should notice improved starting and overall efficiency.

Safety Precautions:

• Always wear safety gloves and goggles while handling engine components.
• Make sure the area is well-ventilated during the installation process.

By following these steps, you will successfully replace the ignition coil and enhance the performance of your equipment. Enjoy your improved operation!
