Installation Instructions for Flight Control Damping Plate Controller Board Vibration Isolation Kit

Product Overview

This vibration isolation kit is specifically designed for APM 2.5, 2.6, KK, MWC, and Pixhawk flight control systems. It ensures stability and performance while flying.

Tools Needed

Before beginning the installation, please ensure you have the following tools prepared:

1. Screwdriver Set

   • Phillips and flathead screwdrivers

2. Hex Wrench Set

   • To secure the damping plates and accessories

3. Scissors or Cutting Tool

   • To trim any excess material if necessary

4. Measuring Tape or Ruler

   • For measuring dimensions and ensuring proper alignment

5. Heat Shrink Tubing (Optional)

   • For securing any loose cables

Installation Steps

1. Preparation

   • Ensure your flight control system is powered off.
   • Gather all required tools and components from the kit.

2. Remove Existing Mounting

   • Carefully detach the existing flight controller from its current mounting surface.

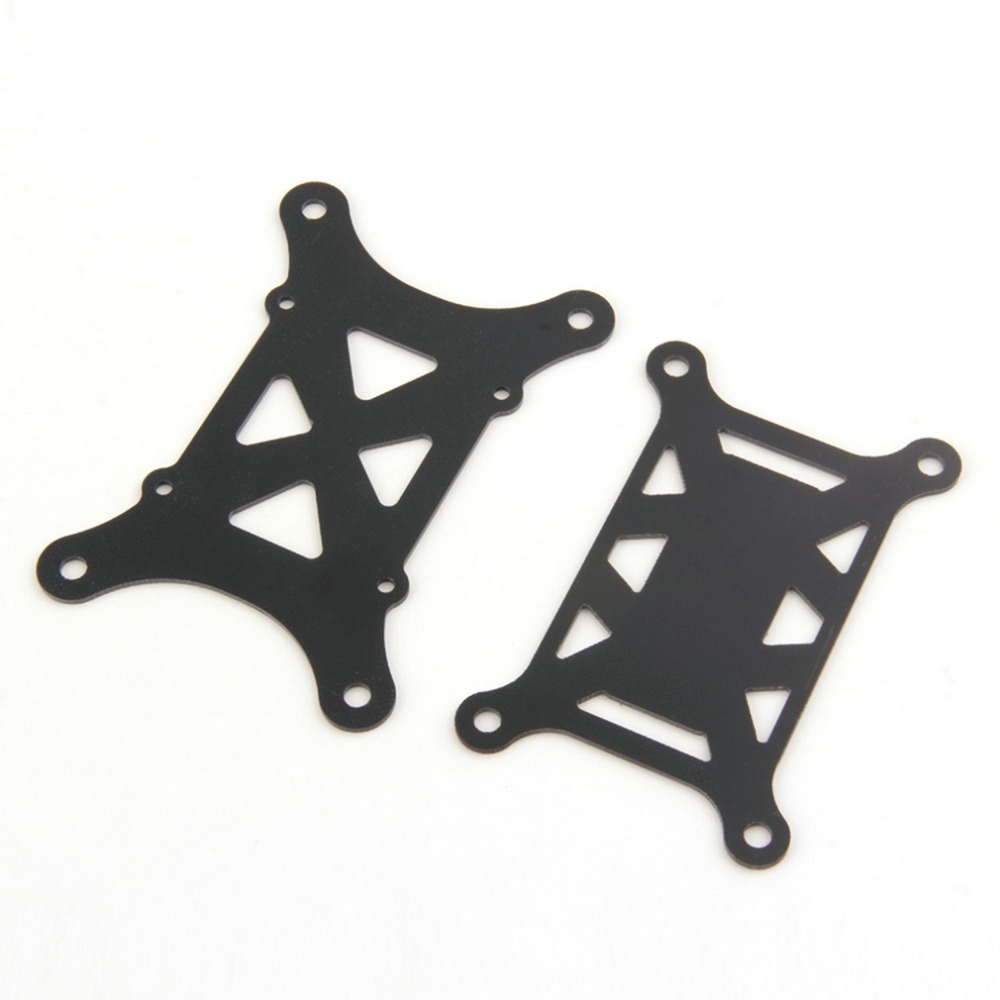

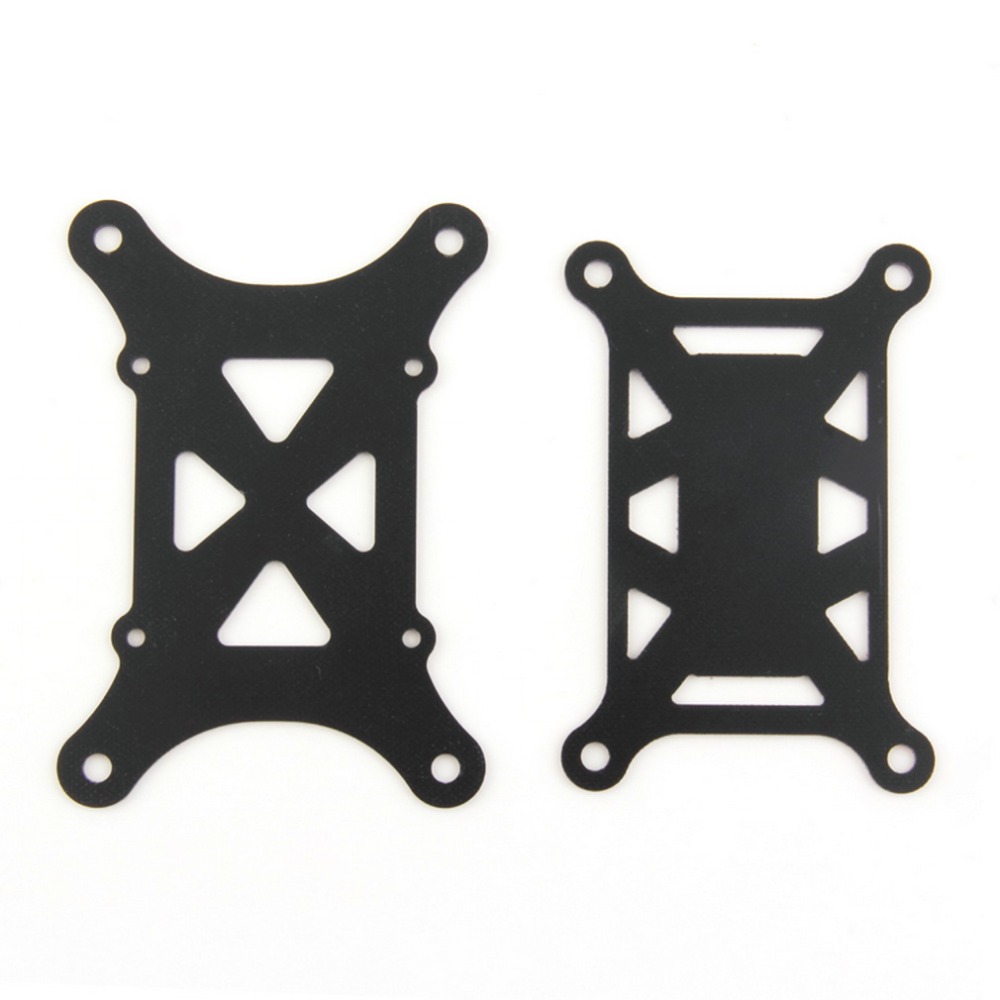

3. Install Damping Plate
   -Align the damping plate with the mounting holes on your drone's chassis.

   • Use screws and hex wrenches to secure the damping plate firmly.

4. Attach the Flight Controller

   • Place the flight controller onto the damping plate.
   • Use the provided screws to fasten the flight controller securely.

5. Check for Vibration Isolation

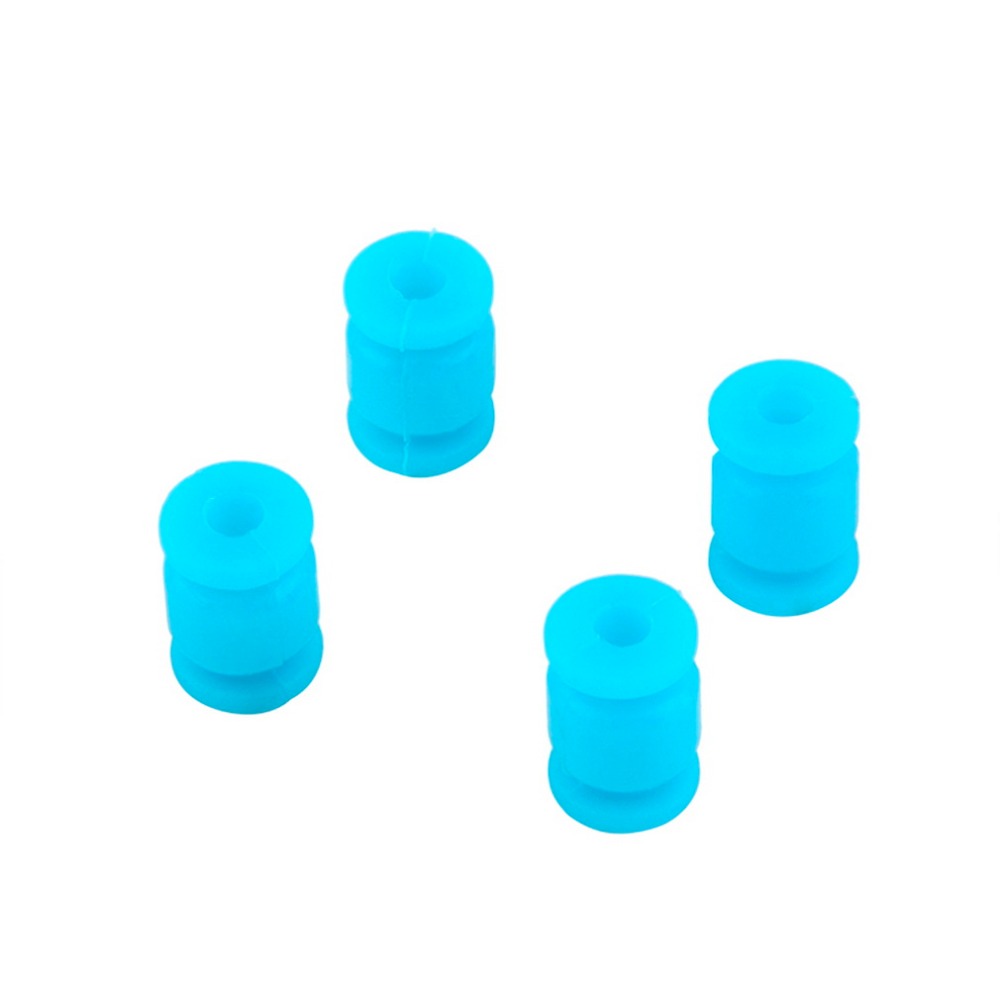

   • Ensure that the damping materials are in place and that the flight controller is well-cushioned.

6. Reassemble Any Other Components

   • If any other components were detached, carefully reattach them.

7. Final Check

   • Inspect all connections and ensure everything is secure.
   • Double-check for any loose wiring and tidy up as necessary.

8. Power On and Test

   • Power on your flight control system and perform a test flight to confirm that the vibration isolation system is functioning effectively.

Conclusion

With this installation, you will benefit from improved stability and control during your flights. Enjoy your enhanced flying experience with reduced vibration! If you encounter any issues during installation, please consult the product manual or contact customer support for assistance.
