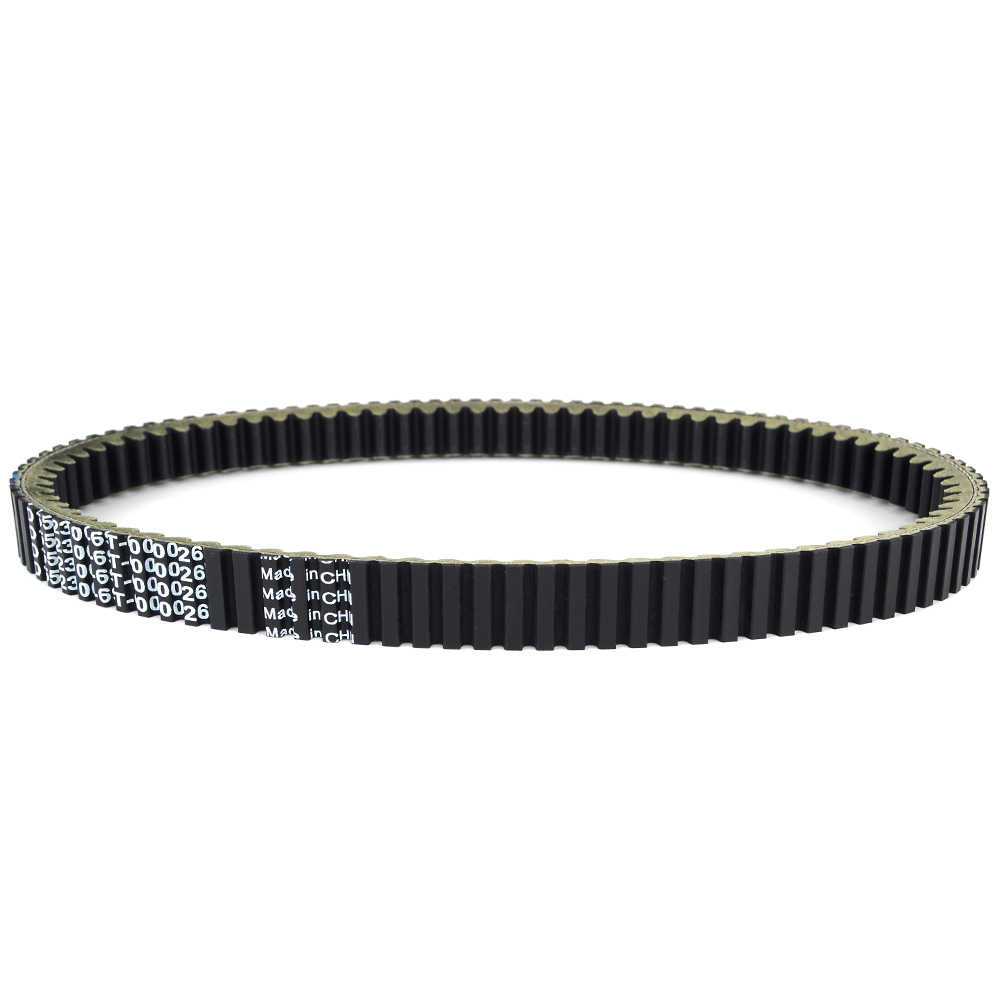

Installation Instructions for Drive Belt Compatible with Urban Elite 350 and Quadro 3D

Tools Required:

-Socket wrench set

• Screwdriver set (both flathead and Phillips)
  -Pliers
  -Torque wrench
• Work gloves
• Safety goggles
  -Clean rag or cloth
• Jack and jack stands (if necessary for vehicle elevation)

Step-by-Step Installation Guide:

1. Preparation

   • Ensure the vehicle is parked on a flat, stable surface.
   • Turn off the engine and allow it to cool down.
   • Disconnect the battery to prevent any electrical accidents during the installation.

2. Elevate the Vehicle

   • If needed, use a jack to lift the vehicle and secure it with jack stands for safe access.

3. Remove the Old Drive Belt

   • Locate the existing drive belt.
   • Use the socket wrench to remove any components blocking access to the drive belt.
   • Carefully note the routing of the old belt to ensure correct installation of the new one.
   • Use pliers to release tension on the belt tensioner and slide off the old belt.

4. Install the New Drive Belt

   • Referencing your notes or images from the old installation, thread the new drive belt into place.
   • Ensure it is properly seated within all the pulleys.
   • Release the tensioner to apply tension to the new belt.

5. Reassemble Any Removed Components

   • Reattach any components that were removed to access the drive belt.
   • Make sure all screws and bolts are tightened to the manufacturer's specifications.

6. Reconnect the Battery

   • Once everything is reassembled, reconnect the vehicle's battery.

7. Test the Installation

   • Start the engine and listen for any unusual noises.
   • Observe the performance of the drive belt in action, ensuring it operates smoothly.

8. Final Check

   • After a short drive, recheck the tension and alignment of the new drive belt for optimal performance.

Important Notes:

• Always wear safety goggles and gloves during the installation process to protect yourself.
• If you encounter any difficulties, consult a professional mechanic for assistance.

With this simple guide, you can easily replace the drive belt for your Urban Elite 350 or Quadro 3D, restoring optimal performance to your vehicle!
