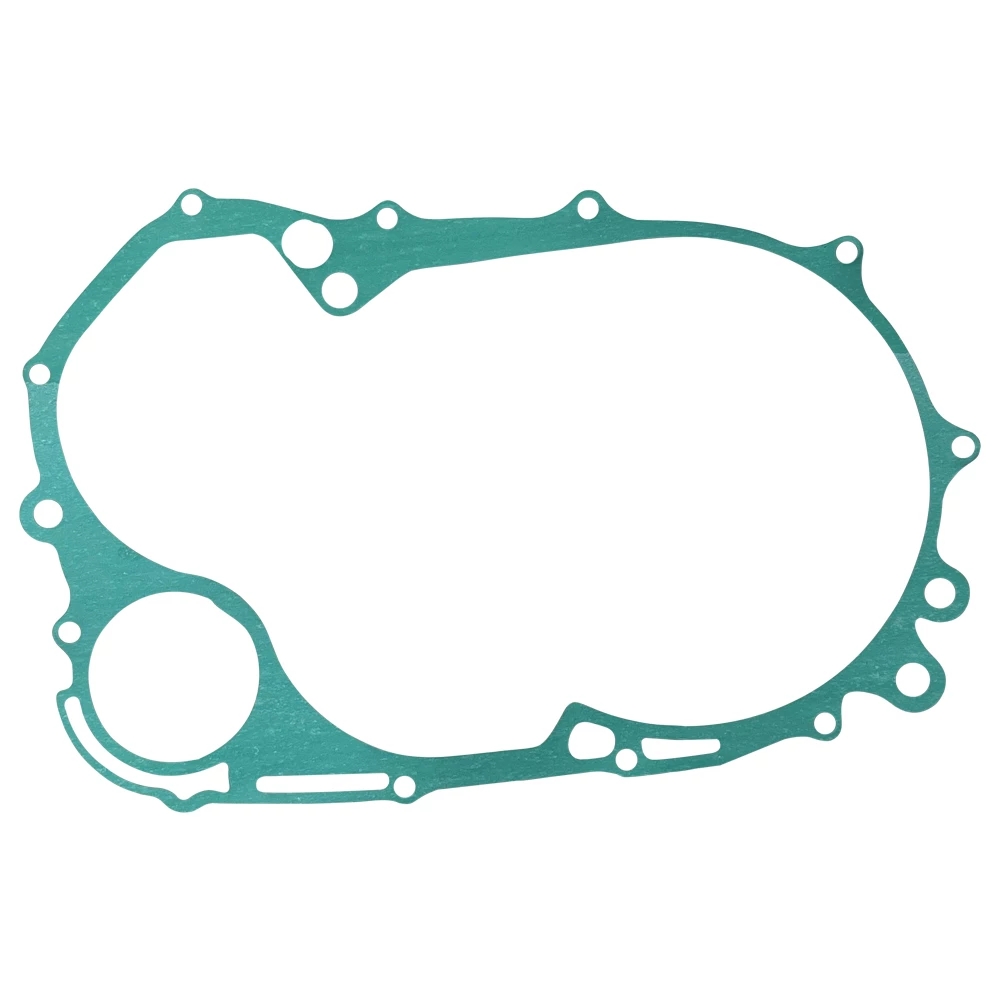

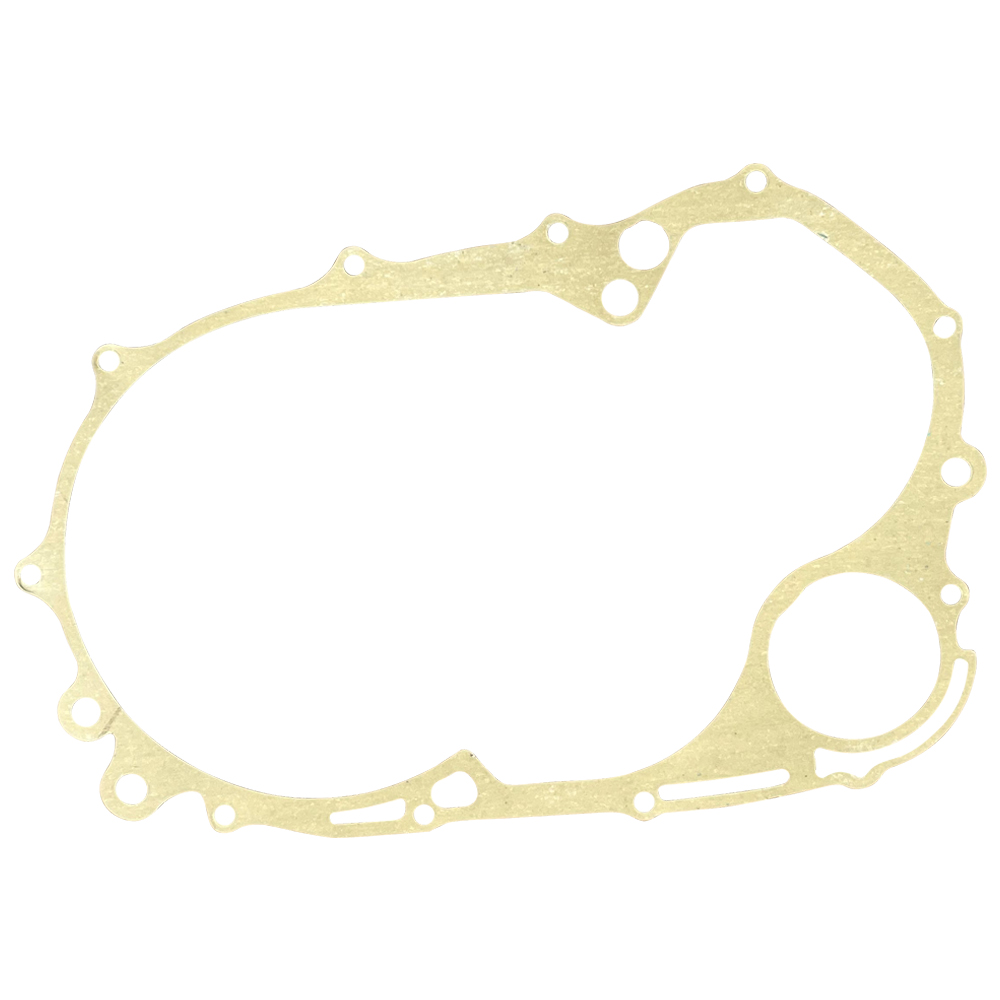

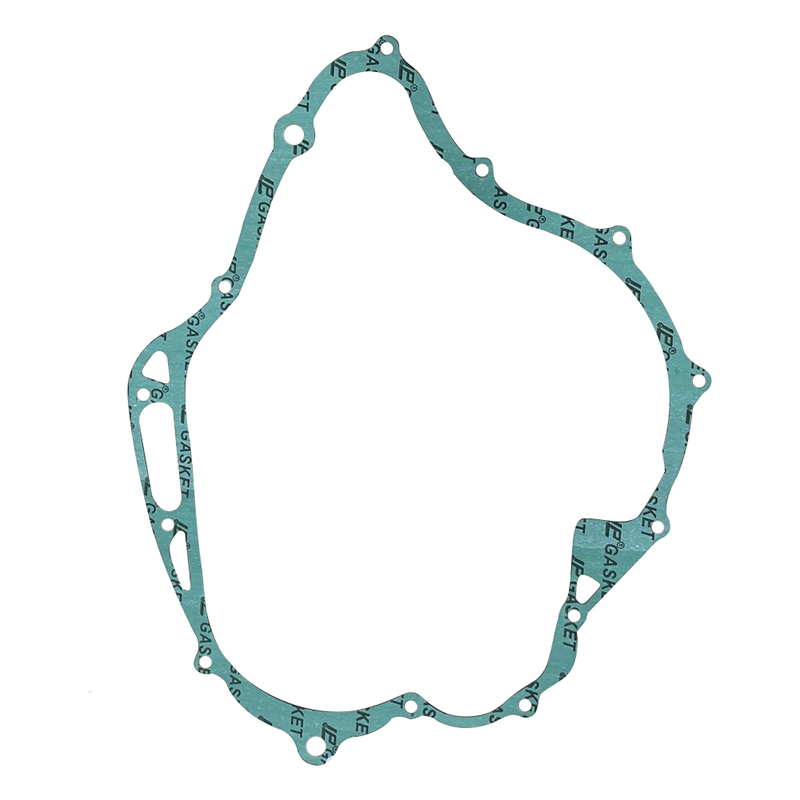

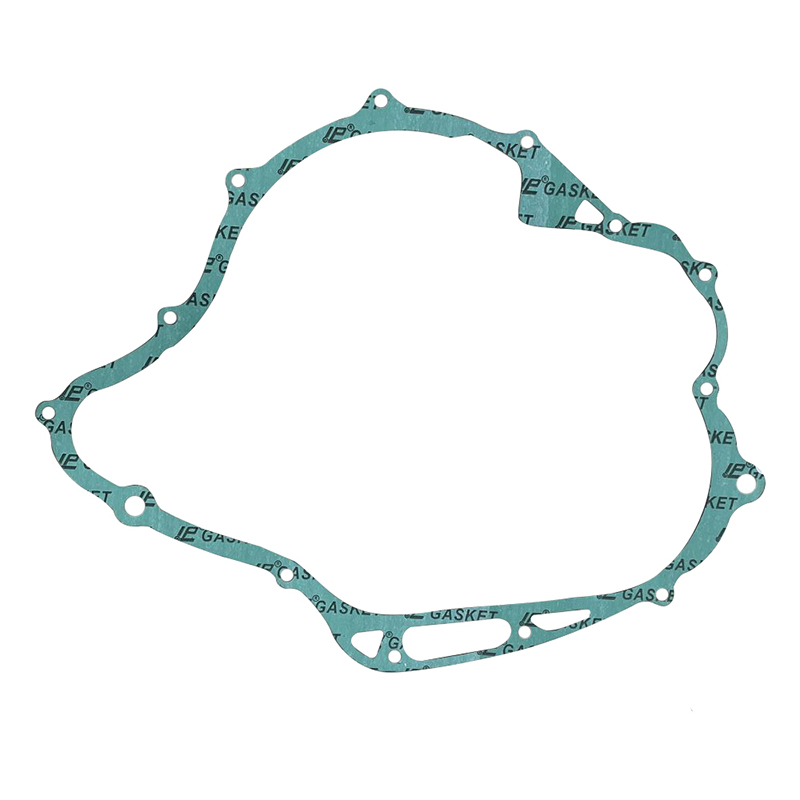

Product Installation Instructions for Crankcase Cover Gasket

Compatibility:
This Crankcase Cover Gasket is specifically designed for XV920, XV700, XV1100, XV1000, and XV750 models. It is also compatible with VIRAGO 700, 750, 1000, and 1100 motorcycles.

Required Tools:
To ensure an efficient installation process, please gather the following tools:

1. Socket wrench set
2. Torque wrench
3. Screwdriver set (flathead and Phillips)
4. Pliers
   5.Clean cloth or paper towels
5. Engine oil (for lubrication)
6. Gasket scraper or sealant remover (if necessary)
7. Protective gloves
8. Safety glasses

Installation Steps:

1. Preparation:

   • Make sure the motorcycle is on a stable surface and secure it using a motorcycle stand if necessary.
   • Ensure the engine is cool before starting the installation.

2. Remove the Crankcase Cover:

   • Using the appropriate socket or wrench, carefully remove the bolts securing the crankcase cover.
   • Gently pry off the crankcase cover using a flathead screwdriver if it is stuck. Be careful not to damage the mating surfaces.

3. Clean the Surfaces:

   • Thoroughly clean the mating surfaces of the crankcase and the cover using a clean cloth or paper towels.
   • If there is any old gasket material, use a gasket scraper or sealant remover to eliminate it.

4. Apply the New Gasket:

   • Position the new Crankcase Cover Gasket on the cleaned crankcase mating surface. Ensure it is aligned correctly.

5. Reattach the Crankcase Cover:

   • Place the crankcase cover back into position, aligning it with the gasket.
   • Hand-tighten the bolts and then use a torque wrench to tighten them to the manufacturer's specifications.

6. Final Checks:

   • Double-check that all bolts are securely tightened.
   • Wipe away any excess oil that may have spilled during the installation.

7. Test Ride:

   • Start the motorcycle and allow it to idle for a few minutes. Check for any leaks around the crankcase cover.
   • Take it for a short test ride to ensure everything is functioning correctly.

Notes:

• Regularly inspect the gasket for any signs of wear or leaks to maintain optimal engine performance.
• Always follow the manufacturer's specifications for torque settings and maintenance.

This Crankcase Cover Gasket is designed for durability and excellent performance, ensuring your VIRAGO motorcycle is well-protected and ready for both city riding and long-distance trips.
