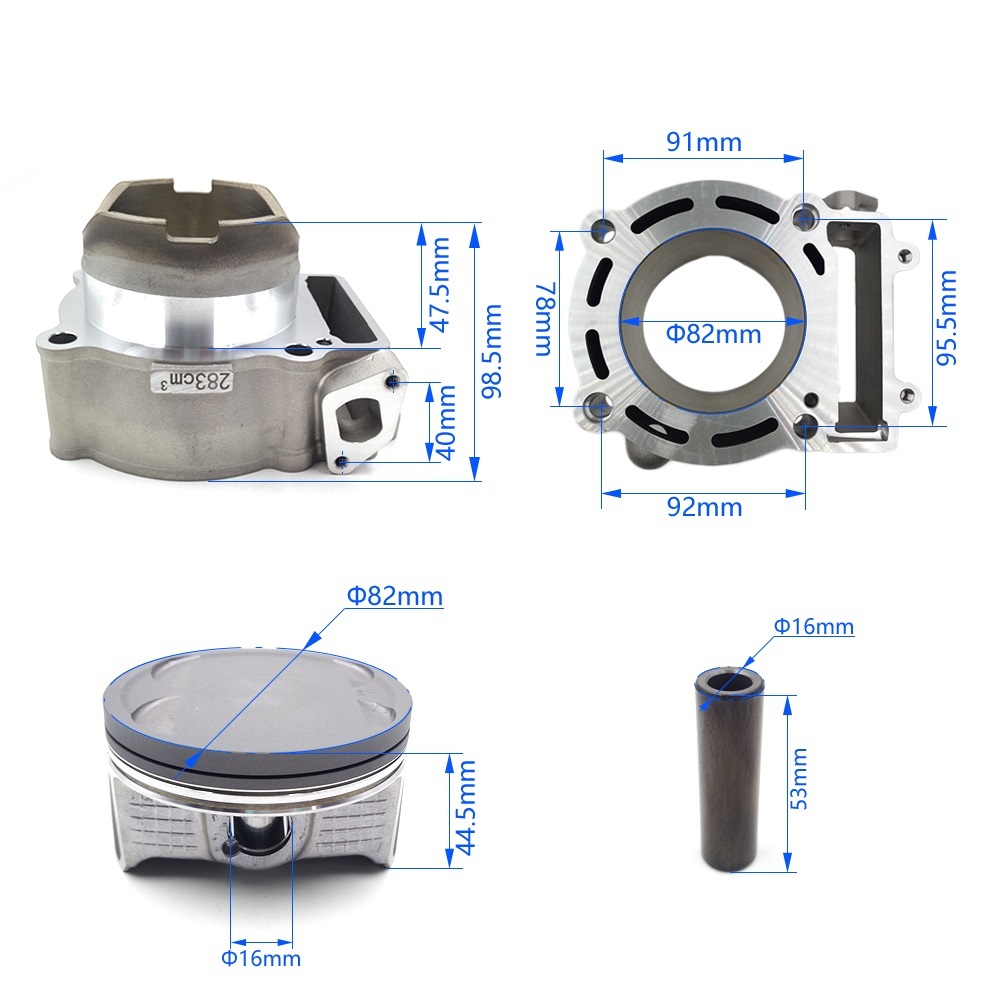

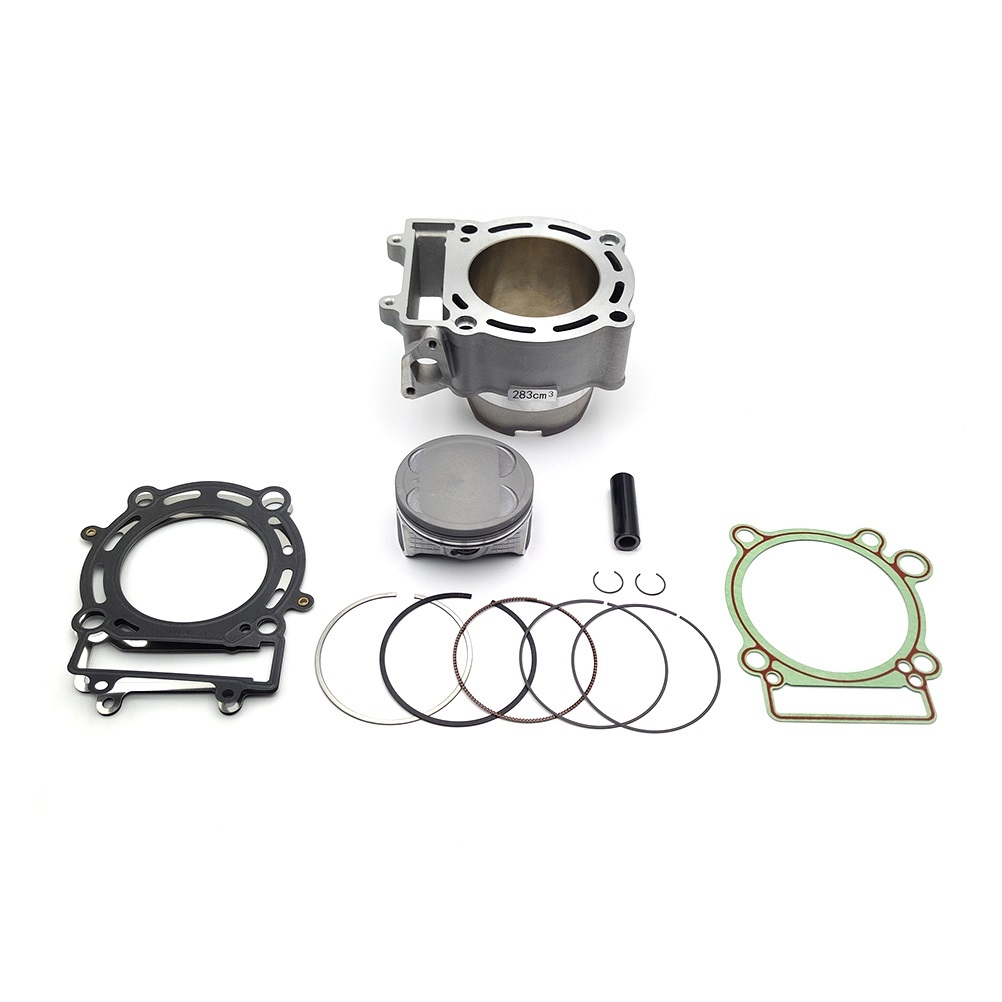

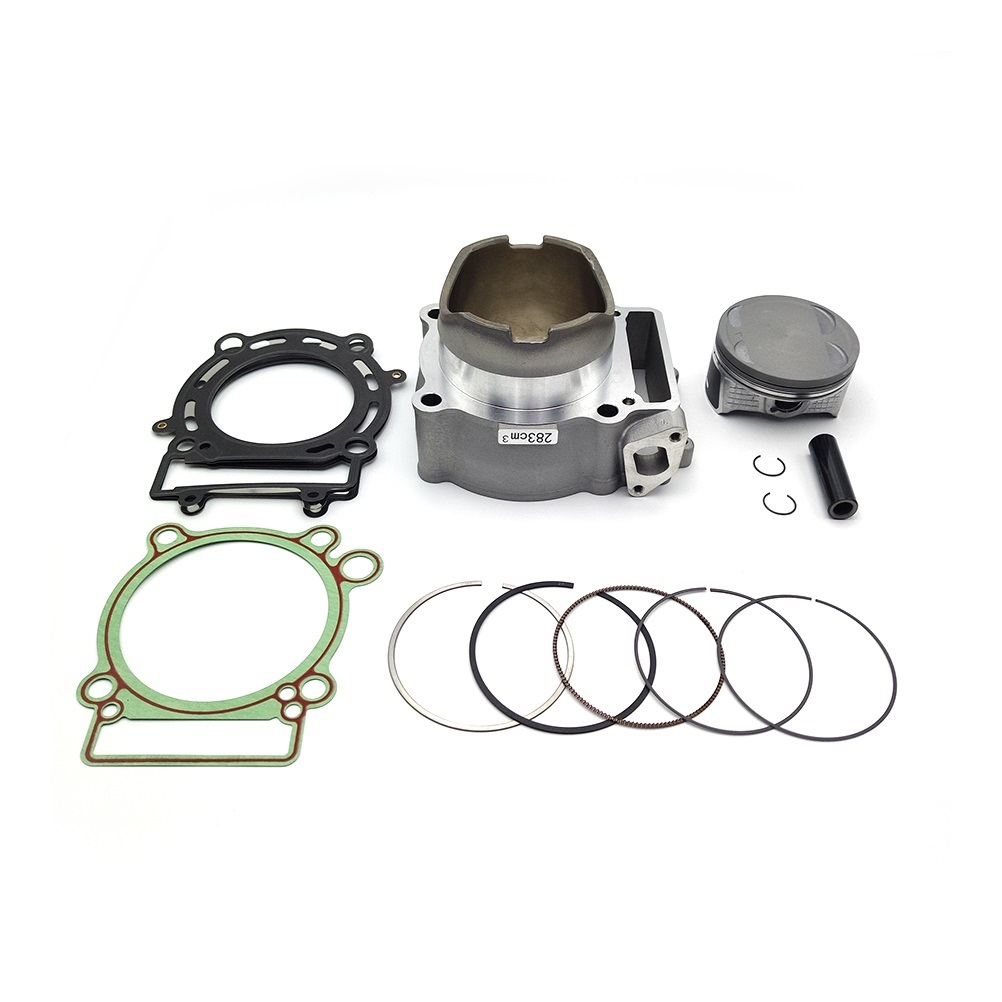

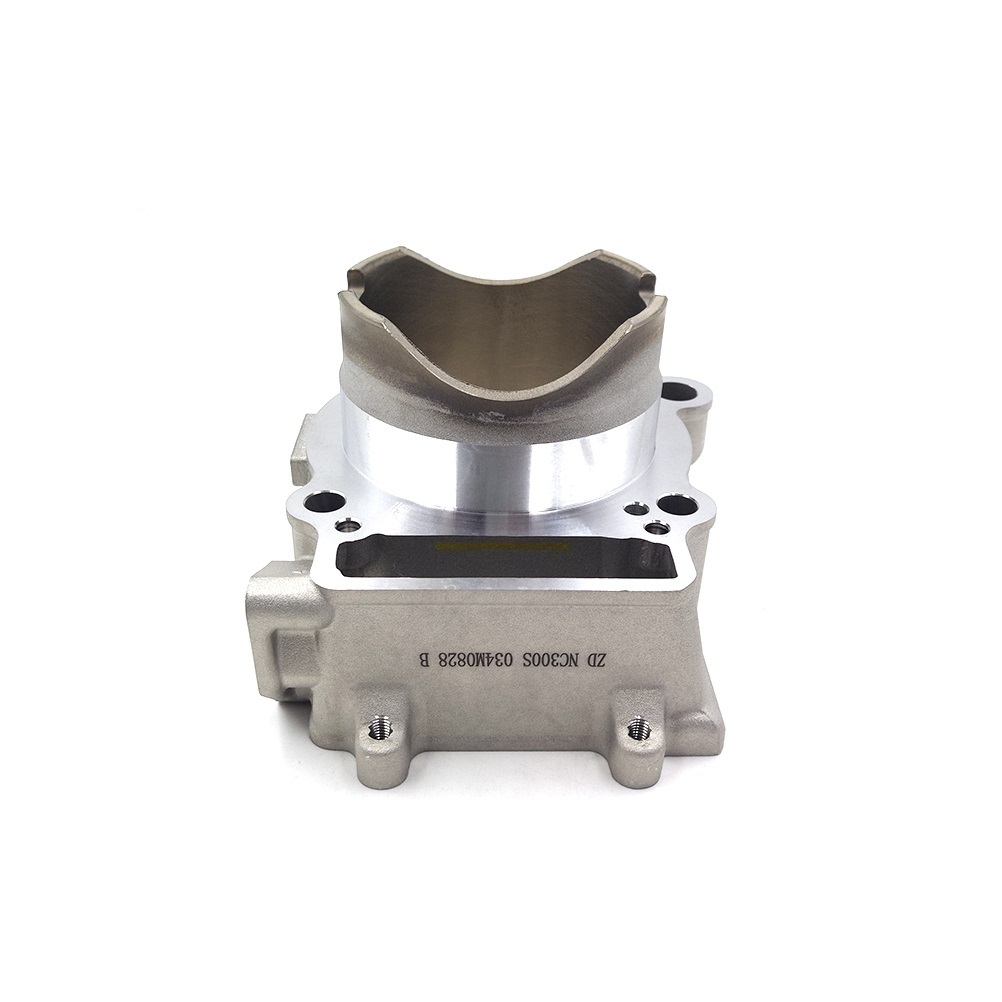

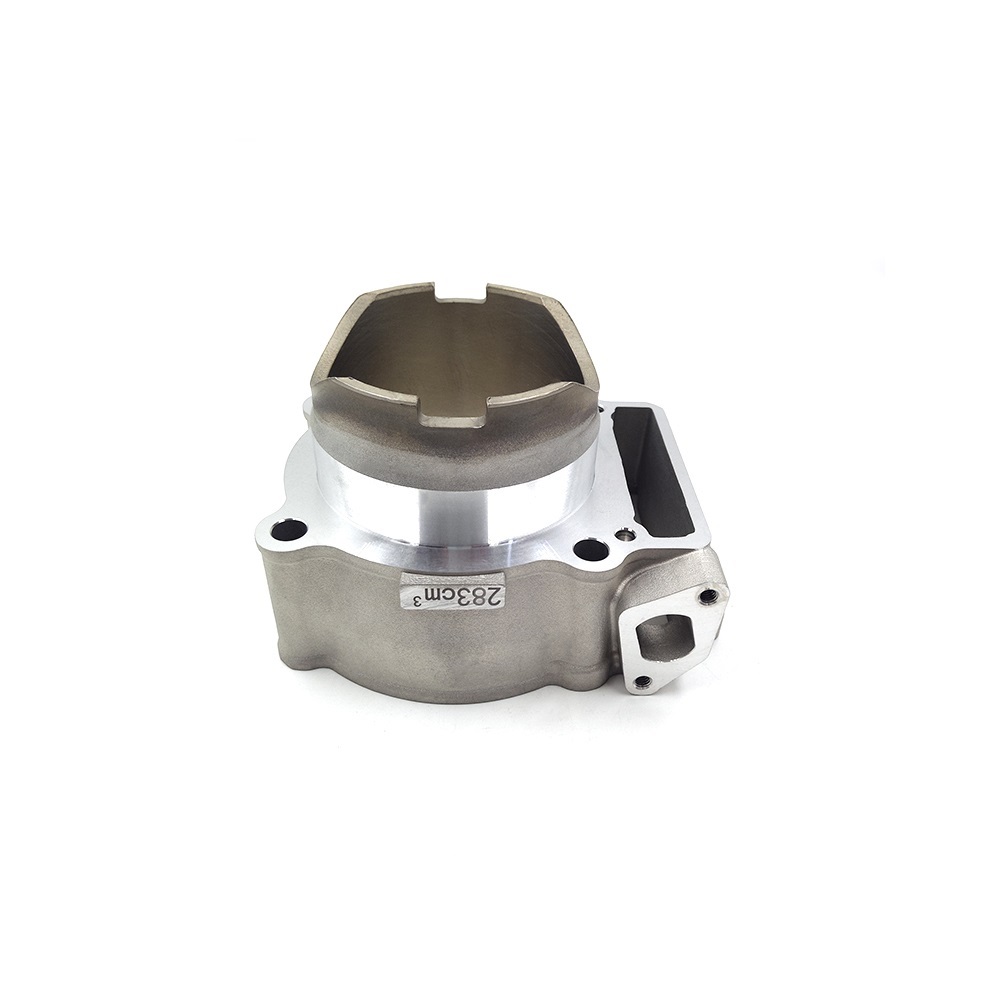

Installation Instructions for 300cc Dual Camshaft Motorcycle Cylinder Gasket Engine Air Block Piston Pin Ring Set

Tools Required:

1. Socket Wrench Set – For loosening and tightening bolts.
2. Torque Wrench – To ensure bolts are tightened to the manufacturer's specifications.
3. Allen Wrench Set – For specific bolts that require hex key fittings.
4. Screwdriver Set – For removing and attaching screws.
5. Piston Ring Compressor – Essential for installing the piston rings into the cylinder.
6. Gasket Scraper or Putty Knife – For cleaning the surfaces of old gasket material.
7. Shop Towels/Rags – To clean the engine area and wipe off any excess oil or debris.
8. Oil Filter Wrench – If you need to remove or change the oil filter during installation.
9. Gloves – To protect your hands during the installation process.
10. Safety Goggles – To ensure eye protection while working on the engine.

Installation Steps:

1. Prepare the Motorcycle:

   • Ensure the motorcycle is on a stable surface and supported securely.
   • Disconnect the battery to prevent any electrical issues during the installation.

2. Remove the Old Components:

   • Use the socket wrench and screwdriver to remove any necessary bolts or screws securing the existing cylinder head and piston.
   • Carefully remove the old cylinder gasket and piston pin to avoid damaging surrounding components.

3. Clean the Surfaces:

   • Use the gasket scraper to smooth the surface of the engine block where the new gasket will sit.
   • Make sure that all old gasket material is removed to prevent leaks.

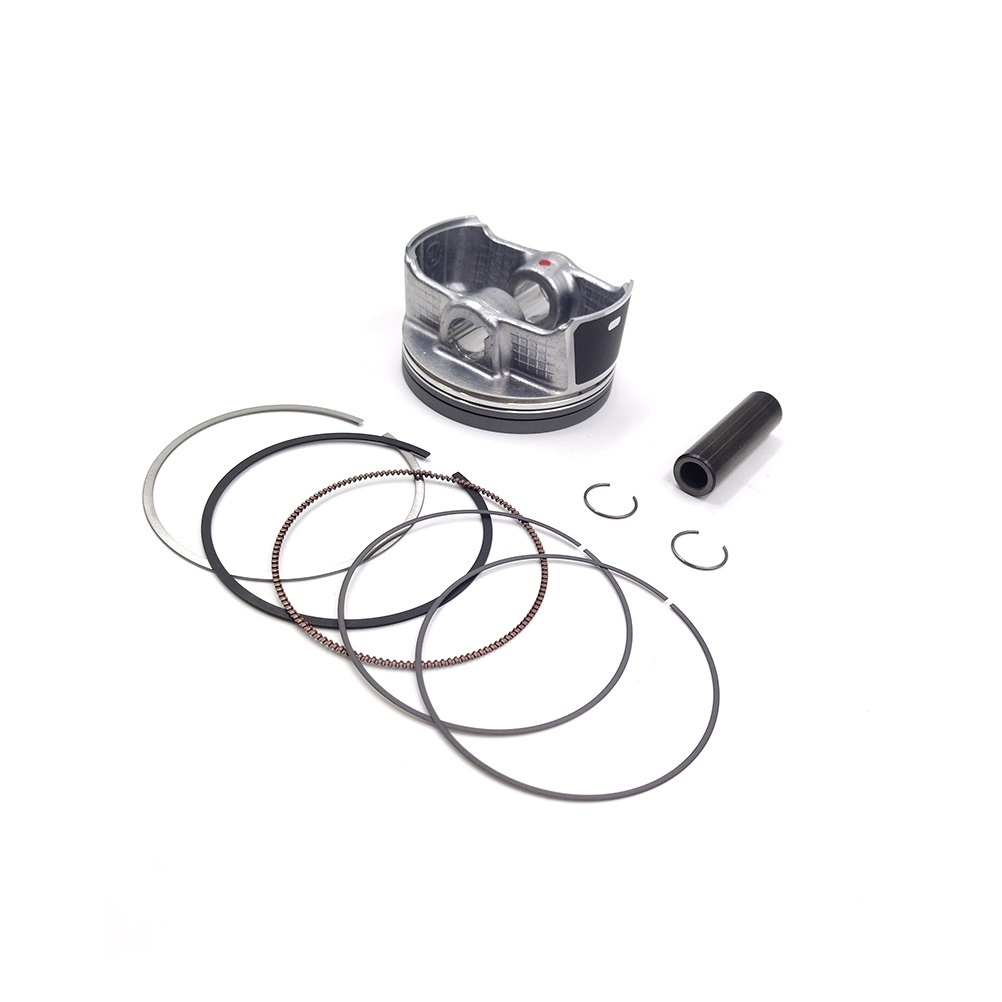

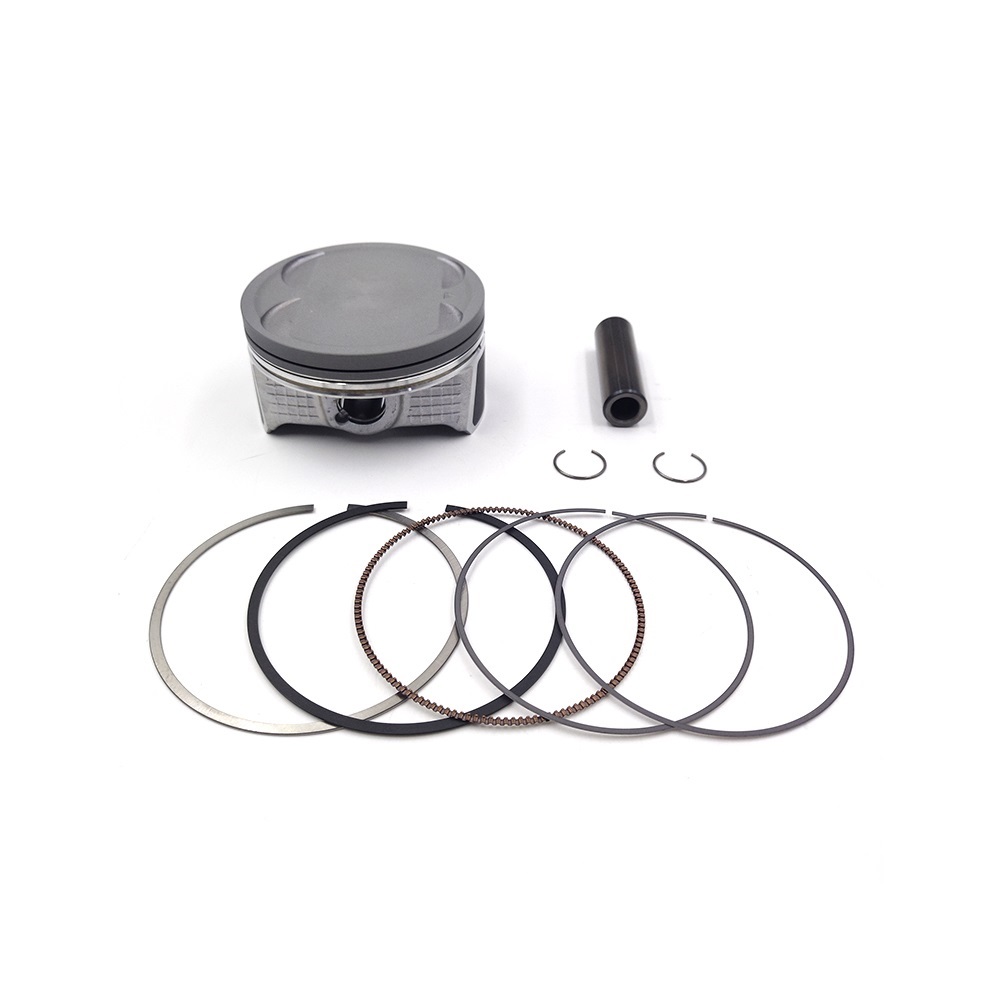

4. Install the New Piston:

   • Use the piston ring compressor to compress the piston rings and carefully insert the piston into the cylinder.
   • Make sure it is positioned correctly before releasing the compressor.

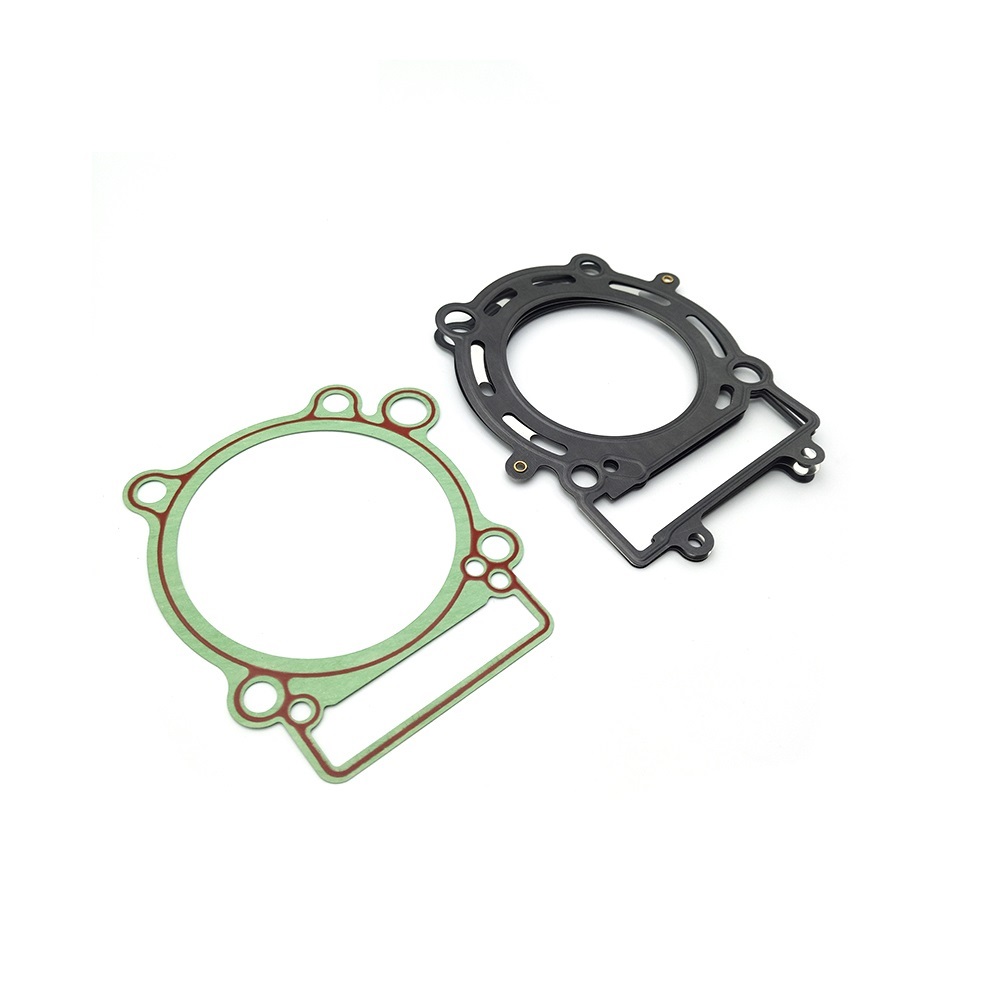

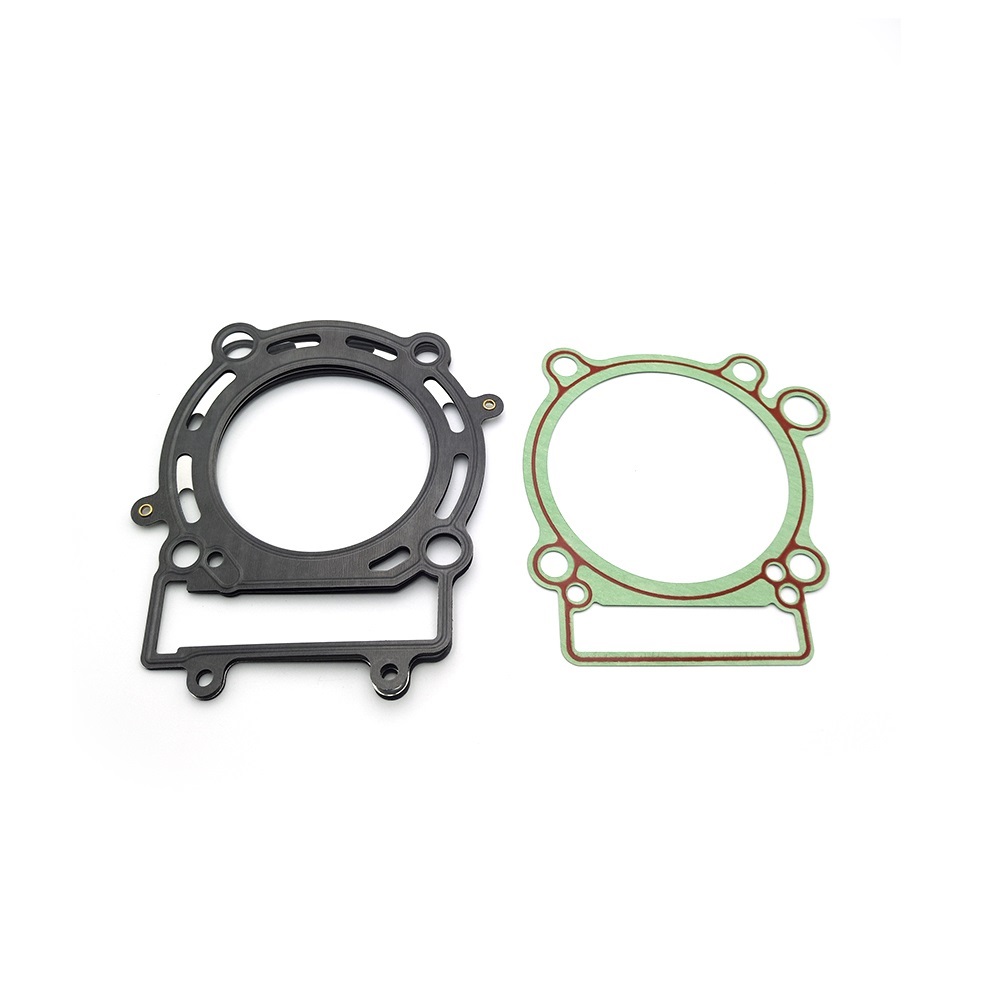

5. Attach the Cylinder Gasket:

   • Place the new cylinder gasket onto the engine block, ensuring it is aligned properly with the bolt holes and other surfaces.

6. Reattach the Cylinder Head:

   • Position the cylinder head onto the gasket and align it carefully.
   • Use the torque wrench to tighten all bolts to the manufacturer’s specified torque settings.

7. Reconnect Components:

   • Reattach any hoses, wires, and other components that were removed during the disassembly process.
   • Ensure everything is secured tightly.

8. Final Checks:

   • Inspect all connections and ensure no tools are left in the engine area.
   • Reconnect the battery.

9. Test Your Motorcycle:

   • Start the engine and allow it to idle for a few minutes.
   • Monitor for any leaks and check performance.

By following these installation instructions and using the listed tools, you will ensure a smooth and efficient installation process for your 300cc Dual Camshaft Motorcycle Cylinder Gasket Engine Air Block Piston Pin Ring Set. Enjoy your ride!
