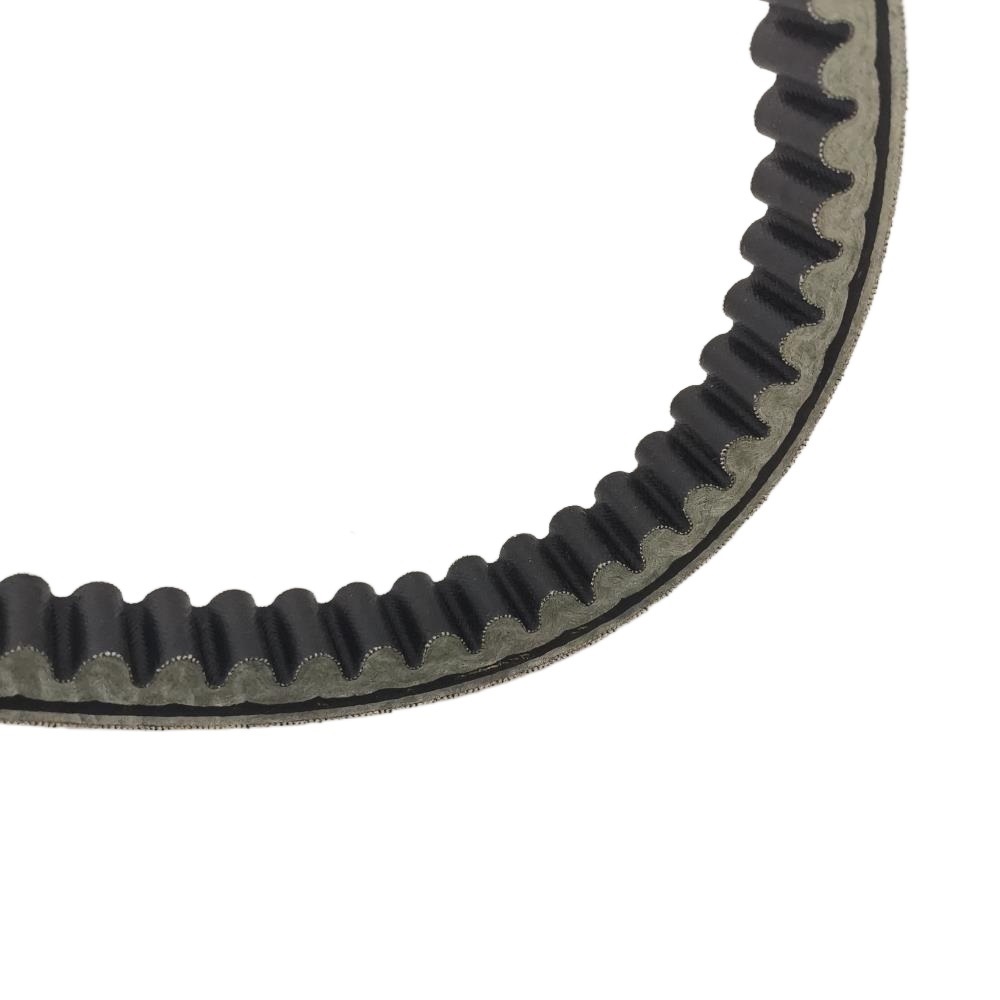

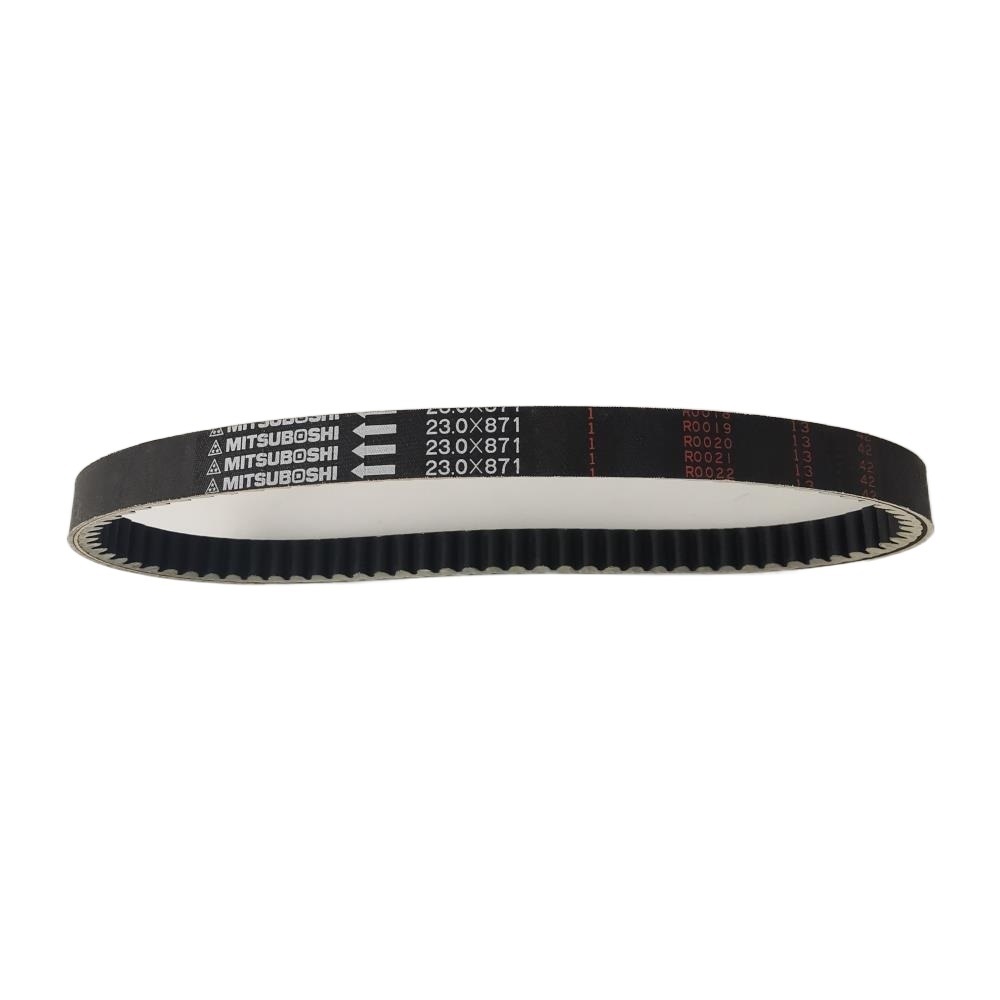

Product Installation Instructions for CVT Drive Belt 23.0X871

Compatibility:
This CVT Drive Belt is designed for various scooters and mopeds, including QUAD, Majesty YP250, LINHAI VOG 260, 300, and 400 models.

Installation Requirements:

Tools Needed:

1. Socket Wrench Set - To remove the necessary bolts and nuts.
2. Screwdriver Set - A flathead and Phillips screwdriver may be required for various components.
3. Torque Wrench - To ensure all bolts are tightened to the specified torque.
4. Pliers - For gripping and manipulating small parts or clamps.
5. Crescent Wrench - Useful for any additional adjusting needed.
6. Safety Goggles - To protect your eyes during installation.
7. Gloves - To keep your hands safe and clean.

Installation Steps:

1. Preparation:

   • Ensure the scooter or moped is on a flat surface and turn off the engine. Allow it to cool if it has just been running.

2. Remove the Cover:

   • Use the socket wrench to unscrew and remove the engine cover or transmission cover that protects the CVT system.

3. Remove the Old Drive Belt:

   • Carefully detach the old drive belt from the pulleys. You may need to move the variator or clutch to relieve tension.

4. Inspect Components:

   • Check the variator, clutch, and other components for wear or damage and replace any parts if necessary.

5. Install the New CVT Drive Belt:

   • Position the new CVT Drive Belt onto the primary and secondary pulleys, ensuring it is seated correctly.

6. Reassemble:

   • Replace and secure the cover back onto the engine or transmission with the socket wrench.

7. Final Check:

   • Ensure all tools are removed from the vicinity of the engine, and all bolts are tightened to their specified torque.

8. Test Drive:

   • Start the scooter or moped to ensure everything operates smoothly. Take it for a short test ride to check for proper performance.

Installation Tips:

• Always refer to your vehicle's manual for specific instructions and torque specifications.
• Keep the work area organized to avoid losing small parts.
• If you encounter difficulties, consider consulting a professional mechanic.

With the right tools and careful attention to detail, you can successfully install the CVT Drive Belt and enhance your riding experience!
