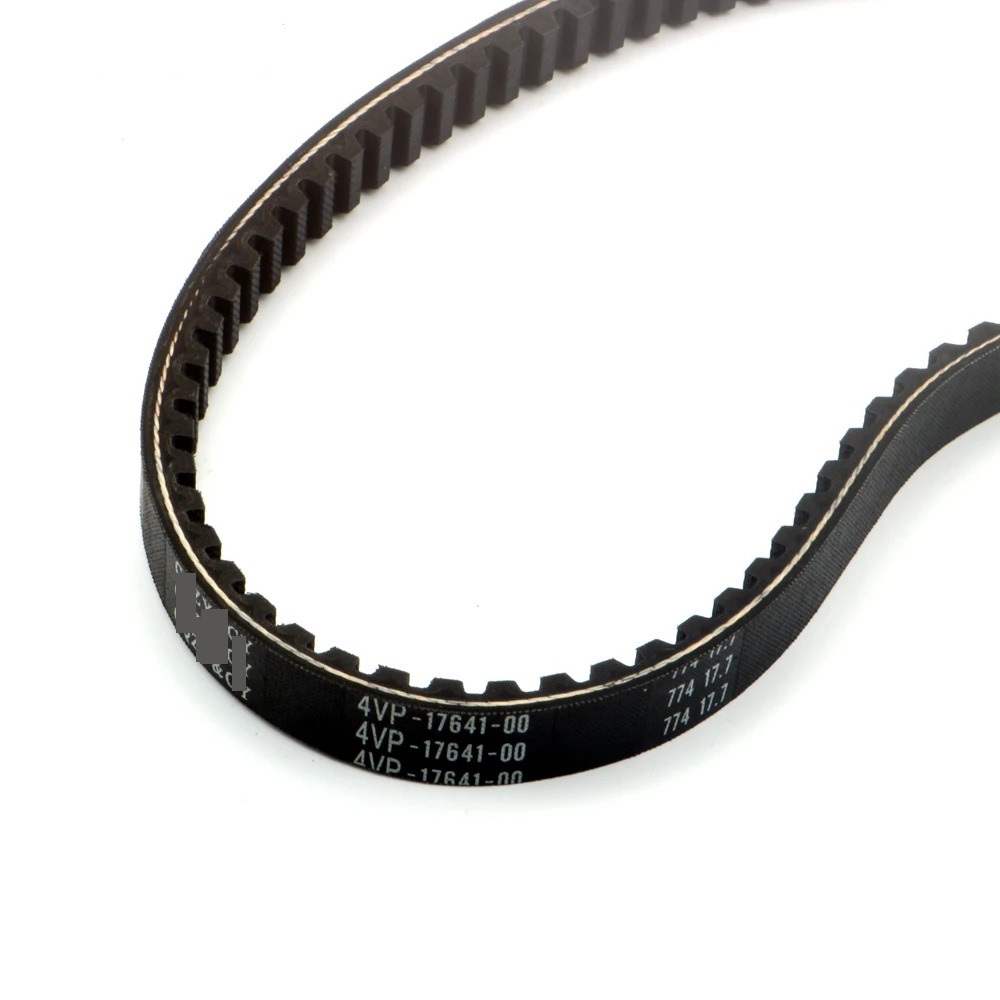

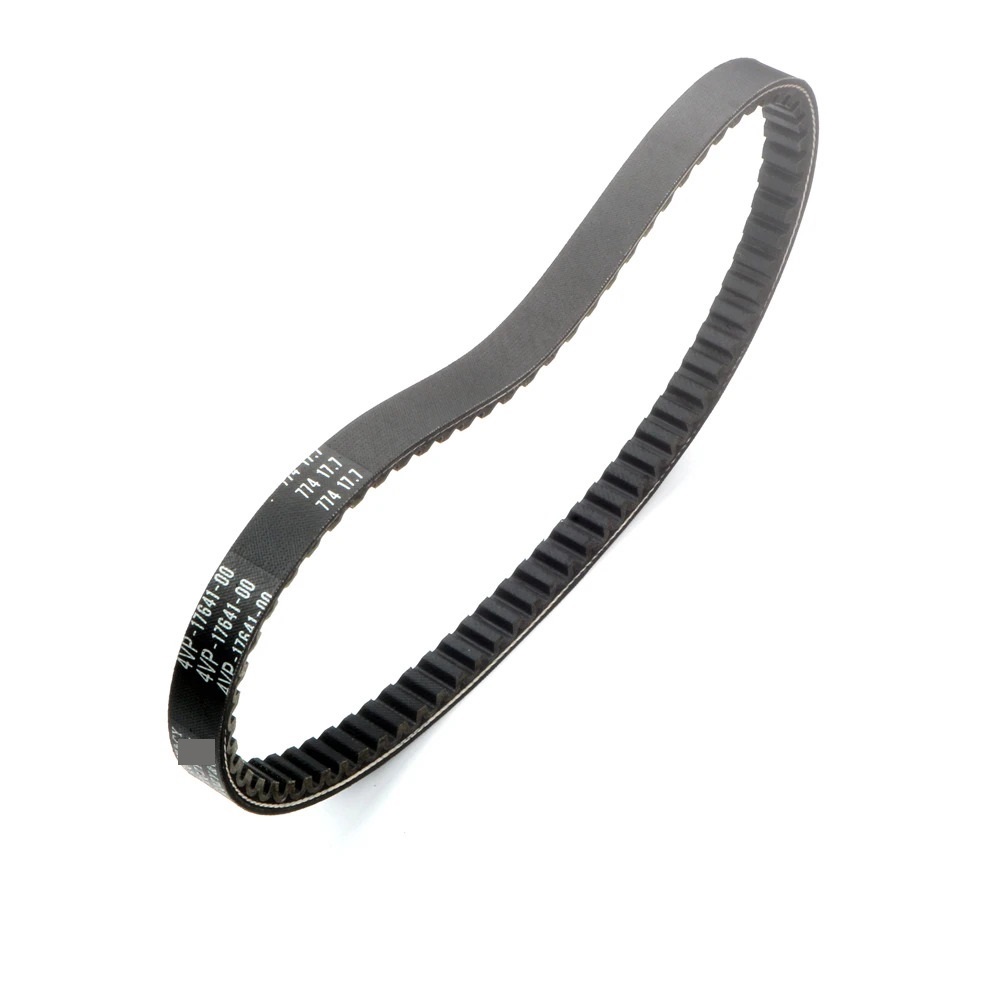

Installation Instructions for 17.7 CVT Drive Belt for 100cc 2-Stroke Scooter Engine Model 774

Tools Required:

1. Socket Set – To remove and tighten bolts.
2. Screwdriver Set – For any screws that may need to be removed.
3. Pliers – To assist in handling small components.
4. Torque Wrench – To ensure proper tightening of bolts (if specified).
5. Ratcheting Wrench – To make the process faster.
6. Belt Removal Tool (optional) – For easier removal of the old belt.
7. Cleaning Cloth – To clean any surfaces before installation.
8. Safety Gloves – To protect your hands during the installation process.

Installation Steps:

1. Preparation:

   • Park the scooter on a flat surface.
   • Turn off the engine and disconnect the battery for safety.

2. Remove the Old Belt:

   • Use the socket set to remove the cover of the CVT case.
   • Carefully take out the old CVT drive belt from the pulleys.

3. Clean the Area:

   • Wipe down the pulleys and any other surfaces with a cleaning cloth to remove dust and debris.

4. Install the New Belt:

   • Place the new 17.7 CVT drive belt onto the pulleys, ensuring it fits snugly.
   • Be sure the belt is seated correctly and is aligned properly with the pulleys.

5. Reassemble the CVT Cover:

   • Put the CVT cover back in place and secure it with the bolts using the socket set.
   • Ensure all screws are tightened properly to avoid any future issues.

6. Final Checks:

   • Reconnect the battery.
   • Start the scooter and perform a brief test to ensure the installation was successful.

7. Dispose of Old Belt:

   • Properly dispose of the old drive belt according to local regulations.

By following these instructions, you can successfully install the 17.7 CVT drive belt on your 100cc 2-stroke scooter, enhancing its performance and reliability. Enjoy your ride!
